Clamped Sight Glass

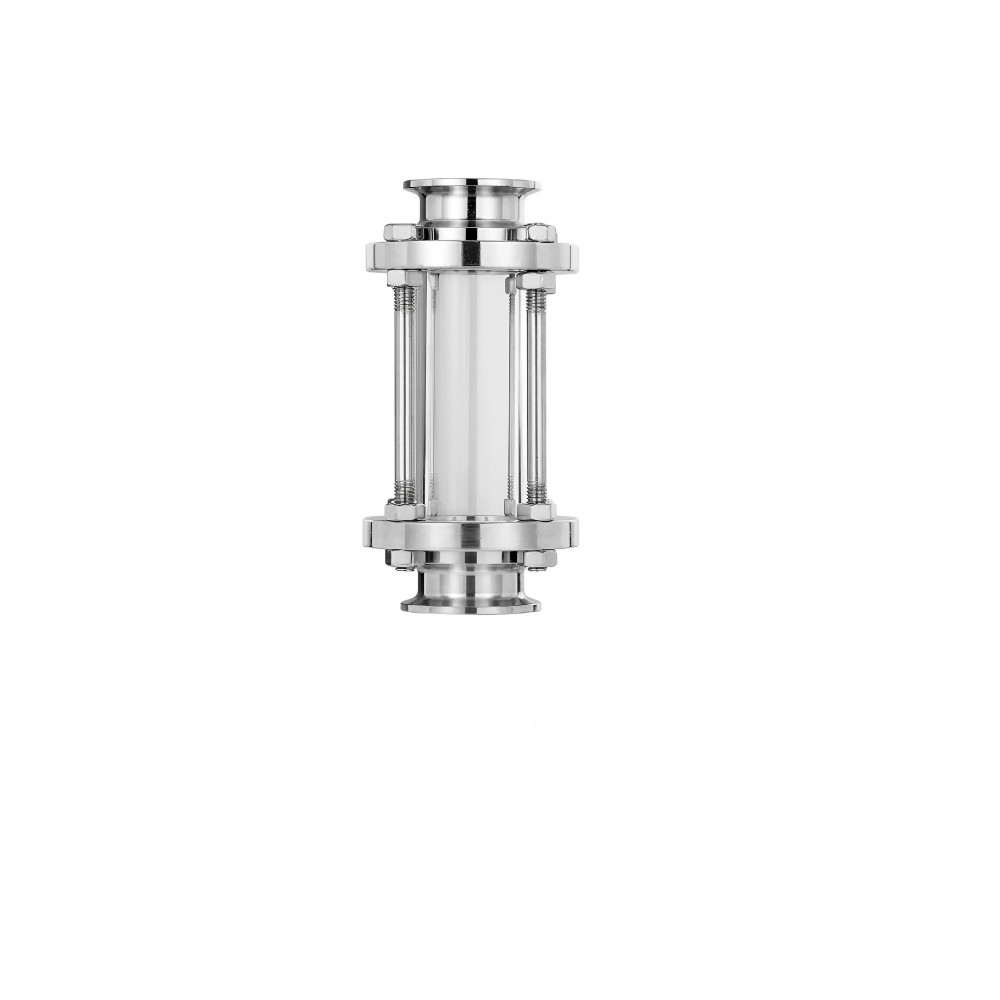

KINGMAN Sanitary Clamped Sight Glass consists of stainless steel frame and high-transparent tempered glass cylinder with outstanding pressure and impact resistance. Tri-clamp connections at both ends enable easy assembly and disassembly. It allows direct observation of internal fluid flow and liquid status for quick anomaly detection. Bolt tie rods fasten the tempered glass cylinder with safe and stable sealing. Mirror polished inside and out with smooth dead-zone-free flow path and full CIP compatibility. Widely used for fluid visual monitoring on food and pharmaceutical hygienic pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Sight Glass |
| Size Range | DN15–DN100 (approx. 1/2"–4") |
| Material | Body: 304/316L Glass:Tempered Borosilicate Glass |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon /NBR |
| Working Temperature | 120 °C |
| Max. Working Pressure | PN10 (DN15-40);PN8(DN50-100) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Tri-clamp connections on both ends eliminate welding requirements, enabling fast tool-free disassembly, convenient pipeline inspection and daily maintenance. High-transparent tempered glass cylinder features excellent pressure resistance and impact toughness, providing a full panoramic viewing field for real-time observation of internal flow status, bubbles and residual impurities. Equipped with multiple tension tie rods to deliver uniform compression force, ensuring balanced stress distribution, reliable overall sealing and stable long-term pressure resistance. Mirror-polished stainless steel housing with ultra-smooth dead-zone-free inner wall greatly reduces material adhesion, residue buildup and bacterial contamination. Fully compatible with CIP online cleaning systems, effectively flushing internal deposits to restore clear viewing and consistent hygienic performance. Simple detachable structure allows quick disassembly for internal inspection, glass cleaning and gasket replacement, lowering operational maintenance costs.
Working Principle
Sanitary Clamped Sight Glass displays internal pipeline fluid conditions directly through transparent glass cylinder. When liquid passes through glass chamber, operators can observe flow, mixing, bubbles or solid impurities. Tie rods evenly fasten stainless end caps and compress gaskets to prevent medium leakage. During pipeline CIP cleaning, flushing medium washes inner glass surface to remove deposits and maintain clear view.
Why Choose KINGMAN
7-Day Replenishment Option
Available standard sanitary sight glasses and components can be prepared in about 7 working days for replacement stock or project replenishment.
Combine More Components
Purchase sight glasses together with clamps, ferrules, valves and other sanitary fittings to simplify sourcing for one hygienic line.
Warranty Beyond Delivery
Export products include a 1-year international warranty and lifetime technical support for follow-up after the clamped sight glass reaches your site.
