Double Window Sight Glass (Four Way)

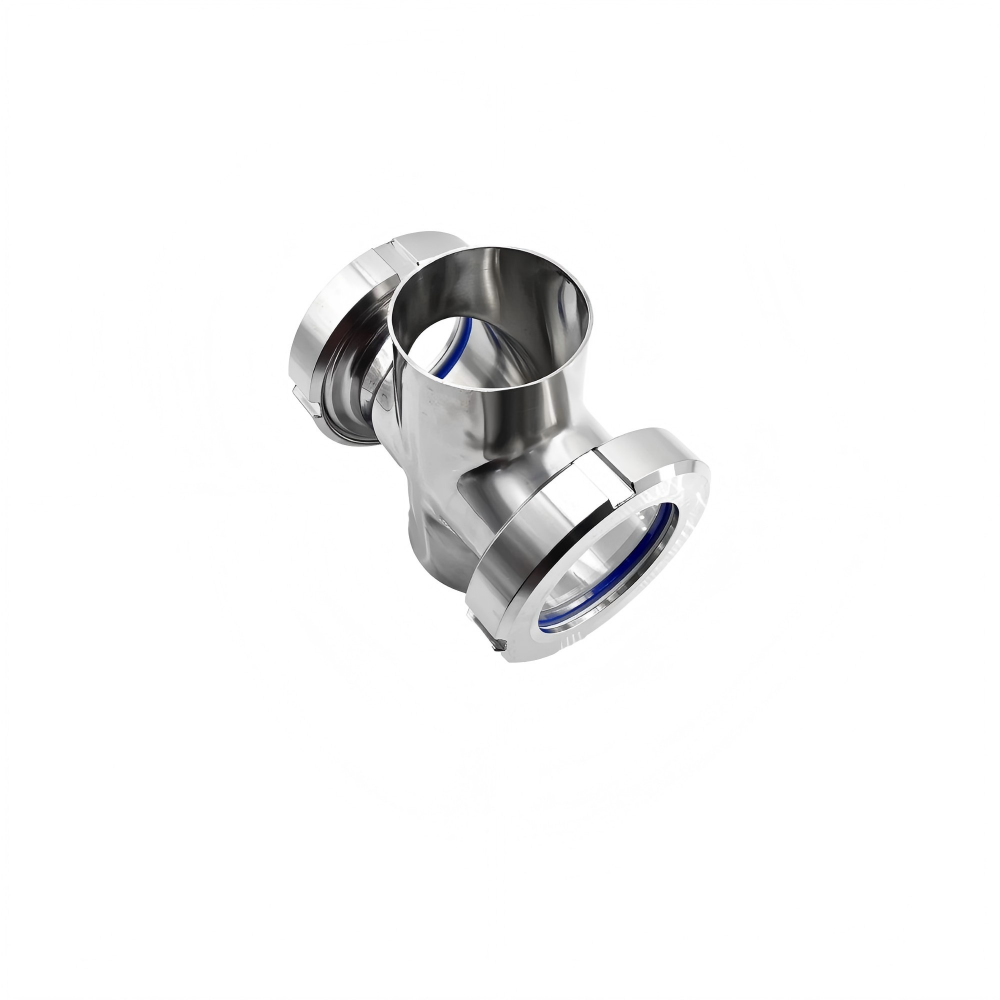

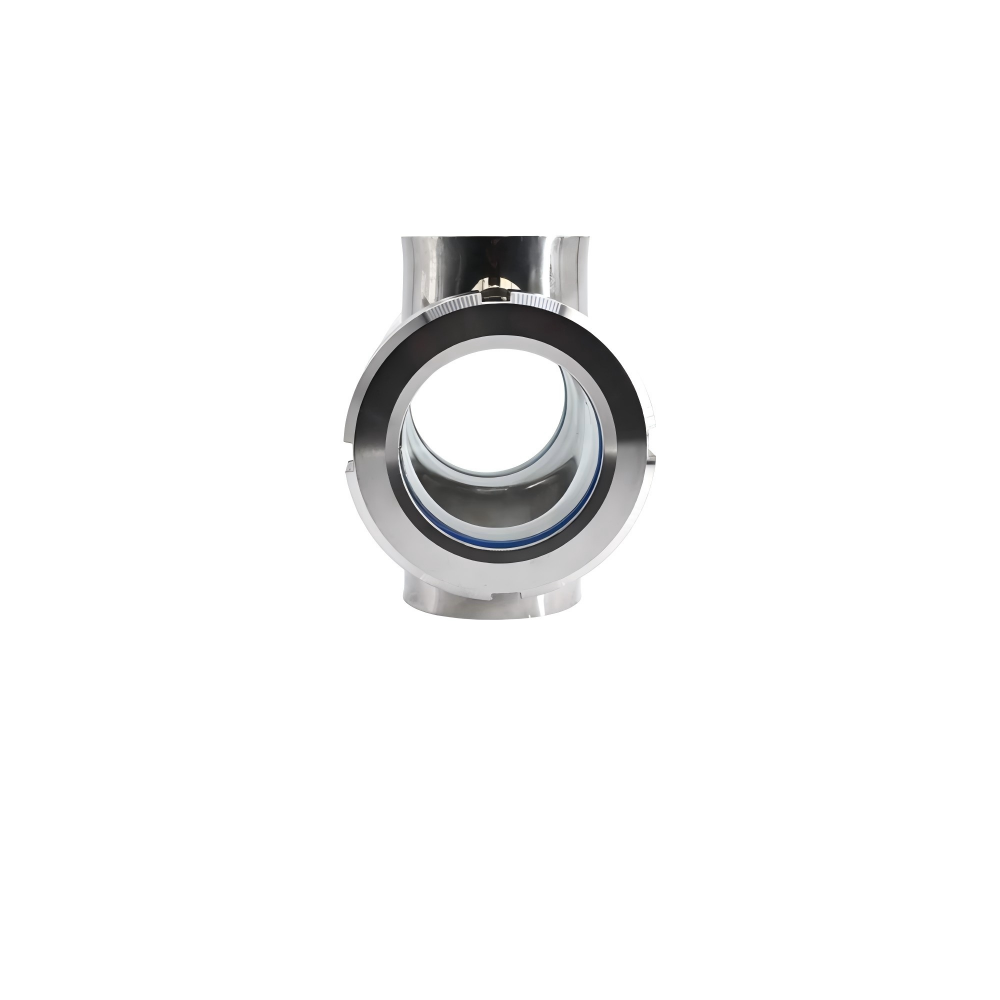

KINGMAN Sanitary Double Window Sight Glass is cross straight type structure with symmetric high-transparent tempered glass viewing windows on both sides, featuring good pressure and impact resistance. Integrally polished stainless steel body with tri-clamp ends. It enables observation from two sides for multi-angle monitoring of liquid, foam and particles with wide viewing range. Smooth dead-zone-free inner flow path supports CIP online cleaning, widely used in hygienic pipelines of food, pharmaceutical and fine chemical industries.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Sight Glass |
| Size Range | DN15–DN100 (approx. 1/2"–4") |
| Material | Body: 304/316L Glass:Tempered Borosilicate Glass |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon /NBR |
| Working Temperature | 120 °C |
| Max. Working Pressure | PN10 (DN15-40);PN8(DN50-100) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

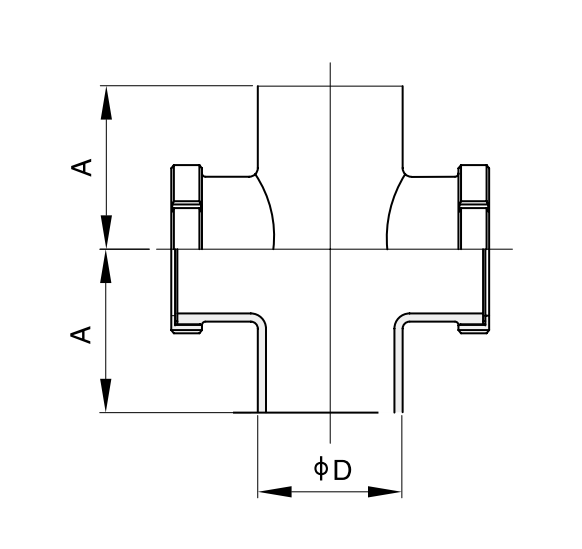

DIN Standard
| Size | A | D |
|---|---|---|
| DN25 | 50.0 | 28.0 |
| DN32 | 55.0 | 34.0 |
| DN40 | 60.0 | 40.0 |
| DN50 | 70.0 | 52.0 |
| DN65 | 80.0 | 70.0 |
| DN80 | 90.0 | 85.0 |
| DN100 | 100.0 | 104.0 |

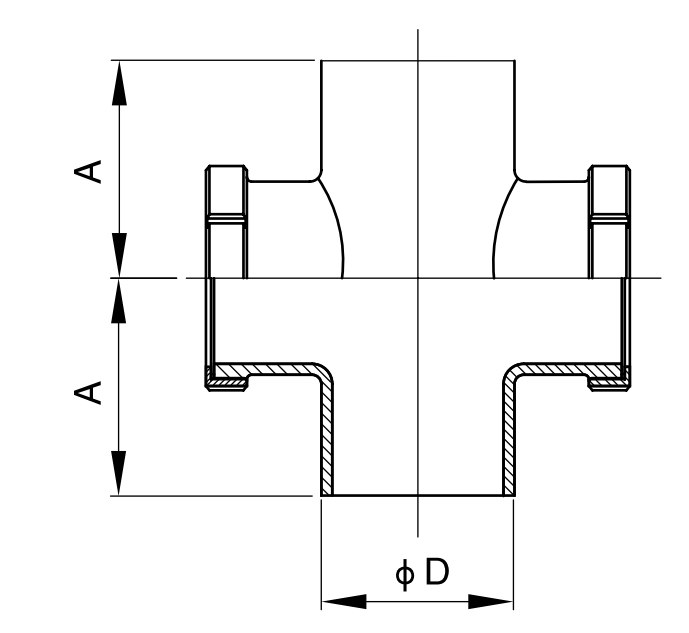

3A / ISO / SMS Standard
| Size | Size | A | D |
|---|---|---|---|
| 1" | 25 | 33.5 | 25.4 |
| 1 1/4" | 32 | 38.0 | 31.8 |
| 1 1/2" | 38 | 48.5 | 38.1 |
| 2" | 51 | 60.5 | 50.8 |
| 2 1/2" | 63 | 83.5 | 63.5 |
| 3" | 76 | 88.5 | 76.2 |
| 4" | 102 | 127.0 | 101.6 |
Features
- Dual symmetrical viewing window structure enables comprehensive two-side visual inspection, allowing multi-angle observation of fluid flow, bubbles, suspended particles and liquid mixing status for accurate process monitoring. Integral mirror-polished stainless steel body features a streamlined smooth flow path with extremely low fluid resistance, ensuring stable delivery speed without affecting overall pipeline production efficiency. Standard tri-clamp quick connection allows fast tool-free disassembly, facilitating daily internal inspection, window cleaning and gasket replacement with low maintenance difficulty. Adopts high-strength tempered glass viewing windows, which deliver excellent pressure resistance, high and low temperature stability and medium corrosion resistance, resisting cracking and deformation in long-term complex working conditions. Dead-zone-free smooth inner cavity effectively avoids material retention and residue buildup, fully adapting to CIP online cleaning to maintain long-term pipeline sanitation and viewing clarity. Compact and reasonable overall structural design fits directly into straight pipeline sections with simple and fast installation, suitable for various compact hygienic piping layouts.
Working Principle
Sanitary Double Window Sight Glass enables multi-angle visual inspection through symmetric glass windows on two sides. Medium flows horizontally through central flow channel of sight glass body. Operators can observe fluid color, flow rate, bubbles and suspended matters from both sides. Glass windows are sealed and compressed by stainless steel body to prevent leakage under pipeline pressure. During CIP cleaning, flushing liquid passes through cavity and removes deposits on inner glass surface to maintain clear view for continuous monitoring.
Why Choose KINGMAN
Configuration Review for Projects
Port arrangement, viewing orientation and connection requirements can be reviewed from your drawing before production for more complex four-way sight glass installations.
72H Prototype Response
Urgent custom samples can be produced within 72 hours after key dimensions are confirmed, supporting faster fit and layout verification.
100% Final Inspection
Each finished sight glass is checked before shipment, reducing receiving risk on custom and project-specific sanitary components.
