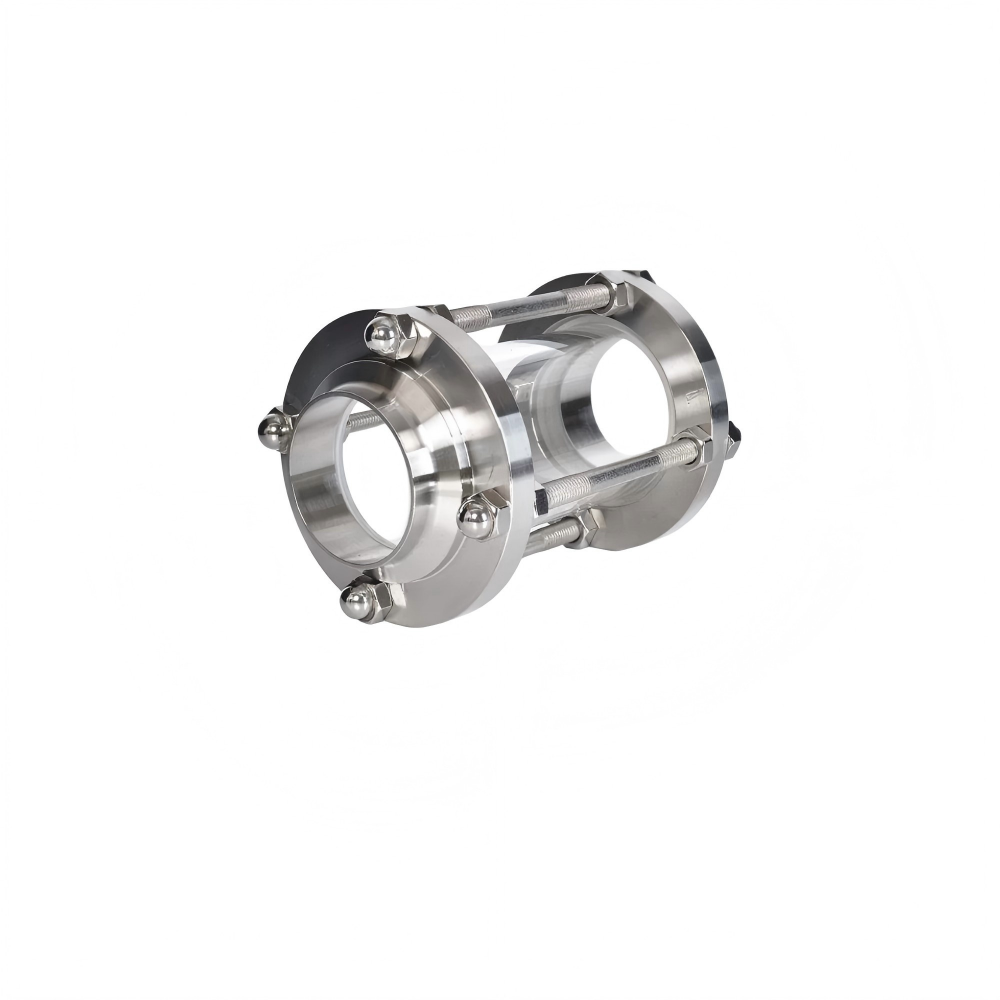

Weld End Sight Glass
KINGMAN Sanitary Weld End Sight Glass is made of high-quality stainless steel with high-pressure resistant transparent tempered glass tube featuring great impact and temperature shock resistance. It adopts welded ends to be directly welded into hygienic pipelines. It is used to visually observe fluid flow status, material color, bubbles and impurities inside the pipeline and monitor production conditions in real time. Mirror polished housing with smooth dead-zone-free inner surface supports CIP online cleaning. Widely used in food, beverage, biopharma and fine chemical hygienic conveying pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Sight Glass |
| Size Range | DN15–DN100 (approx. 1/2"–4") |
| Material | Body: 304/316L Glass:Tempered Borosilicate Glass |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon /NBR |
| Working Temperature | 120 °C |
| Max. Working Pressure | PN10 (DN15-40);PN8(DN50-100) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Welded ends are integrally fused with the pipeline to form an integrated structure, delivering stable, reliable and leak-proof sealing performance while withstanding higher medium pressure and system fluctuation. High-transparency tempered glass tube features excellent pressure resistance, temperature stability and impact resistance, ensuring ultra-clear light transmission for accurate observation of material flow, color changes, bubbles and suspended impurities. Mirror-polished stainless steel housing adopts smooth dead-zone-free inner structure, effectively preventing material adhesion, residue accumulation and bacterial growth to maintain long-term pipeline hygiene. Integrated robust structural design provides outstanding mechanical strength and impact resistance, perfectly adapting to long-term continuous production operation for extended service life. Fully compatible with CIP online cleaning procedures, meeting strict hygiene standards for continuous and sterile hygienic production. Complete size range covers various pipeline diameters, realizing highly flexible and universal installation matching for different process piping systems.
Working Principle
Sanitary Weld End Sight Glass realizes internal pipeline visual monitoring via transparent glass tube. When medium flows through the sight glass chamber, operators can directly observe flow velocity, material color, bubbles, suspended matters and judge pipeline operating status through the glass. The glass tube bears pressure while stainless steel housing provides protection. Combined with production online cleaning process, deposits on inner glass surface can be flushed to maintain clear visibility.
Why Choose KINGMAN
Weld Dimensions Checked First
Pipe OD, weld-end dimensions and installation details can be reviewed before production, reducing rework when the sight glass is welded into a fixed line.
Samples for Fit Verification
Start with a sanitary sight glass sample or small quantity to confirm welding fit and workmanship before broader project purchasing.
Surface Quality Verified
Polished fluid-contact surfaces can be inspected before shipment, with Ra requirements reviewed when your hygienic process calls for tighter finish control.
