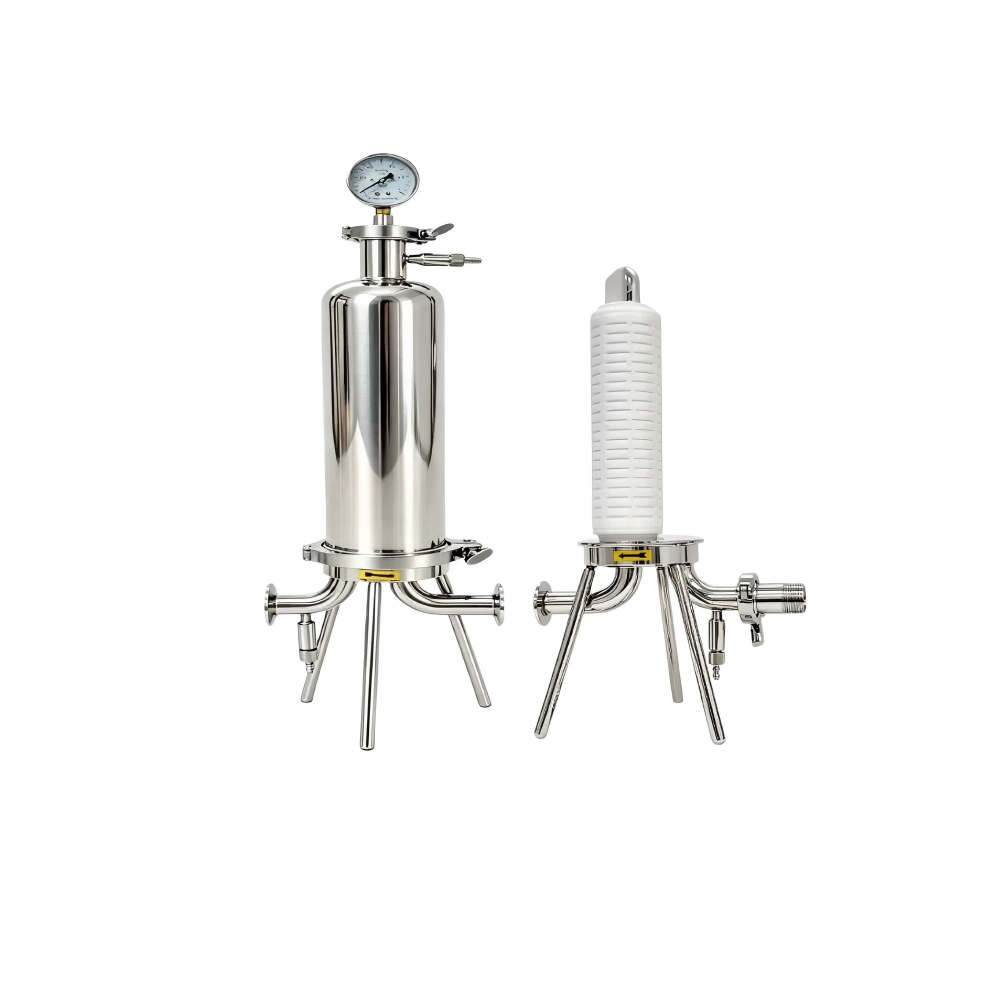

Sanitary Micro Filter

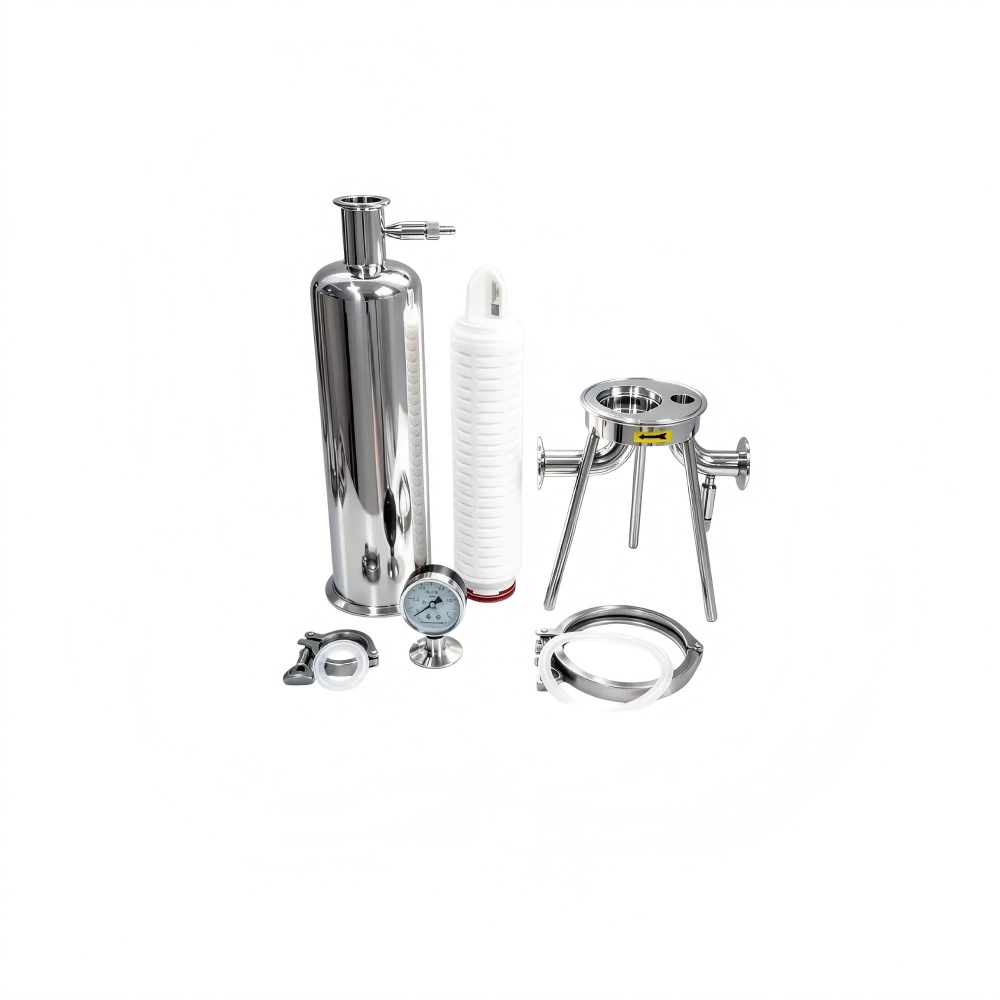

KINGMAN Sanitary Micro Filter is a high-end precision terminal filtration device with stainless steel pressure housing and high-precision micro mesh filter cartridges. Different from conventional coarse screen filtration, it adopts micro-membrane mesh as the core filtering medium to intercept ultra-fine particles, colloids and microorganisms for fluid sterilization and purification. Equipped with pressure gauge, vent valve, drain port and independent tripod support, the quick-open housing enables fast cartridge replacement. The clean residual-free flow path withstands high-temperature sterilization and online cleaning, ideal for high-purity terminal filtration in pharmaceutical, bioengineering and premium beverage production.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Filters and Strainers |
| Product Type | Y-type/Straight type/Angle type/Double Combination/Microfiltration Connection Size DN15–DN100 (approx. 1/2"–4") |
| Material | 304/316L Mesh 20 ~ 400 Aperture Size 1mm ~ 10mm |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
Three cores filter
| Size | L | H | H1 | H2 | H3 | H4 | D | D1 | A |
|---|---|---|---|---|---|---|---|---|---|
| 10" | 350 | 685 | 160 | 380 | 293 | 35 | 38.1 | 50.5 | 204 |
| 20" | 350 | 935 | 160 | 630 | 293 | 35 | 38.1 | 50.5 | 204 |
| 30" | 350 | 1185 | 160 | 880 | 293 | 35 | 38.1 | 50.5 | 204 |
| 40" | 350 | 1435 | 160 | 1130 | 293 | 35 | 38.1 | 50.5 | 204 |
Five cores filter
| Size | L | H | H1 | H2 | H3 | H4 | D | D1 | A |
|---|---|---|---|---|---|---|---|---|---|
| 10" | 350 | 679 | 152 | 380 | 287 | 35 | 38.1 | 50.5 | 219 |
| 20" | 350 | 929 | 152 | 630 | 267 | 35 | 38.1 | 50.5 | 219 |
| 30" | 350 | 1179 | 152 | 880 | 287 | 35 | 38.1 | 50.5 | 219 |
| 40" | 350 | 1429 | 152 | 1130 | 267 | 35 | 38.1 | 50.5 | 219 |
Features
- 1. Adopts precision micro mesh cartridges with much higher accuracy than ordinary screens, effectively intercepting ultra-fine dust, colloids and microorganisms to achieve sterile filtration.
- 2. Built-in real-time pressure difference monitoring intuitively judges mesh clogging status for timely maintenance and stable filtration quality.
- 3. Independent tripod support bears equipment weight without pipeline stress, protecting both piping system and filter housing.
- 4. Quick-open clamp enables easy disassembly and fast cartridge replacement, suitable for batch switching in sterile production lines.
- 5. Smooth and clean internal flow path without dead zones withstands repeated CIP cleaning and high-temperature sterilization to avoid secondary pollution.
- 6. Various micro mesh cartridge specifications support precision purification of liquid and gas media with wide process adaptability.
Working Principle
Sanitary Micro Filter completes precise sterile filtration based on the micro-pore sieving principle of high-precision micro mesh cartridges. After entering the pressure chamber, the medium penetrates the micro mesh layer under stable pressure. Ultra-fine particles, colloids, bacteria and microorganisms larger than the pore size are accurately trapped, while only purified fluid passes through to form high-purity sterile medium. The pressure gauge monitors clogging pressure difference in real time; the vent valve eliminates air resistance and the drain port discharges residual liquid. When the cartridge is saturated and pressure rises, the housing can be opened for cartridge replacement. Combined with online cleaning and sterilization, it maintains ultra-high terminal fluid cleanliness continuously.
Why Choose KINGMAN
72H Prototype Support
Urgent custom sanitary filter samples can be available within 72 hours after key specifications are confirmed for faster project evaluation.
Material Selection for the Process
Choose 304, 316L, AL6XN, Hastelloy or Alloy 22 according to media, cleaning chemistry and corrosion requirements.
Final Inspection on Every Unit
Finished products undergo 100% final inspection before shipment, giving buyers an additional quality gate before high-purity or hygienic use.
