Sight Glass With Lamp

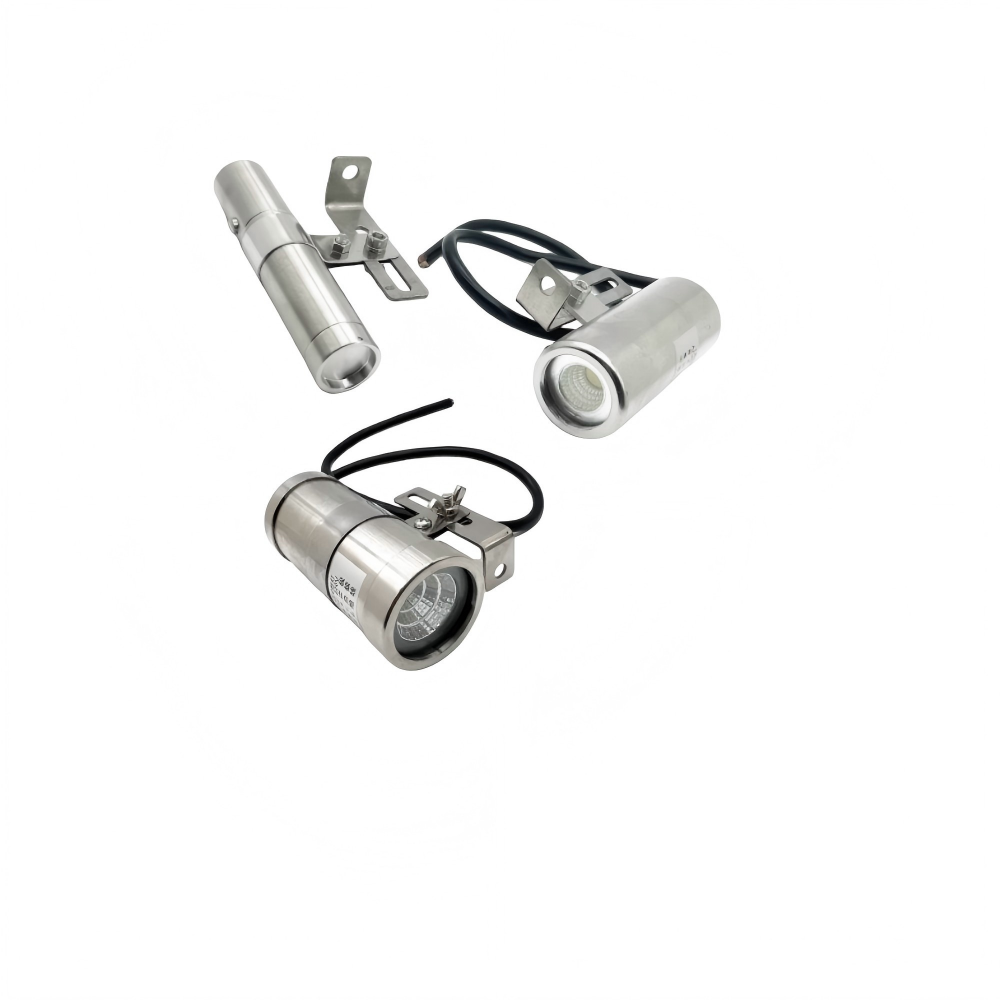

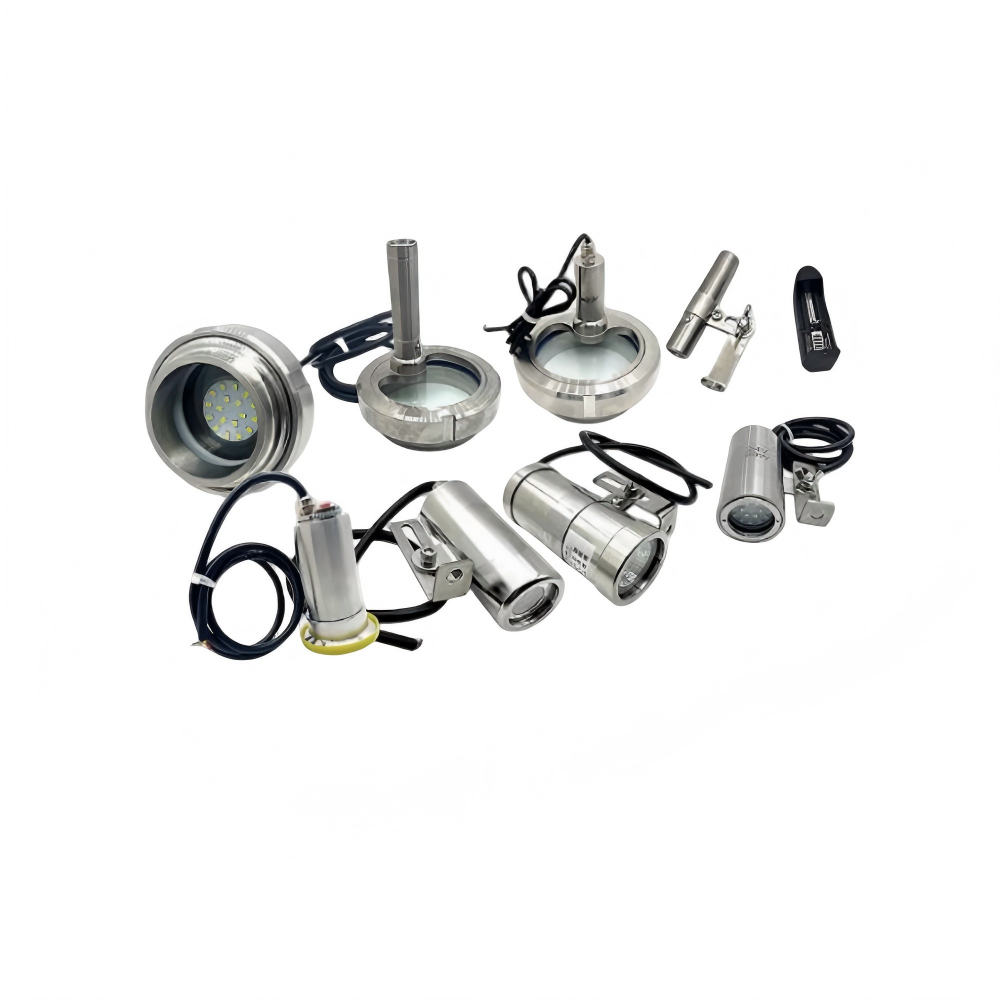

KINGMAN Sanitary Sight Glass With Lamp integrates LED light unit and round tempered glass disc on stainless steel flange body with power cord. Built-in light source removes the need of extra external lighting, enabling clear observation of tank or pipeline medium even under dim working conditions. Mirror polished inner cavity with reliable sealing and CIP compatibility. Widely used for visual inspection on reactors, storage tanks and hygienic pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Sight Glass |
| Size Range | DN15–DN100 (approx. 1/2"–4") |
| Material | Body: 304/316L Glass:Tempered Borosilicate Glass |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon /NBR |
| Working Temperature | 120 °C |
| Max. Working Pressure | PN10 (DN15-40);PN8(DN50-100) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Integrated high-brightness LED light module provides independent built-in lighting, enabling ultra-clear full-view observation of fluid status, reaction conditions and impurities even in dim and dark pipeline working environments. Adopts round high-strength tempered glass disc with superior light transparency, excellent pressure resistance, stable temperature tolerance and strong impact resistance. The optimized glass structure effectively avoids cracking, fogging and deformation during long-term continuous production. Heavy-duty stainless steel flange structure ensures firm positioning and easy assembly and disassembly. The matched high-elastic sealing gasket achieves uniform compression and permanent leak-tight performance under pipeline working pressure. Mirror-polished inner housing features a smooth dead-zone-free surface, which greatly reduces material adhesion, residue accumulation and bacterial breeding, maintaining long-term pipeline hygienic standards. Fully compatible with standard CIP online cleaning procedures, realizing thorough internal flushing and cleaning to meet strict hygienic production requirements for food, beverage and pharmaceutical industries. The lamp unit adopts professional waterproof and dustproof protective design, with excellent environmental adaptability, stably adapting to humid, steam and material splashing process working conditions.
Working Principle
Sanitary Sight Glass With Lamp uses built-in LED light together with tempered glass disc to realize visual inspection in dark conditions. LED light passes through glass to illuminate chamber interior, allowing operators to check medium color, liquid level, suspended solids and reaction status. Flange bolts evenly compress gasket and glass to withstand internal pressure and prevent leakage. CIP online cleaning flushes inner glass surface and removes deposits to preserve good light transmission and viewing
