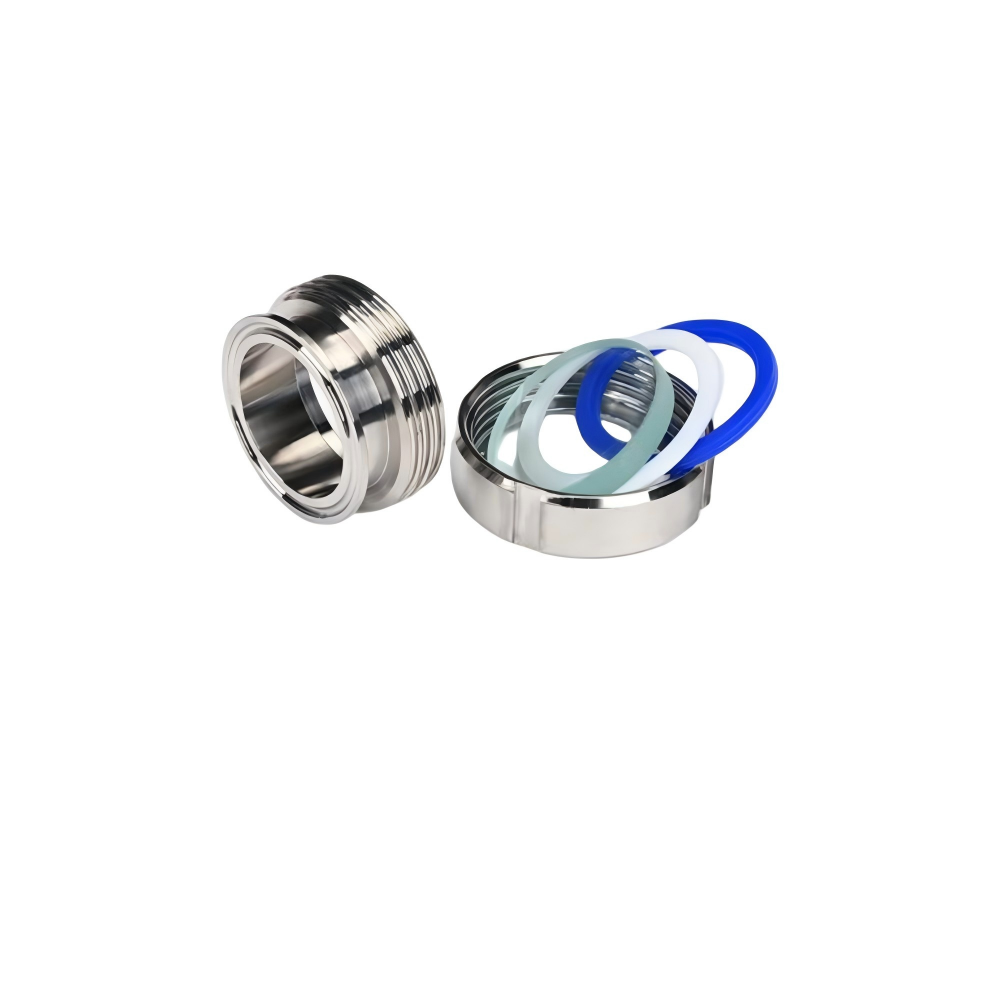

Sanitary Clamp Union Type Sight Glass
KINGMAN Sanitary Clamp Union Type Sight Glass combines tri-clamp and union fitting. Stainless steel housing fitted with tempered glass disc. Tri-clamp connects with pipeline, while union joint allows quick opening of sight glass body for glass cleaning and gasket replacement. Mirror polished housing with smooth dead-zone-free flow path and CIP compatibility. It balances fast installation and easy maintenance for fluid observation on food and pharmaceutical hygienic pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Sight Glass |
| Size Range | DN15–DN100 (approx. 1/2"–4") |
| Material | Body: 304/316L Glass:Tempered Borosilicate Glass |
| Seal Material | EPDM /PTFE / FKM (Viton) / Silicon /NBR |
| Working Temperature | 120 °C |
| Max. Working Pressure | PN10 (DN15-40);PN8(DN50-100) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Combined clamp & union structure. Tri-clamp for fast pipeline connection; union end for quick opening and inspection.
- Tempered glass disc with good light transmission to clearly observe internal fluid flow.
- Mirror polished stainless steel body with smooth inner wall to reduce material adhesion.
- Dual sealing design for stable sealing and effective leakage prevention.
- Compatible with online cleaning, simple and efficient cleaning and maintenance.
- Flexible disassembly, glass can be taken out separately for cleaning.
Working Principle
Sanitary Clamp Union Type Sight Glass connects pipeline by tri-clamp and compresses glass disc by union fitting for pipeline fluid visual observation. Medium flows through sight glass chamber; operators can inspect liquid, bubbles and impurities through glass. Tri-clamp quickly connects upstream and downstream pipes. Unscrew union joint to open sight glass chamber for glass cleaning or gasket replacement. Online cleaning washes inner deposits and keeps glass transparent for continuous viewing.
