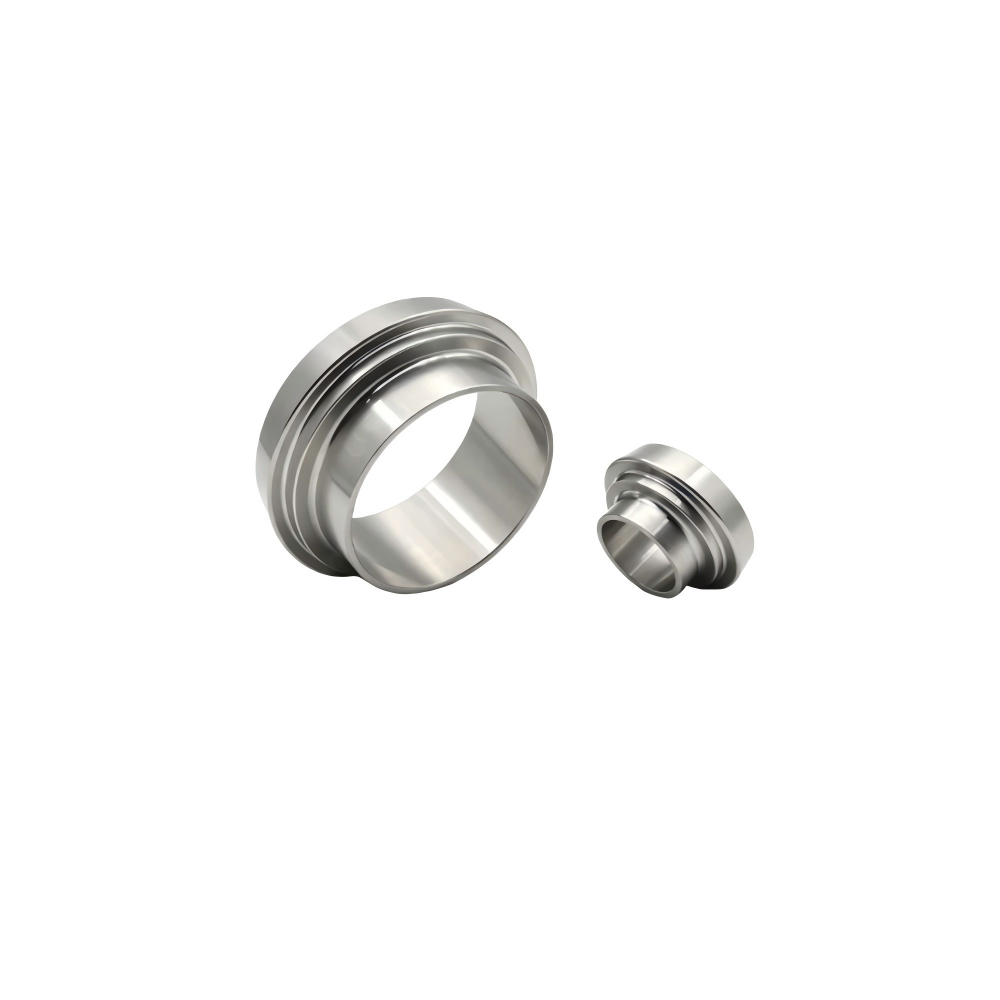

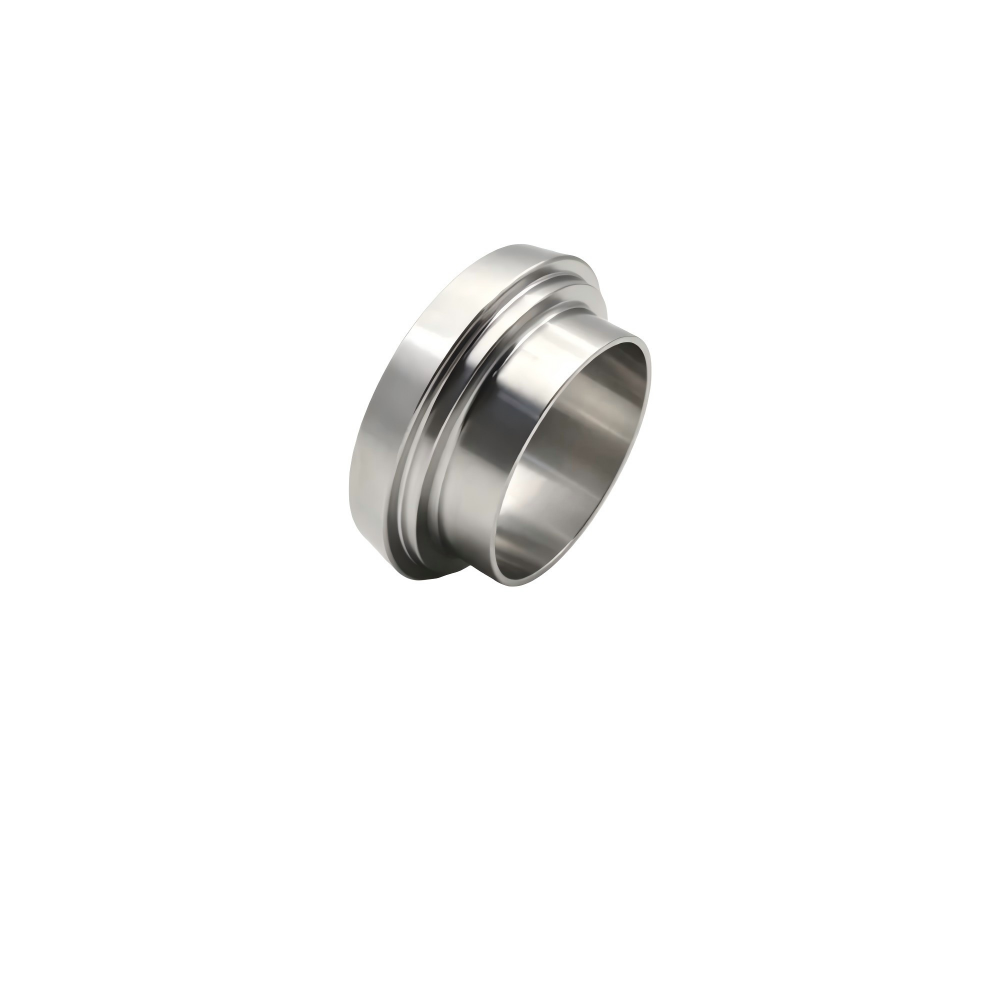

Welding Liner
KINGMAN sanitary union Weld Liner is precisely processed from SS304/SS316L stainless steel and fully compliant with 3A, SMS, DIN and BPE international hygienic standards. It serves as the core sealing and flow-guiding component of sanitary unions. Adopting a precise flat-end structure, it achieves uniform face sealing under round nut compression with accurate alignment and stable sealing performance. The full mirror-polished inner wall ensures a smooth and continuous flow path without dead zones, effectively avoiding material adhesion and stagnation. With high structural rigidity and precise dimensions, it supports repeated disassembly and assembly, fully adapting to CIP online cleaning and SIP high-temperature sterilization. It is widely used in high-purity hygienic pipeline systems for biopharmaceutical, food, beverage and fine chemical industries.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Union |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

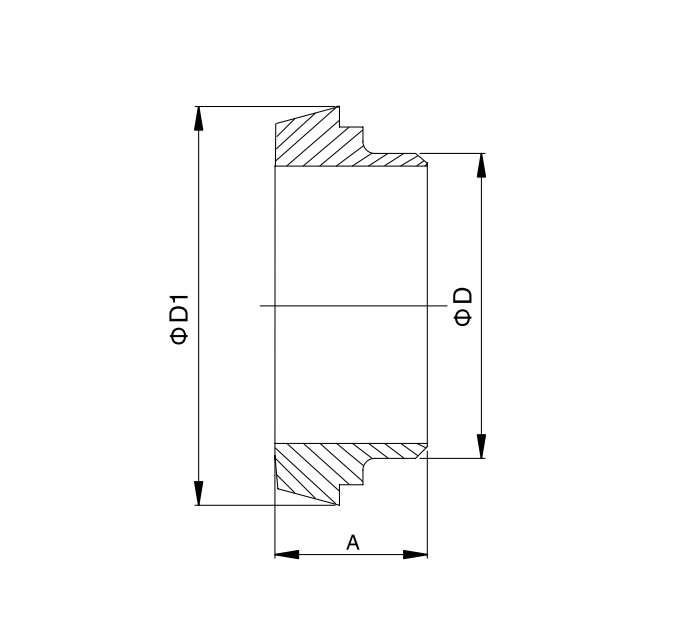

DIN11851 Standard
| Material Code | Size | A | D | D1 |
|---|---|---|---|---|
| FU03DIN0411015 | DN15 | 17.0 | 21.0 | 28.0 |
| FU03DIN0411020 | DN20 | 18.0 | 25.0 | 36.0 |
| FU03DIN0411025 | DN25 | 22.0 | 31.0 | 43.0 |
| FU03DIN0411032 | DN32 | 25.0 | 37.0 | 49.0 |
| FU03DIN0411040 | DN40 | 26.0 | 43.0 | 55.0 |
| FU03DIN0411050 | DN50 | 28.0 | 55.0 | 68.0 |
| FU03DIN0411065 | DN65 | 32.0 | 72.0 | 85.0 |
| FU03DIN0411080 | DN80 | 37.0 | 87.0 | 100.0 |
| FU03DIN0411100 | DN100 | 44.0 | 106.0 | 120.0 |
| FU03DIN0411125 | DN125 | 34.0 | 132.0 | 149.0 |
| FU03DIN0411150 | DN150 | 37.0 | 157.0 | 176.0 |
SMS Standard
| Material Code | Size | A | D | D1 |
|---|---|---|---|---|
| FU03SMS0411019 | 19 | 12.0 | 19.1 | 30.8 |
| FU03SMS0411025 | 25 | 13.0 | 25.4 | 35.7 |
| FU03SMS0411032 | 32 | 13.0 | 31.8 | 43.7 |
| FU03SMS0411038 | 38 | 13.0 | 38.1 | 55.7 |
| FU03SMS0411051 | 51 | 13.0 | 50.8 | 65.7 |
| FU03SMS0411063 | 63 | 14.0 | 63.5 | 80.7 |
| FU03SMS0411076 | 76 | 14.0 | 76.2 | 93.5 |
| FU03SMS0411189 | 89 | 15.0 | 88.9 | 105.5 |
| FU03SMS0411102(1) | 102 (1) | 17.0 | 101.6 | 120.5 |
| FU03SMS0411102(2) | 102 (2) | 17.0 | 101.6 | 127.5 |
3A Standard
| Material Code | Size | D | D4 | A (14PRF) | A (14A) |
|---|---|---|---|---|---|
| FU033A0411100 | 1" | 25.4 | 33.3 | 18.3 | 34.9 |
| FU033A0411150 | 1 1/2" | 38.1 | 46.8 | 18.3 | 38.1 |
| FU033A0411200 | 2" | 50.8 | 60.3 | 19.1 | 38.1 |
| FU033A0411250 | 2 1/2" | 63.5 | 73.8 | 22.3 | 44.5 |
| FU033A0411300 | 3" | 76.2 | 87.3 | 23.1 | 44.5 |
| FU033A0411400 | 4" | 101.6 | 114.3 | 26.2 | 44.5 |
ISO Standard
| Material Code | Size | A | D5 | D (IDF) | D (ISO) |
|---|---|---|---|---|---|
| FU03ISO0411100 | 1" | 21.5 | 33.8 | 25.4 | 25.6 |
| FU03ISO0411150 | 1 1/2" | 21.5 | 47.0 | 38.1 | 38.6 |
| FU03ISO0411200 | 2" | 21.5 | 60.5 | 50.8 | 51.6 |
| FU03ISO0411250 | 2 1/2" | 21.5 | 74.0 | 63.5 | 64.1 |
| FU03ISO0411300 | 3" | 21.5 | 87.5 | 76.2 | 76.7 |
| FU03ISO0411400(ISO) | 4" (ISO) | 21.5 | 114.1 | / | 102.5 |
| FU03ISO0411400(IDF) | 4" (IDF) | 30.0 | 120.6 | 101.6 | / |
Features
- 1. Compliant with 3A, SMS and DIN international hygienic standards with highly standardized dimensions, featuring strong versatility and interchangeability for all standard sanitary unions.
- 2. High-precision flat end structure ensures uniform pressure and tight fitting. It effectively resists positive pressure, negative pressure and fluid impact to maintain stable leak-free sealing for long-term operation.
- 3. Precision forming process ensures uniform wall thickness and high structural rigidity. It is not easy to deform after repeated locking and disassembly, maintaining permanent assembly accuracy.
- 4. High-grade mirror polishing delivers a clean and smooth flow path without dirt trapping dead zones, reducing material residue and meeting sterile high-purity production requirements.
- 5. Excellent resistance to acid, alkali, high temperature and corrosion. It adapts to frequent CIP cleaning and SIP sterilization for long-term continuous hygienic production.
- 6. Perfect compatibility with union body and locking round nut, simplifying pipeline docking and greatly improving the disassembly and maintenance efficiency of hygienic pipelines.
Working Principle
As the core sealing and flow-guiding component of sanitary unions, the flat joint provides accurate positioning, uniform pressure bearing and smooth flow guidance. During pipeline assembly, its precise flat sealing face fits closely with the sanitary gasket. The axial locking force of the round nut achieves even compression and forms a fully enclosed sealing layer to prevent medium leakage and external contamination. During operation, the smooth continuous inner bore ensures gentle and stable fluid transmission without turbulence or local stagnation, maintaining high-purity and hygienic medium delivery. The rigid structure buffers pipeline vibration and pressure fluctuation for long-term stable sealing performance. It supports repeated disassembly, cleaning and reassembly, fully complying with BPE and GMP high hygienic pipeline standards.
