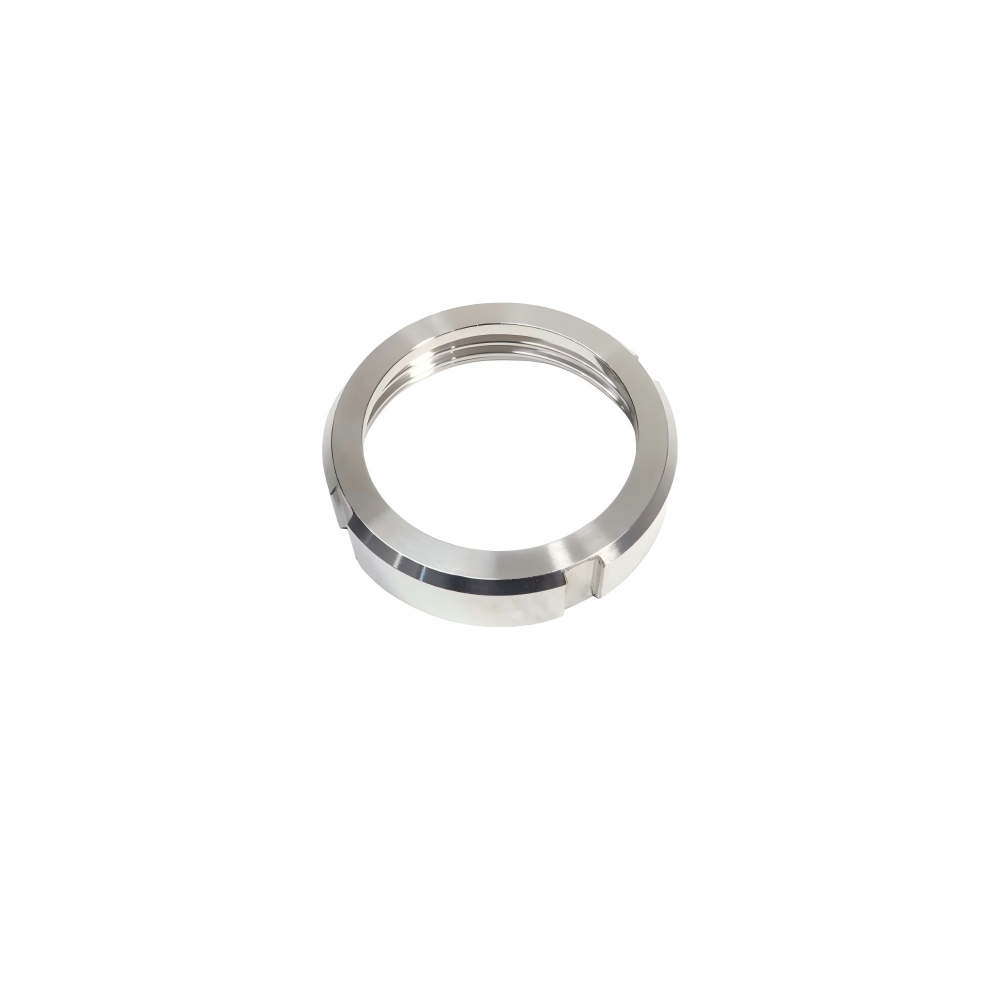

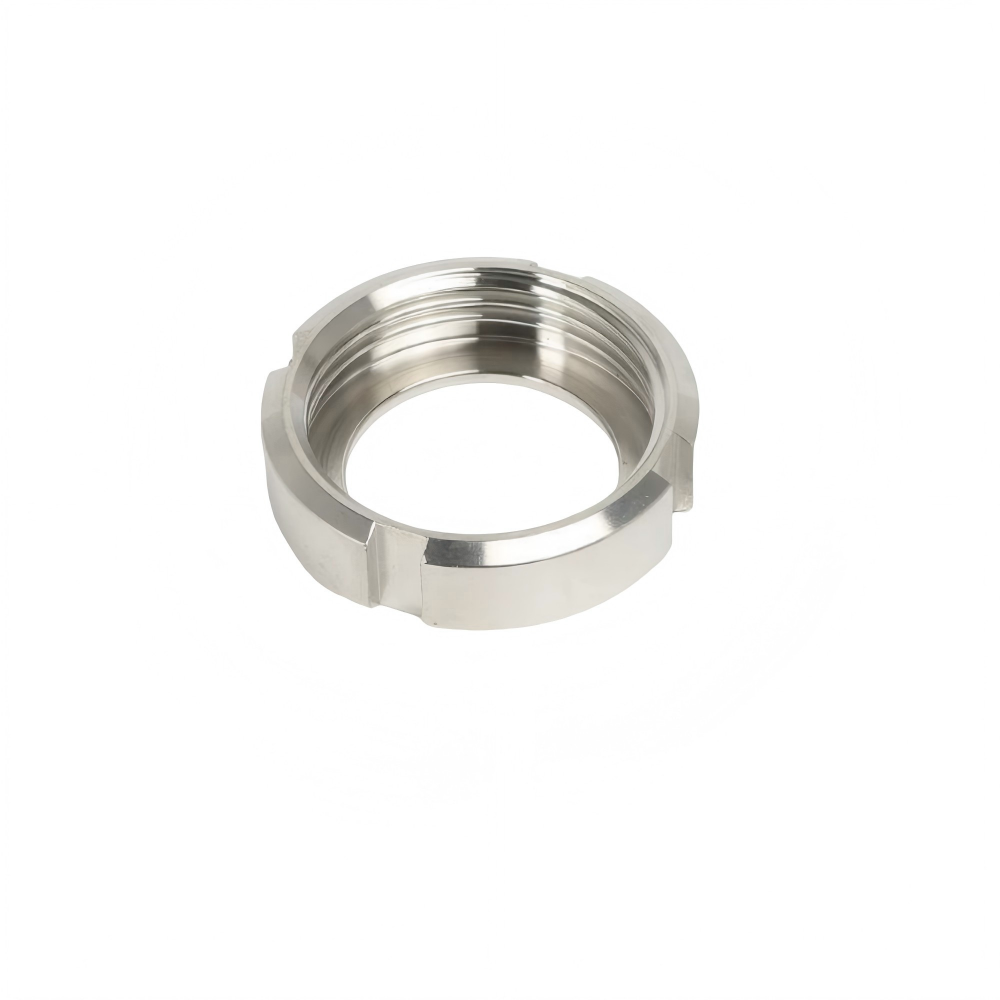

Round Nut
KINGMAN sanitary weld union is precisely manufactured from SS304/SS316L stainless steel in full compliance with 3A, SMS, DIN RJT high-end hygienic standards. The complete assembly consists of a weld-end body, sealing flat liner and locking round nut, serving as a detachable connecting component for hygienic pipelines. With straight weld ends and nut compression face-sealing structure, it replaces traditional fixed welded joints. The mirror-polished inner wall and precision flat sealing face ensure dead-leg-free flow and stable sealing performance. It is widely used in high-purity pipeline systems for biopharmaceutical, food & beverage and fine chemical industries, fully meeting BPE medium transportation and CIP/SIP cleaning requirements.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Union |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
DIN11851 Standard
| Material Code | Size | A | G | D5 | C |
|---|---|---|---|---|---|
| FU01DIN0411015 | DN15 | 18.0 | RD34 × 1/8 | 44.0 | 25.0 |
| FU01DIN0411020 | DN20 | 19.0 | RD44 × 1/6 | 54.0 | 31.0 |
| FU01DIN0411025 | DN25 | 21.0 | RD52 × 1/6 | 62.0 | 36.0 |
| FU01DIN0411032 | DN32 | 21.0 | RD58 × 1/6 | 68.0 | 42.0 |
| FU01DIN0411040 | DN40 | 21.0 | RD65 × 1/6 | 78.0 | 49.0 |
| FU01DIN0411050 | DN50 | 22.0 | RD78 × 1/6 | 92.0 | 62.0 |
| FU01DIN0411065 | DN65 | 24.0 | RD95 × 1/6 | 110.0 | 80.0 |
| FU01DIN0411080 | DN80 | 28.0 | RD110 × 1/4 | 126.0 | 94.0 |
| FU01DIN0411100 | DN100 | 30.0 | RD130 × 1/4 | 146.0 | 115.0 |
| FU01DIN0411125 | DN125 | 32.0 | RD160 × 1/4 | 178.0 | 138.0 |
| FU01DIN0411150 | DN150 | 34.0 | RD190 × 1/4 | 208.0 | 164.0 |
SMS Standard
| Material Code | Size | A | G | D5 | C |
|---|---|---|---|---|---|
| FU01SMS0411019 | 19 | 18.0 | RD34 × 1/8 | 44.0 | 25.0 |
| FU01SMS0411025 | 25 | 19.0 | RD40 × 1/6 | 50.0 | 30.5 |
| FU01SMS0411032 | 32 | 21.0 | RD48 × 1/6 | 60.0 | 37.0 |
| FU01SMS0411038 | 38 | 21.0 | RD60 × 1/6 | 72.0 | 48.5 |
| FU01SMS0411051 | 51 | 22.0 | RD70 × 1/6 | 82.0 | 58.5 |
| FU01SMS0411063 | 63 | 24.0 | RD85 × 1/6 | 98.0 | 73.5 |
| FU01SMS0411076 | 76 | 26.0 | RD98 × 1/6 | 114.0 | 86.0 |
| FU01SMS0411089 | 89 | 28.0 | RD110 × 1/6 | 125.0 | 98.5 |
| FU01SMS0411102(1) | 102 (1) | 28.0 | RD125 × 1/6 | 140.0 | 113.0 |
| FU01SMS0411102(2) | 102 (2) | 30.0 | RD132 × 1/6 | 150.0 | 118.0 |
ISO Standard
| Material Code | Size | A | G | D5 | C |
|---|---|---|---|---|---|
| FU01ISO0411100 | 1" | 30.0 | 34.34 × 8TACME | 48.0 | 30.5 |
| FU01ISO0411150 | 1 1/2" | 30.0 | 47.86 × 8TACME | 64.0 | 43.5 |
| FU01ISO0411200 | 2" | 30.0 | 61.37 × 8TACME | 77.0 | 57.0 |
| FU01ISO0411250 | 2 1/2" | 30.0 | 74.97 × 8TACME | 91.0 | 70.7 |
| FU01ISO0411300 | 3" | 30.0 | 88.40 × 8TACME | 104.0 | 83.3 |
| FU01ISO0411400(ISO) | 4" (ISO) | 30.0 | 119.4 × 8TACME | 135.0 | 110.0 |
| FU01ISO0411400(IDF) | 4" (IDF) | 35.0 | 115.41 × 8TACME | 138.0 | 112.0 |
Features
- 1. Compliant with BPE, 3A, SMS and DIN international hygienic standards with high-precision standardized dimensions. The round nut features accurate thread pitch and smooth engagement for perfect matching with standard hygienic pipelines.
- 2. Three-piece split structure (liner + male + round nut) realizes fast disassembly and assembly. The pipeline can be maintained sectionally without pipe cutting, greatly improving maintenance efficiency.
- 3. Precision forming process ensures uniform and compact wall thickness. The round nut adopts high-precision thread processing, effectively preventing thread slipping and deformation after repeated locking, ensuring long-term structural stability and pressure resistance.
- 4. Flat face sealing structure with standard sanitary gaskets achieves uniform compression through round nut locking. It effectively prevents medium leakage and external contamination under positive pressure and negative pressure working conditions.
- 5. Full mirror-polished smooth flow path without steps or dead zones supports complete CIP online cleaning, maintaining long-term BPE-grade sterile and hygienic pipeline operation.
- 6. Standard flat weld ends enable convenient field welding installation. The design balances overall pipeline rigidity and detachable flexibility, suitable for permanent piping layout and regular maintenance of clean production lines.
Working Principle
Sanitary Weld Union adopts round nut compression sealing principle. During installation, two pipe bodies are welded to process pipelines respectively. After placing the sanitary gasket, the middle round nut is rotated to push the flat liner and compress the sealing faces tightly to form uniform and leak-proof sealing. In operation, media flows smoothly through the straight flat flow path without turbulence or dead retention, ensuring stable high-purity medium transportation. Compared with fully fixed welded joints, the union can be quickly disassembled by loosening the round nut without pipe cutting or hot work. It supports sectional pipeline disassembly, thorough cleaning, equipment maintenance and layout adjustment, fully meeting the permanent-installation and detachable-maintenance requirements of high-end hygienic pipeline systems.
