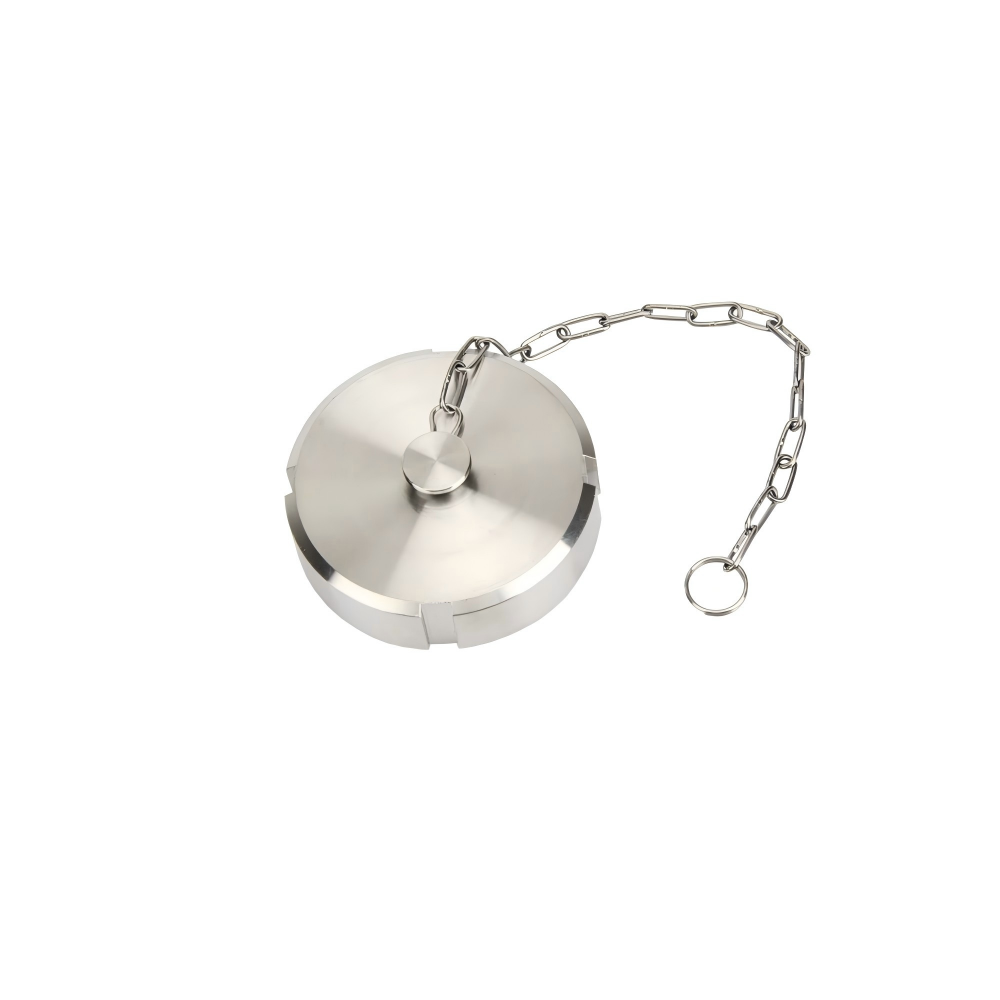

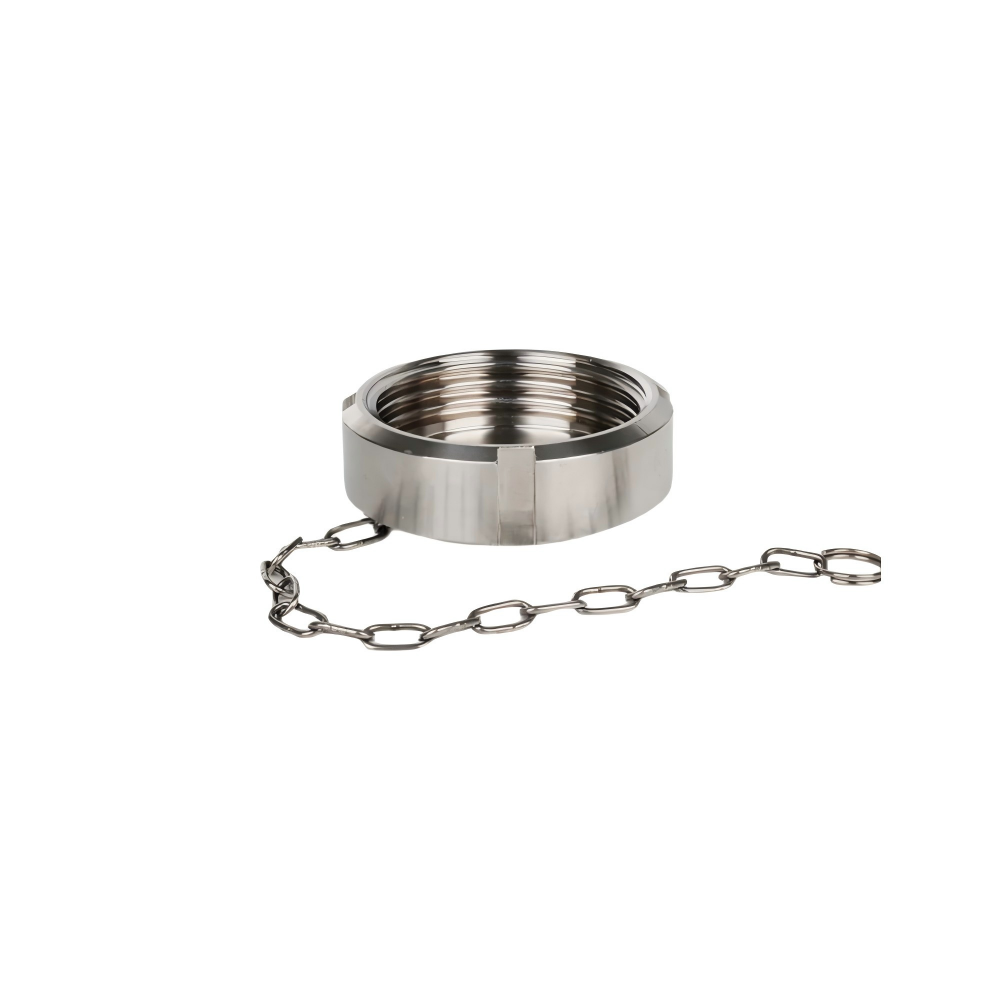

Round Blank Nut with Chain (DIN/SMS/IDF)
KINGMAN Sanitary Round Blank Nut with Chain is a hygienic threaded pipe end cap, manufactured according to SMS, DIN, 3A and ISO sanitary standards. It is matched with sanitary round thread union assembly to seal pipeline or tank branch openings. Equipped with a stainless steel safety chain to prevent loss after disassembly. Widely used in food, beverage, dairy, biopharmaceutical and fine chemical sanitary piping systems. It is applied to temporarily close spare ports, sampling ports and pipeline terminals, facilitating pipeline inspection, maintenance and CIP cleaning
Specifications
| Parameter | Value |
|---|---|
| Product Type | Round Blank Nut with Chain (DIN/SMS/IDF) |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

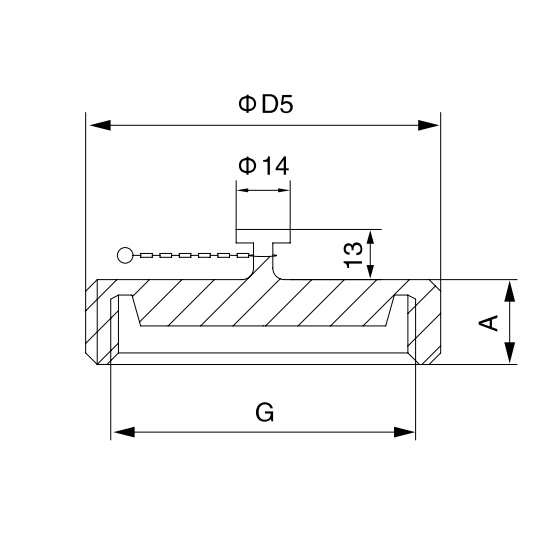

DIN Standard
| Material Code | Size | A | G | D5 |
|---|---|---|---|---|
| FU04DIN04015 | DN15 | 18.0 | RD34 x 1/8 | 44.0 |
| FU04DIN04020 | DN20 | 19.0 | RD44 x 1/8 | 54.0 |
| FU04DIN04025 | DN25 | 21.0 | RD52 x 1/6 | 62.0 |
| FU04DIN04032 | DN32 | 21.0 | RD58 x 1/6 | 68.0 |
| FU04DIN04040 | DN40 | 21.0 | RD65 x 1/6 | 78.0 |
| FU04DIN04050 | DN50 | 22.0 | RD78 x 1/6 | 92.0 |
| FU04DIN04065 | DN65 | 24.0 | RRD95 x 1/6 | 110.0 |
| FU04DIN04080 | DN80 | 28.0 | RD110 x 1/4 | 128.0 |
| FU04DIN04100 | DN100 | 30.0 | RD130 x 1/4 | 146.0 |
| FU04DIN04125 | DN125 | 32.0 | RD160 x 1/4 | 178.0 |
| FU04DIN04150 | DN150 | 34.0 | RD190 x 1/4 | 208.0 |

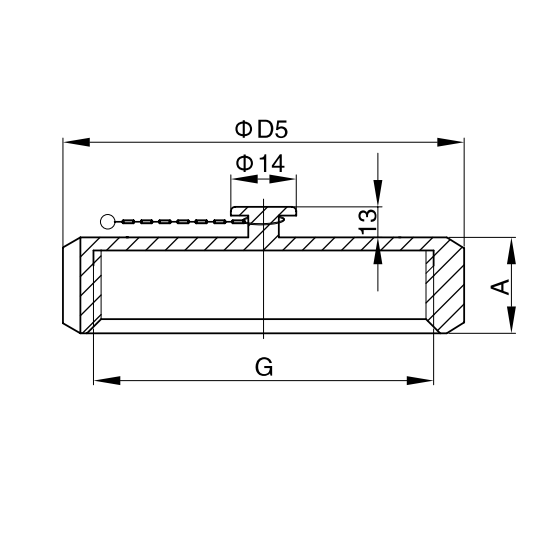

SMS Standard
| Material Code | Size | A | G | D5 |
|---|---|---|---|---|
| FU04SMS04019 | 19 | 18.0 | RD34 × 1/8 | 44.0 |
| FU04SMS04025 | 25 | 19.0 | RD40 × 1/6 | 50.0 |
| FU04SMS04032 | 32 | 21.0 | RD48 × 1/6 | 60.0 |
| FU04SMS04038 | 38 | 21.0 | RD60 × 1/6 | 72.0 |
| FU04SMS04051 | 51 | 22.0 | RD70 × 1/6 | 82.0 |
| FU04SMS04063 | 63 | 24.0 | RD85 × 1/6 | 98.0 |
| FU04SMS04076 | 76 | 26.0 | RD98 × 1/6 | 114.0 |
| FU04SMS04089 | 89 | 28.0 | RD110 × 1/6 | 125.0 |
| FU04SMS04102(1) | 102(1) | 28.0 | RD125 × 1/6 | 140.0 |
| FU04SMS04102(2) | 102(2) | 30.0 | RD132 × 1/6 | 150.0 |
Features
- Manufactured to SMS, DIN, 3A and SMS sanitary standards, standard thread profile for perfect matching with corresponding sanitary union male thread.
- Equipped with stainless steel safety chain, connected to the pipeline fitting, effectively preventing the blind cap from dropping and losing during disassembly.
- High-quality stainless steel material (304 /316L optional), smooth internal structure without sanitary dead corners, reducing material residue and bacterial growth.
- Multi-flat outer design for wrench operation, easy to tighten and loosen manually or with tools for fast opening and closing.
- Good corrosion resistance to common production media and cleaning agents, compatible with CIP online cleaning and SIP steam sterilization, meeting GMP and FDA hygienic requirements.
- Complete specifications, customizable sizes, simple installation and reliable sealing performance for sanitary pipeline spare ports and branch outlets.
- 中文
Working Principle
The sanitary Round Blank Nut with Chain is screwed onto the mating male thread of the sanitary union. When tightened, the end face of blind cap compresses the sanitary gasket between the union parts, forming a tight hygienic seal to block medium flow and prevent external contaminants entering the pipeline. The safety chain keeps the blind cap attached to the pipe fitting when unscrewed, avoiding loss. When opening is required for sampling, inspection or maintenance, unscrew the blind cap to expose the port. After operation, screw it back to restore sealing. Standard thread ensures stable sealing and easy repeated assembly and disassembly.
