SMS Sanitary Union

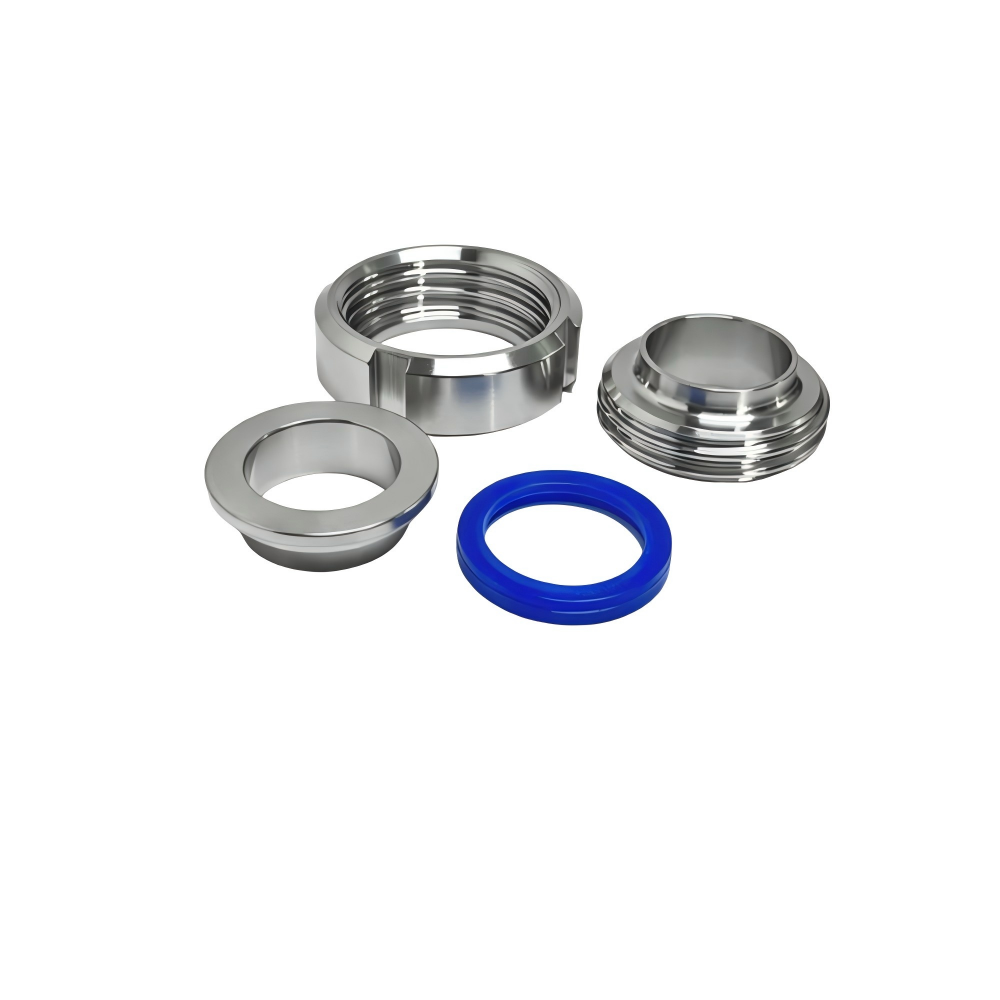

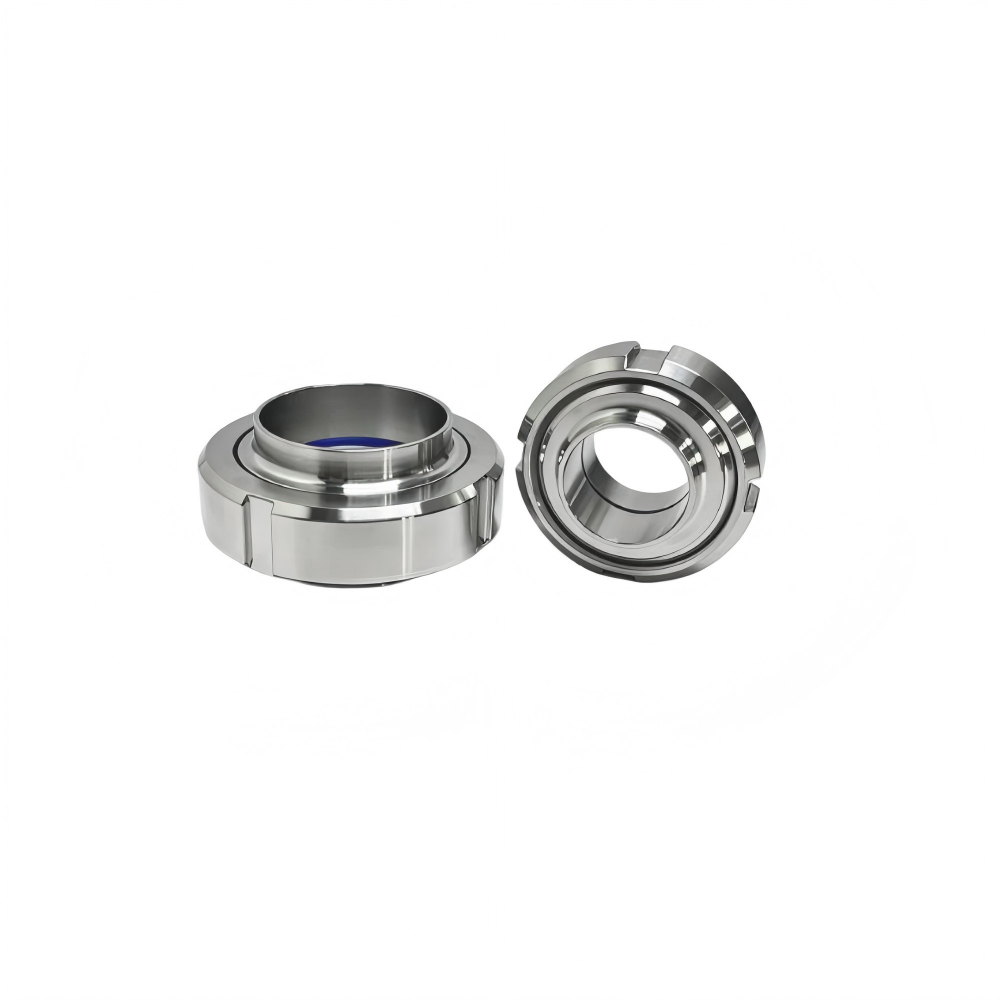

KINGMAN SMS Sanitary Union is manufactured to SMS sanitary fitting standards, made of SS304/SS316L stainless steel and compatible with mainstream SMS pipeline systems for dairy and food processing industries. The full assembly consists of male body, Liner and round nut, serving as detachable pipe connectors dedicated for food hygienic production lines. The inner bore is hygienically polished with rounded flow transition to facilitate fluid flow and CIP cleaning. Dimensions and sealing profiles strictly comply with SMS specifications for direct connection with SMS pipes and matched fittings of the same size. Widely adopted in dairy, fruit juice, beer and other food production lines, it supports segmented pipeline disassembly, quick equipment removal and regular sanitary maintenance on site.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Union |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

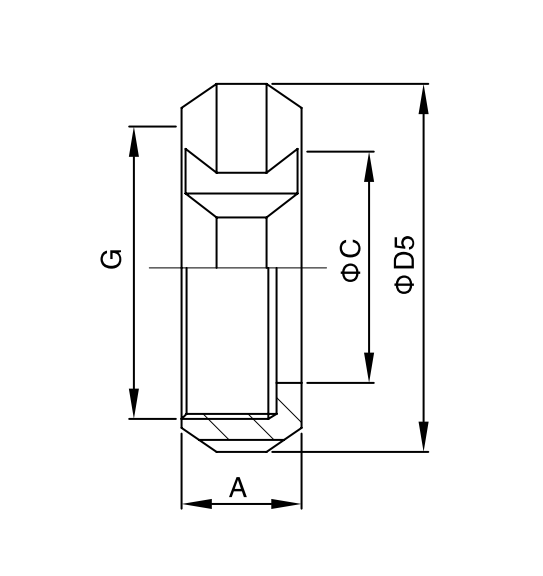

SMS NUT
| Material Code | Size | Size | A | G | D5 | C |
|---|---|---|---|---|---|---|
| FU00SMS0411019 | 25 | 19.0 | RD40×1/6 | 50.0 | 30.5 | |
| FU00SMS0411025 | 38 | 21.0 | RD60×1/6 | 72.0 | 48.5 | |
| FU00SMS0411032 | 51 | 22.0 | RD70×1/6 | 82.0 | 58.5 | |
| FU00SMS0411038 | 63 | 24.0 | RD85×1/6 | 98.0 | 73.5 | |
| FU00SMS0411051 | 76 | 26.0 | RD98×1/6 | 114.0 | 86.0 | |
| FU00SMS0411063 | 102(1) | 28.0 | RD125×1/6 | 140.0 | 113.0 | |
| FU00SMS0411076 | 102(2) | 30.0 | RD132×1/6 | 150.0 | 118.0 | |
| FU00SMS0411089 | ||||||
| FU00SMS0411102(1) | ||||||
| FU00SMS0411102(2) |

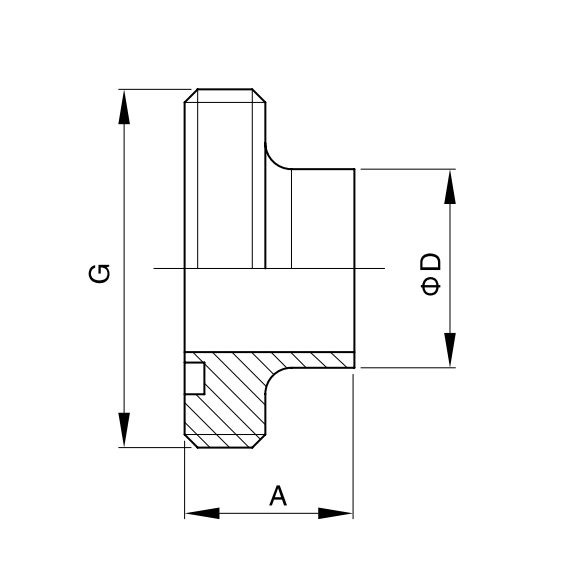

SMS Male
| Material Code | Size | A | D | G |
|---|---|---|---|---|
| FU00SMS0411025 | 25 | 19.0 | 25.0 | RD40×1/6 |
| FU00SMS0411038 | 38 | 23.0 | 38.0 | RD60×1/6 |
| FU00SMS0411051 | 51 | 23.0 | 51.0 | RD70×1/6 |
| FU00SMS0411063 | 63 | 27.0 | 63.5 | RD85×1/6 |
| FU00SMS0411076 | 76 | 27.0 | 76.1 | RD98×1/6 |
| FU00SMS0411102(1) | 102(1) | 27.0 | 101.6 | RD125×1/6 |
| FU00SMS0411102(2) | 102(2) | 30.0 | 101.6 | RD132×1/6 |
SMS Liner
| Material Code | Size | A | D | D1 |
|---|---|---|---|---|
| FU00SMS0411025 | 19 | 12.0 | 19.1 | 30.8 |
| FU00SMS0411038 | 25 | 13.0 | 25.4 | 35.7 |
| FU00SMS0411051 | 32 | 13.0 | 31.8 | 43.7 |
| FU00SMS0411063 | 38 | 13.0 | 38.1 | 55.7 |
| FU00SMS0411076 | 51 | 13.0 | 50.8 | 65.7 |
| FU00SMS0411102(1) | 63 | 14.0 | 63.5 | 80.7 |
| FU00SMS0411102(2) | 76 | 14.0 | 76.2 | 93.5 |
| 89 | 15.0 | 88.9 | 105.5 | |
| 102(1) | 17.0 | 101.6 | 120.5 | |
| 102(2) | 17.0 | 101.6 | 127.5 |
Features
- Designed to SMS food sanitary fitting standards. Sealing profile and dimensions match SMS pipeline systems with good interchangeability for retrofitting existing food lines and new project support.
- Three-piece split assembly structure. Axial compression generated by tightening round nut realizes face sealing. Simple disassembly enables pipe separation without cutting.
- Polished inner bore with rounded flow transition reduces adhesion and residue of viscous media, simplifies cleaning and satisfies hygiene control requirements of food production.
- Stainless steel substrate resists corrosion from organic acids and beverage media, enduring repeated flushing by common food-line cleaning agents without rusting.
- Precisely lathed threads ensure smooth and stable engagement. Adequate compression force is retained after many assembly cycles without obvious sealing degradation.
- Optimized for typical food production conditions. The structure allows visual inspection of sealing zone for quick on-site leakage checking.
Working Principle
The SMS sanitary union relies on axial compression generated when the round nut advances along the threaded body to achieve face sealing. During assembly, place the sanitary gasket between flat ferrule and threaded body. Rotate the round nut to compress the gasket, enabling uniform contact between gasket and both sealing faces and forming a tight barrier against medium leakage and external contamination ingress. Process media flows through continuous smooth inner bore. Rounded flow path minimizes vortex and allows full coverage of inner wall by CIP cleaning liquid for residue removal. This structure absorbs pressure surges caused by start-stop cycles of food pipelines and reduces instantaneous impact damage on sealing surfaces. When cleaning or equipment removal is required, loosening the round nut quickly separates pipeline segments for sanitation or component replacement, meeting maintenance requirements of SMS food hygienic systems.
