Tri-clamp Male Adapters
KINGMAN Tri-clamp Male Adapters is a multi-purpose hygienic pipe adapter combining tri-clamp end and external thread structure. One end is designed as standard tri-clamp ferrule for quick clamp connection, while the other end comes with external thread to connect threaded pipe fittings, hoses or threaded ports on tanks. This versatile fitting bridges quick-clamp pipeline sections and threaded connections, widely used in food, beverage, dairy, biopharmaceutical and fine chemical sanitary systems. It offers flexible transition between different connection types, simplifying on-site piping layout and supporting routine inspection, sampling and CIP cleaning operations.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Tri-clamp Threaded Adapters |
| Connection Type | Tri-clamp Sanitary Clamp |
| Material | 304/316L |
| Clamp Sizes | DN15–DN100 (approx. 1/2"–4") Thread Types NPT, BSP, Metric, Custom Threads |
| Surface Finish | Polished / Sanitary Finish Gasket Compatibility EPDM, PTFE, Silicone, Viton |
| Application | Sanitary and Process Fluid Systems |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

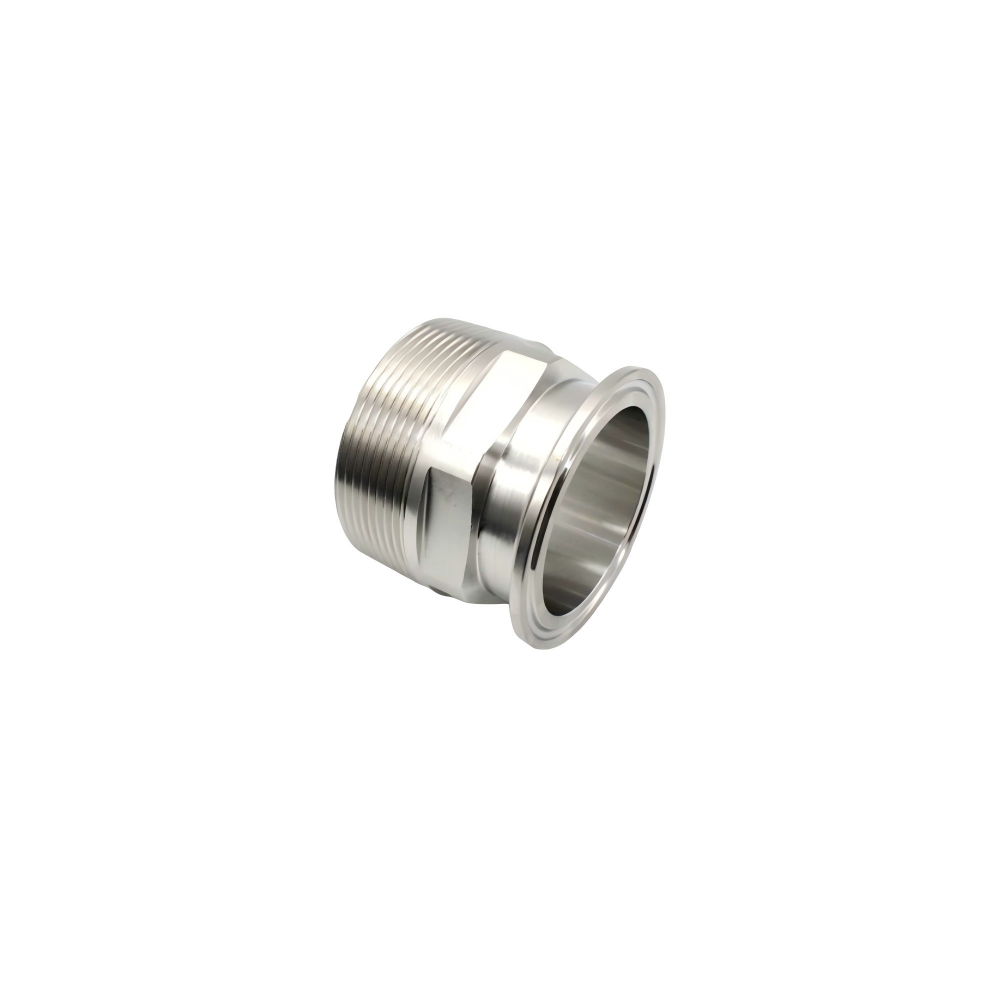

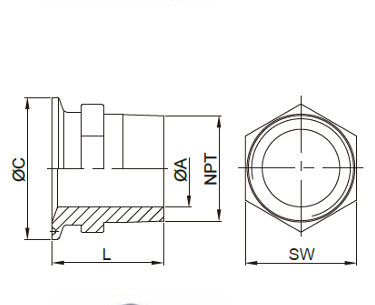

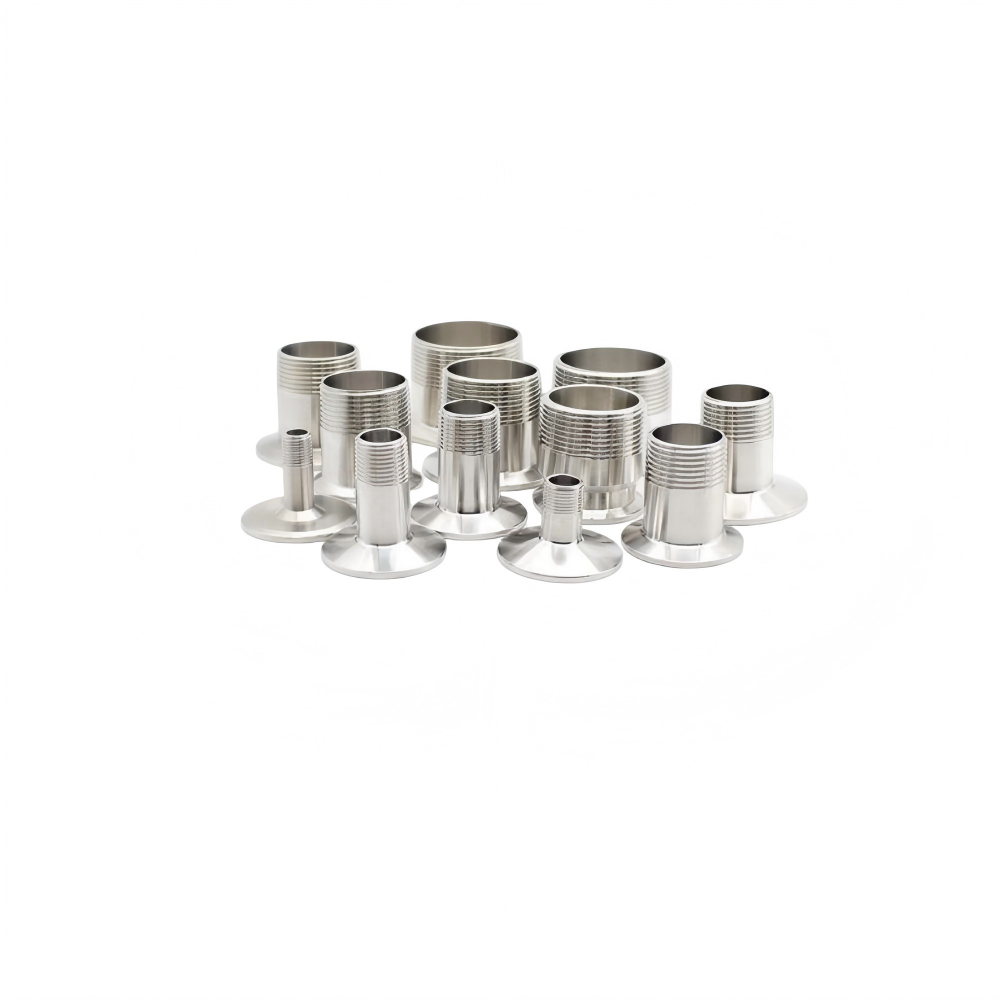

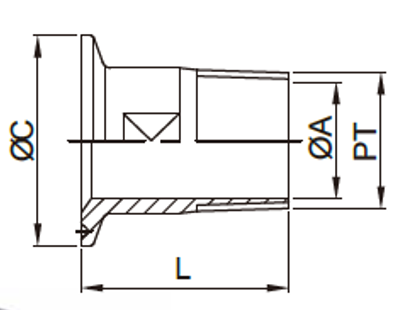

Dimensions
3A Standard
| Material Code | SIZE | ØA | ØB | NPT | L |
|---|---|---|---|---|---|
| FC013A21MP0411050 | 1/2" | 9.4 | 12.7 | 1/2" | 41.3 |
| FC013A21MP0411075 | 3/4" | 15.75 | 19.05 | 3/4" | 41.3 |
| FC013A21MP0411100 | 1.0" | 22.1 | 25.4 | 1.0" | 44.5 |
| FC013A21MP0411150 | 1.5" | 34.8 | 38.1 | 1.5" | 44.5 |
| FC013A21MP0411200 | 2.0" | 47.5 | 50.8 | 2.0" | 46 |
| FC013A21MP0411250 | 2.5" | 60.2 | 63.5 | 2.5" | 58.7 |
| FC013A21MP0411300 | 3.0" | 72.9 | 76.2 | 3.0" | 63.5 |
| FC013A21MP0411400 | 4.0" | 97.4 | 101.6 | 4.0" | 65.1 |
| FC013A21MP0411500 | 6.0" | 146.9 | 152.4 | 6.0" | 76.2 |
| FC013A21MP0411600 |
3A Standard
| Material Code | SIZE | ØA | ØC | PT | L |
|---|---|---|---|---|---|
| FC043ACT0411100025 | 1.0"&1.5"*1/4" | 8.56 | 50.5 | 1/4" | 40 |
| FC043ACT04111000375 | 1.0"&1.5"*3/8" | 12.7 | 50.5 | 3/8" | 40 |
| FC043ACT0411100050 | 1.0"&1.5"*1/2" | 15.5 | 50.5 | 1/2" | 45 |
| FC043ACT0411100075 | 1.0"&1.5"*3/4" | 21.3 | 50.5 | 3/4" | 45 |
| FC043ACT0411100100 | 1"&1.5"*1.0" | 28 | 50.5 | 1.0" | 50 |
| FC043ACT0411100125 | 1.0"&1.5"*1 1/4" | 34.8 | 50.5 | 1 1/4" | 50 |
| FC043ACT0411200100 | 2.0"*1.0" | 28 | 64 | 1.0" | 50 |
| FC043ACT0411200125 | 2.0"*1 1/4" | 35.7 | 64 | 1 1/4" | 50 |
| FC043ACT0411200150 | 2.0"*1.5" | 41.8 | 64 | 1 1/2" | 50 |
| FC043ACT0411200200 | 2.0"*2.0" | 47.5 | 64 | 2.0" | 54.7 |
3A Standard
| Material Code | SIZE | ØA | ØC | NPT | L | SW |
|---|---|---|---|---|---|---|
| FC053A21MP0411050050 | 1/2"*1/2" | 9.5 | 25 | 1/2" | 45 | 24 |
| FC053A21MP0411075025 | 3/4"*1/4" | 7.95 | 25 | 1/4" | 45 | 24 |
| FC053A21MP0411075050 | 3/4"*1/2" | 15.8 | 25 | 1/2" | 45 | 24 |
| FC053A21MP0411075075 | 3/4"*3/4" | 15.8 | 25 | 3/4" | 45 | 30 |
| FC053A21MP0411100025 | 1.0"&1.5"*1/4" | 3.18 | 50.5 | 1/4" | 40 | 17 |
| FC053A21MP04111000375 | 1.0"&1.5"*3/8" | 6.35 | 50.5 | 3/8" | 40 | 19 |
| FC053A21MP0411100050 | 1.0"&1.5"*1/2" | 9.5 | 50.5 | 1/2" | 40 | 24 |
| FC053A21MP0411100100 | 1.0"&1.5"*3/4" | 15.8 | 50.5 | 3/4" | 45 | 32 |
| FC053A21MP0411100025 | 1"&1.5"*1.0" | 22.2 | 50.5 | 1.0" | 50 | 35 |
| FC053A21MP0411100150 | 1.0"&1.5"*1 1/4" | 28.6 | 50.5 | 1 1/4" | 50 | 50 |
| FC053A21MP0411100200 | 1.0"&1.5"*1.5" | 34.9 | 50.5 | 1.5" | 50 | 50 |
| FC053A21MP0411200025 | 1.0"&1.5"*2.0" | 47.6 | 50.5 | 2.0" | 55 | 65 |
| FC053A21MP04112000375 | 2.0"*1/4" | 3.18 | 64 | 1/4" | 40 | 50 |
| FC053A21MP0411200050 | 2.0"*3/8" | 6.35 | 64 | 3/8" | 40 | 50 |
| FC053A21MP0411200075 | 2.0"*1/2" | 9.5 | 64 | 1/2" | 40 | 50 |
| FC053A21MP0411200100 | 2.0"*3/4" | 15.8 | 64 | 3/4" | 50 | 50 |
| FC053A21MP0411200150 | 2.0"*1.0" | 22.2 | 64 | 1.0" | 50 | 50 |
| FC053A21MP0411200200 | 2.0"*1.5" | 34.9 | 64 | 1.5" | 50 | 50 |
| FC053A21MP0411200250 | 2.0"*2.0" | 47.6 | 64 | 2.0" | 55 | 65 |
| 2.0"*2.5" | 60.3 | 64 | 2.5" | 60 | 65 |
Features
- Dual-end integrated design, tri-clamp end on one side and external thread on the other, realizing seamless conversion between clamp connection and threaded connection.
- Premium stainless steel material (304 /316L optional). The inner flow passage keeps smooth without dead corners, effectively reducing material adhesion and lowering risks of bacterial accumulation.
- Precisely machined threads with uniform thread profile, ensuring smooth assembly and reliable connection with matched female threaded fittings.
- Solid one-piece construction with stable mechanical performance, capable of bearing normal working pressure and resisting vibration during fluid transmission.
- Good resistance to various process media and cleaning liquids. It can withstand repeated CIP cleaning and high-temperature SIP sterilization without performance deterioration.
- Multiple sizes and thread specifications available. Flexible for different pipeline layout requirements, easy to install and replace on production sites.
Working Principle
The tri-clamp end of the ferrule is butted against matching sanitary ferrule, sealed with gasket and locked by sanitary clamp to form a quick-disassembly joint. The external threaded end is screwed into matched female threaded port to realize firm connection. It transmits fluid between the two different connection forms. When disassembly is needed, release the clamp to separate the tri-clamp side, or unscrew the threaded side to disconnect from threaded fittings. The integrated structure guarantees stable flow path and reliable sealing at both ends during operation.
Why Choose KINGMAN
Low-Risk Specification Trial
Samples and smaller quantities let you validate the male thread and clamp interface before committing the adapter to recurring production.
More Than One Material
304, 316L, AL6XN, Hastelloy and Alloy 22 give buyers options when media or corrosion conditions require a different material grade.
Export Terms to Match Your Process
Choose EXW, FOB, CIF or CFR based on how your purchasing team prefers to control freight and import arrangements.
