Tri-clamp Female Adapter

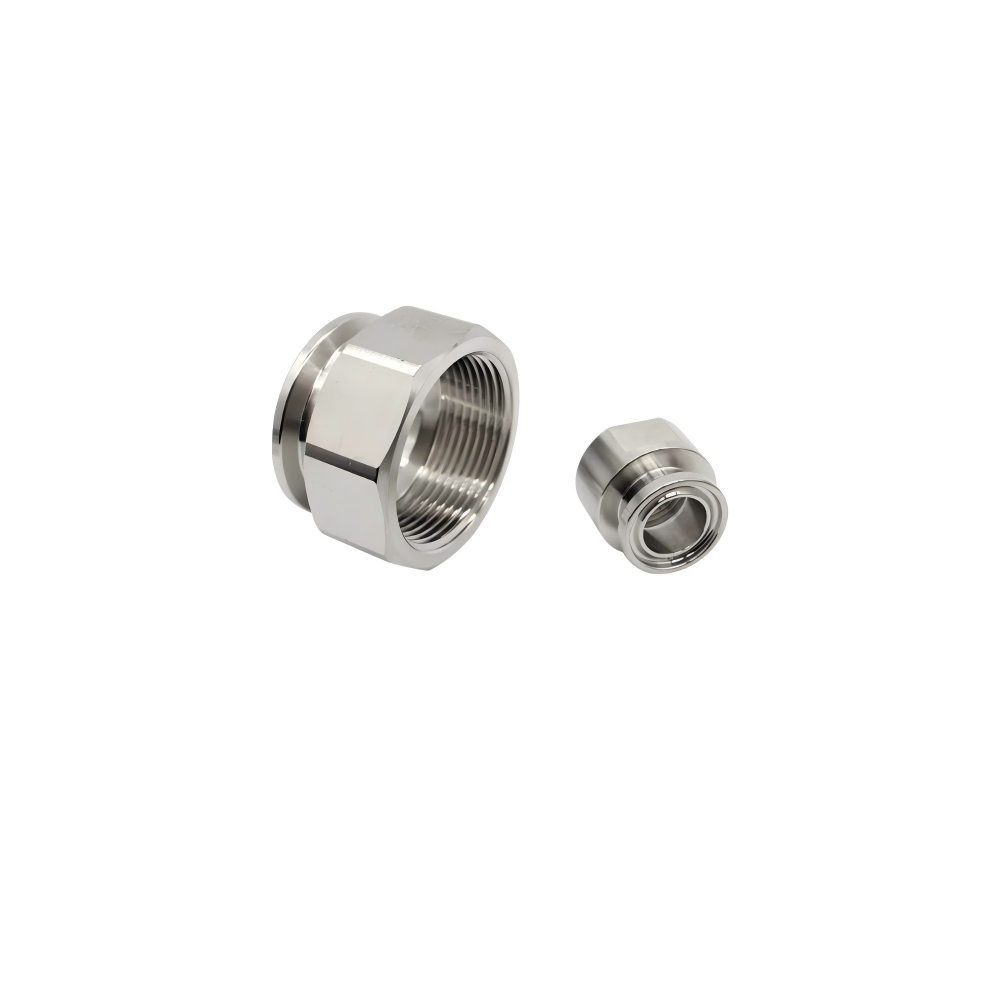

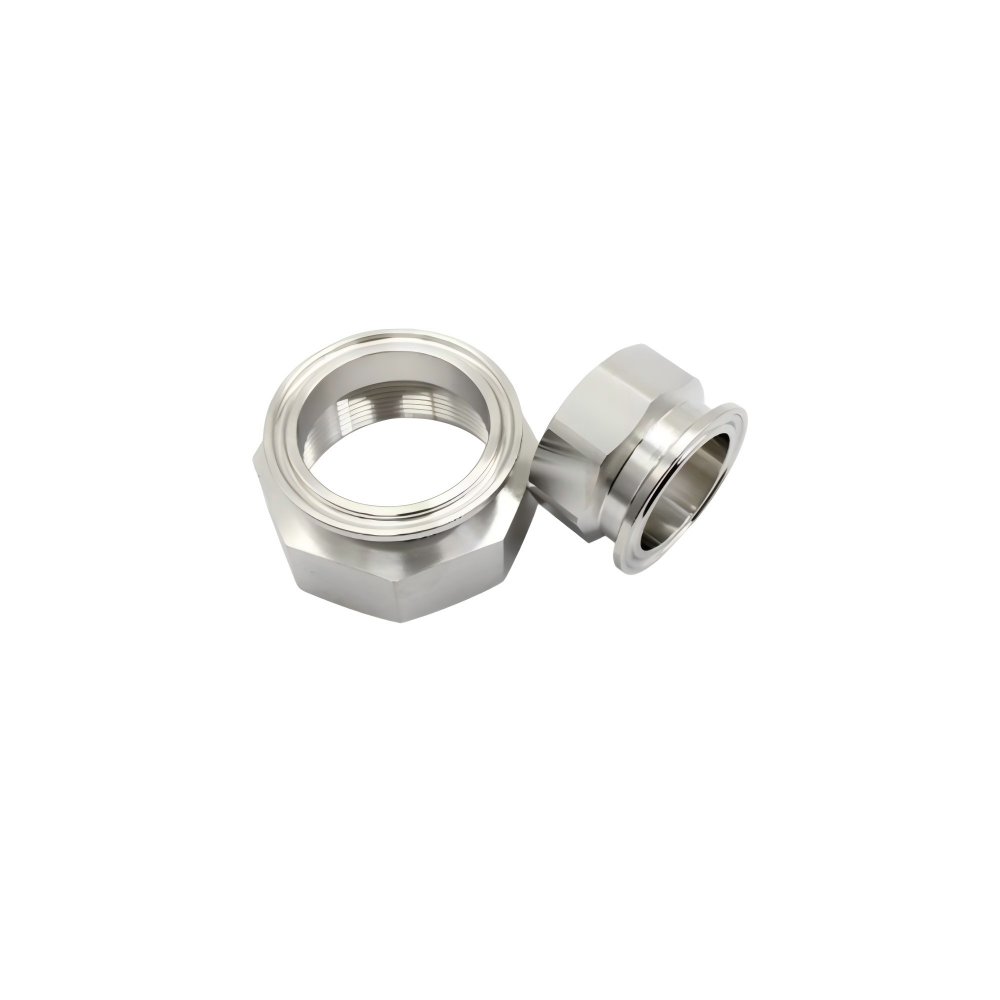

KINGMAN Tri-clamp Female Adapter is a hygienic transition fitting designed to connect tri-clamp pipeline sections with female threaded ports. One end features tri-clamp ferrule profile for fast clamp assembly, while the other end is machined with internal thread to connect male threaded pipe, hose or tank ports. It acts as a flexible bridge between quick-clamp sanitary piping and threaded connections. Widely used in food, beverage, dairy, biopharmaceutical and fine chemical fluid systems. It simplifies pipeline layout, enables quick disassembly for routine inspection, material sampling and periodic CIP cleaning cycles.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Tri-clamp Threaded Adapters |
| Connection Type | Tri-clamp Sanitary Clamp |
| Material | 304/316L |
| Clamp Sizes | DN15–DN100 (approx. 1/2"–4") Thread Types NPT, BSP, Metric, Custom Threads |
| Surface Finish | Polished / Sanitary Finish Gasket Compatibility EPDM, PTFE, Silicone, Viton |
| Application | Sanitary and Process Fluid Systems |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
3A Standard

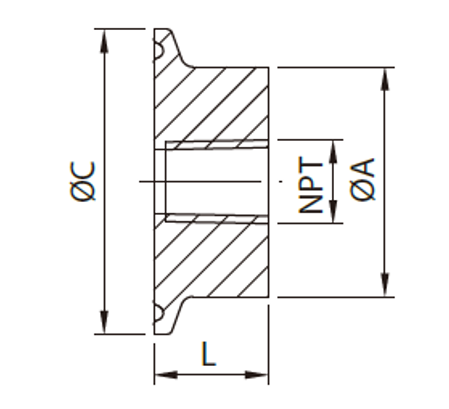

| Material Code | SIZE | ØA | ØC | L | NPT |
|---|---|---|---|---|---|
| FC063A22MP04100025 | 1.0"*1.51/4" | 38.1 | 50.5 | 19 | 1/4" |
| FC063A22MP04100037 | 1.0"*1.5**3/8" | 38.1 | 50.5 | 19 | 3/8" |
| FC063A22MP04100050 | 1.0"*1.51/2" | 38.1 | 50.5 | 19 | 1/2" |
| FC063A22MP04100100 | 1.0"*1.5**3/4" | 38.1 | 50.5 | 19 | 3/4" |
| FC063A22MP04200025 | 1.0"*1.5**1.0" | 40 | 50.5 | 19 | 1.0" |
| FC063A22MP04200037 | 2.0"*1/4" | 50.8 | 64 | 19 | 1/4" |
| FC063A22MP04200050 | 2.0"*3/8" | 50.8 | 64 | 19 | 3/8" |
| FC063A22MP04200075 | 2.0"*1/2" | 50.8 | 64 | 19 | 1/2" |
| FC063A22MP04200100 | 2.0"*3/4" | 50.8 | 64 | 19 | 3/4" |
| FC063A22MP04200150 | 2.0"*1.0" | 50.8 | 64 | 19 | 1.0" |
| FC063A22MP04250100 | 2.0"*1.5" | 53 | 64 | 19 | 1.5" |
| FC063A22MP04250150 | 2.5"*1.0" | 63.5 | 77.5 | 35 | 1.0" |
| FC063A22MP04250200 | 2.5"*1.5" | 63.5 | 77.5 | 35 | 1.5" |
| FC063A22MP04300100 | 2.5"*2.0" | 65 | 77.5 | 35 | 2.0" |
| FC063A22MP04300150 | 3.0"*1.0" | 76.2 | 91 | 35 | 1.0" |
| FC063A22MP04300200 | 3.0"*1.5" | 76.2 | 91 | 35 | 1.5" |
| FC063A22MP04400100 | 3.0"*2.0" | 76.2 | 91 | 35 | 2.0" |
| FC063A22MP04400150 | 4.0"*1.0" | 101.6 | 119 | 35 | 1.0" |
| FC063A22MP04400200 | 4.0"*1.5" | 101.6 | 119 | 35 | 1.5" |
| FC063A22MP04400250 | 4.0"*2.0" | 101.6 | 119 | 35 | 2.0" |
| FC063A22MP04400300 | 4.0"*2.5" | 101.6 | 119 | 35 | 2.5" |
| FC063A23BMP04100012 | 4.0"*3.0" | 101.6 | 119 | 35 | 3.0" |
| FC063A23BMP04100025 | |||||
| FC063A23BMP04100037 | |||||
| FC063A23BMP04100050 | |||||
| FC063A23BMP04150012 | |||||
| FC063A23BMP04150025 | |||||
| FC063A23BMP04150037 | |||||
| FC063A23BMP04150050 | |||||
| FC063A23BMP04150075 | |||||
| FC063A23BMP04150100 | |||||
| FC063A23BMP04200050 | |||||
| FC063A23BMP04200075 | |||||
| FC063A23BMP04200100 | |||||
| FC063A23BMP04200150 | |||||
| FC063A23BMP04250050 | |||||
| FC063A23BMP04250075 | |||||
| FC063A23BMP04250100 | |||||
| FC063A23BMP04250150 | |||||
| FC063A23BMP04250200 | |||||
| FC063A23BMP04300050 | |||||
| FC063A23BMP04300075 | |||||
| FC063A23BMP04300100 | |||||
| FC063A23BMP04300150 | |||||
| FC063A23BMP04300200 | |||||
| FC063A23BMP04400075 | |||||
| FC063A23BMP04400100 | |||||
| FC063A23BMP04400150 | |||||
| FC063A23BMP04400200 | |||||
| FC063A23BMP04400250 | |||||
| FC063A23BMP04400300 | |||||
| FC073A22MP04050025 | |||||
| FC073A22MP04050050 | |||||
| FC073A22MP04075050 | |||||
| FC073A22MP04075075 | |||||
| FC073A22MP04100125 | |||||
| FC073A22MP04100150 | |||||
| FC073A22MP04100200 | |||||
| FC073A22MP04200200 | |||||
| FC073A22MP04250250 | |||||
| FC073A22MP04300250 | |||||
| FC073A22MP04300300 | |||||
| FC073A22MP04400400 |
3A Standard

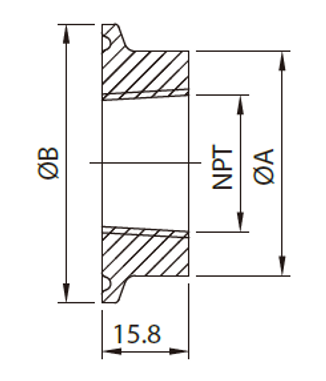

| SIZE | ØA | ØB | NPT |
|---|---|---|---|
| 1.0"*1/8" | 25.4 | 50.5 | 1/8" |
| 1.0"*1/4" | 25.4 | 50.5 | 1/4" |
| 1.0"*3/8" | 25.4 | 50.5 | 3/8" |
| 1.0"*1/2" | 25.4 | 50.5 | 1/2" |
| 1.5"*1/8" | 38.1 | 50.5 | 1/8" |
| 1.5"*1/4" | 38.1 | 50.5 | 1/4" |
| 1.5"*3/8" | 38.1 | 50.5 | 3/8" |
| 1.5"*1/2" | 38.1 | 50.5 | 1/2" |
| 1.5"*3/4" | 38.1 | 50.5 | 3/4" |
| 1.5"*1.0" | 38.1 | 50.5 | 1.0" |
| 2.0"*1/2" | 50.8 | 64 | 1/2" |
| 2.0"*3/4" | 50.8 | 64 | 3/4" |
| 2.0"*1.0" | 50.8 | 64 | 1.0" |
| 2.0"*1.5" | 50.8 | 64 | 1.5" |
| 2.5"*1/2" | 63.5 | 77.5 | 1/2" |
| 2.5"*3/4" | 63.5 | 77.5 | 3/4" |
| 2.5"*1.0" | 63.5 | 77.5 | 1.0" |
| 2.5"*1.5" | 63.5 | 77.5 | 1.5" |
| 2.5"*2.0" | 63.5 | 77.5 | 2.0" |
| 3.0"*1/2" | 76.2 | 91 | 1/2" |
| 3.0"*3/4" | 76.2 | 91 | 3/4" |
| 3.0"*1.0" | 76.2 | 91 | 1.0" |
| 3.0"*1.5" | 76.2 | 91 | 1.5" |
| 3.0"*2.0" | 76.2 | 91 | 2.0" |
| 4.0"*3/4" | 101.6 | 119 | 3/4" |
| 4.0"*1.0" | 101.6 | 119 | 1.0" |
| 4.0"*1.5" | 101.6 | 119 | 1.5" |
| 4.0"*2.0" | 101.6 | 119 | 2.0" |
| 4.0"*2.5" | 101.6 | 119 | 2.5" |
| 4.0"*3.0" | 101.6 | 119 | 3.0" |
3A Standard

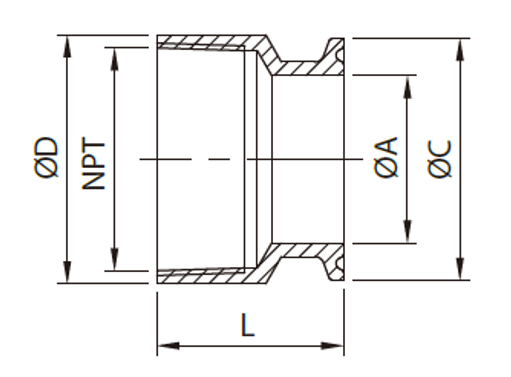

| SIZE | ØA (1.0") | ØA (1.5") | ØC | ØD | NPT | L |
|---|---|---|---|---|---|---|
| 1/2"*1/4" | 9.5 | 9.5 | 25 | 30 | 1/4" | 33 |
| 1/2"*1/2" | 9.5 | 9.5 | 25 | 30 | 1/2" | 33 |
| 3/4"*1/2" | 15.75 | 15.75 | 25 | 30 | 1/2" | 38.1 |
| 3/4"*3/4" | 15.8 | 15.8 | 25 | 31 | 3/4" | 33 |
| 1.0"*&1.5"*1.25" | 22.2 | 34.9 | 50.5 | 52 | 1.25" | 39 |
| 1.0"*&1.5"*1.5" | 22.2 | 34.9 | 50.5 | 54 | 1.5" | 39 |
| 1.0"*&1.5"*2.0" | 22.2 | 34.9 | 50.5 | 65 | 2.0" | 40 |
| 2.0"*2.0" | 47.6 | 47.6 | 64 | 65 | 2.0" | 40 |
| 2.5"*2.5" | 60.3 | 60.3 | 77.5 | 80 | 2.5" | 50 |
| 3.0"*2.5" | 73 | 73 | 91 | 95 | 2.5" | 50 |
| 3.0"*3.0" | 73 | 73 | 91 | 95 | 3.0" | 52 |
| 4.0"*4.0" | 97.6 | 97.6 | 119 | 120 | 4.0" | 54 |
Features
- Integrated dual-structure design, combining tri-clamp end and internal thread end, realizing smooth transition between clamp connection and threaded connection.
- Made of premium stainless steel (304 /316L optional). The internal flow channel remains continuous and smooth without dead zones, minimizing material buildup and reducing the risk of microbial growth.
- Precisely machined internal threads with uniform tooth form. It mates smoothly with matched external threaded fittings, ensuring stable connection and avoiding jamming during repeated assembly.
- Hexagonal outer body provides solid gripping surface for wrench operation, making installation and disassembly easier during on-site piping work.
- Excellent corrosion resistance against various process materials and cleaning agents. It can endure repeated CIP washing and high-temperature SIP sterilization without performance loss.
- A full range of sizes and thread types available, adaptable to diverse on-site piping requirements, simple to install and replace.
Working Principle
The tri-clamp side of the adapter aligns with a matching sanitary ferrule. A gasket is placed between the sealing faces, then locked by sanitary clamp to form a removable hygienic joint. The female threaded end screws onto matched male threaded fittings to create a tight threaded connection. Fluid can circulate through the continuous inner passage. When maintenance or cleaning is required, users can release the clamp to separate the tri-clamp side, or unscrew the threaded joint. The integrated structure ensures stable fluid transmission and reliable sealing at both ends under working pressure.
Why Choose KINGMAN
Thread and Clamp Check
Share the clamp size, female thread requirement and mating component information before ordering so both connection ends can be reviewed together.
Sample Before Standardizing
Order a small quantity first to confirm interface fit and workmanship before adding the adapter to repeat equipment or inventory purchasing.
100% Final Inspection
Finished sanitary adapters are checked before shipment, reducing the risk of dimensional or appearance issues entering your assembly line.
