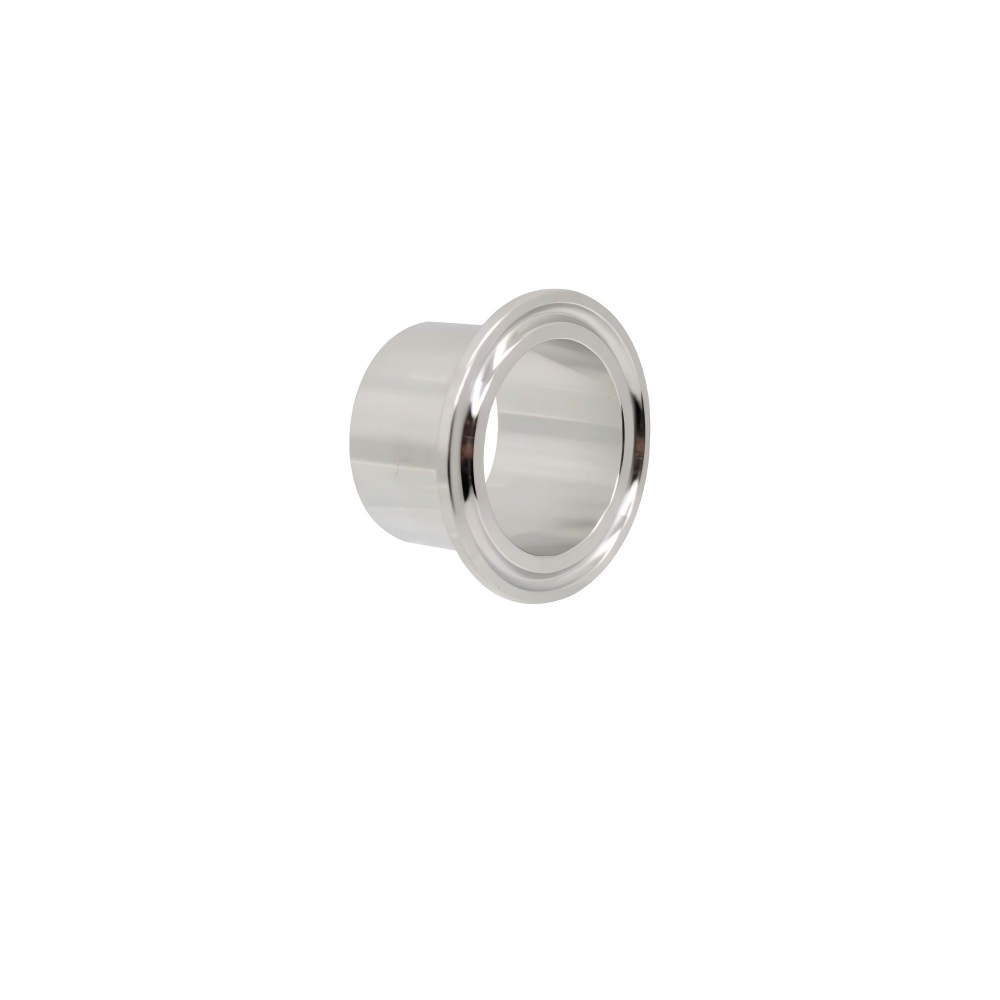

14MPW Heavy Tank Ferrule
KINGMAN Sanitary 14MPW Heavy Tank Ferrule is a hygienic pipe end adapter manufactured according to 3A, SMS and DIN sanitary standards. It features an extended welding section for convenient butt welding to pipelines or tank nozzles. Matched with sanitary tri-clamps and hygienic gaskets, it achieves quick detachable pipeline connections. Widely used in food, beverage, dairy, biopharmaceutical and fine chemical sanitary piping systems. The long welding end improves welding operability on site and facilitates pipeline assembly, disassembly, inspection and CIP cleaning.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary 14MPW Heavy Tank Ferrule |
| Size Range | 1"–4" |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

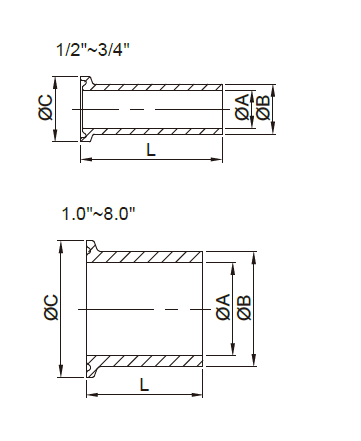

Dimensions
3A Standard
| Material Code | SIZE | ØA | ØB | ØC | L |
|---|---|---|---|---|---|
| FC013A14MPW0411050 | 1/2" | 8.15 | 12.75 | 25 | 54 |
| FC013A14MPW0411075 | 3/4" | 14.6 | 19.05 | 25 | 54 |
| FC013A14MPW0411100 | 1.0" | 22.1 | 29.5 | 50.5 | 41.3 |
| FC013A14MPW0411150 | 1.5" | 34.8 | 42.6 | 50.5 | 41.3 |
| FC013A14MPW0411200 | 2.0" | 47.5 | 55.7 | 64 | 44.5 |
| FC013A14MPW0411250 | 2.5" | 60.2 | 68.8 | 77.5 | 44.5 |
| FC013A14MPW0411300 | 3.0" | 72.9 | 81.9 | 91 | 46.1 |
| FC013A14MPW0411400 | 4.0" | 97.4 | 108.1 | 119 | 54 |
| FC013A14MPW0411600 | 6.0" | 146.25 | 157.3 | 166.87 | 63.5 |
| FC013A14MPW0411800 | 8.0" | 197.05 | 208.1 | 217.67 | 63.5 |
Features
- Manufactured in accordance with 3A, SMS and DIN sanitary standards, standard tri-clamp sealing profile, fully compatible with standard sanitary clamps and gaskets.
- High-quality stainless steel material (304 /316L optional), smooth internal structure without sanitary dead corners, reducing material residue and microbial growth.
- Extended welding spool design, offering more space for welding operation, lowering welding deformation risk and improving welding quality during on-site installation.
- Precision machining with stable dimensional tolerance and excellent concentricity, ensuring uniform gasket compression and consistent sealing effect during clamping.
- Good resistance to corrosion from process media and cleaning agents, compatible with CIP online cleaning and SIP steam sterilization, meeting GMP and FDA hygienic requirements.
- Complete specifications, customizable length and wall thickness, suitable for sanitary pipelines and tank outlets with complex welding conditions.
Working Principle
The long weld end tri-clamp ferrule is pre-welded onto the end of pipeline or tank branch. During pipeline assembly, two ferrules on the pipe ends are butted face to face, and a sanitary gasket is placed between the two sealing ridges. Tighten the sanitary tri-clamp to generate uniform axial compression force. The sealing ridges of two ferrules compress the gasket tightly to form a reliable hygienic seal, preventing medium leakage and blocking external contaminants entering the pipeline. The longer welded section makes field welding easier. When disassembly is required for cleaning or inspection, release the clamp to separate the pipeline. Standard dimensions guarantee stable sealing performance after repeated assembly and disassembly.
