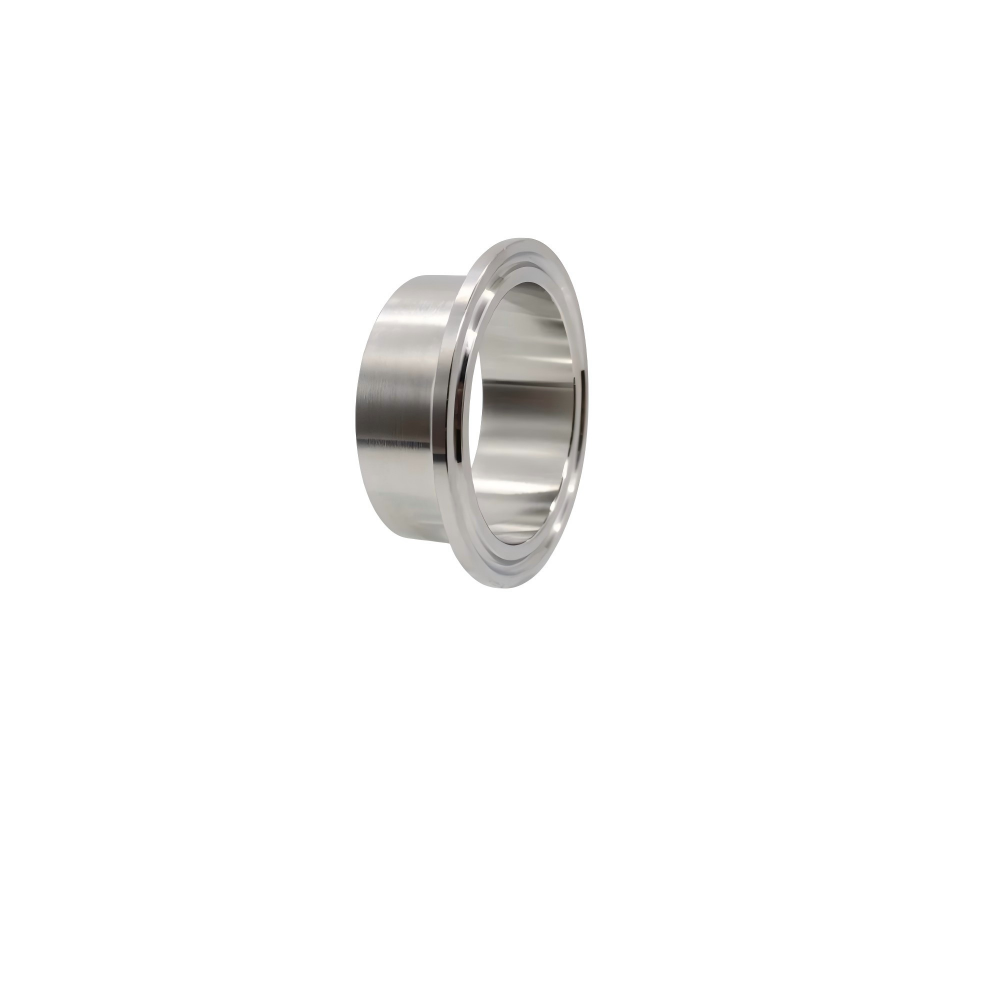

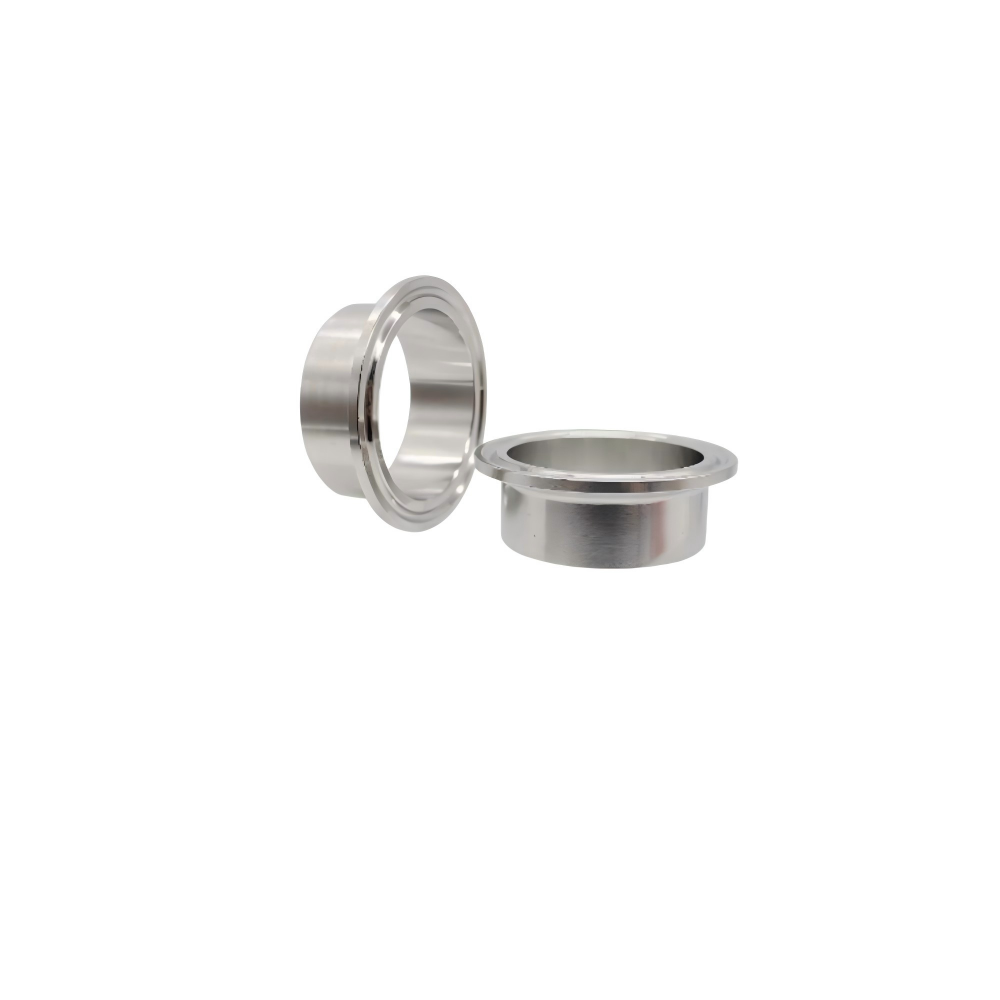

Tri-clamp Ferrule
KINGMAN Sanitary Tri-clamp Ferrule is a hygienic pipe end adapter manufactured according to 3A, ISO and DIN sanitary standards. It can be butt-welded to the end of stainless steel pipes or tank nozzles. Cooperating with sanitary tri-clamps and hygienic gaskets, it enables quick detachable pipeline connections. Widely used in food, beverage, dairy, biopharmaceutical and fine chemical sanitary piping systems. It facilitates fast pipeline assembly, disassembly, inspection and CIP cleaning.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Tri-clamp Ferrule |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

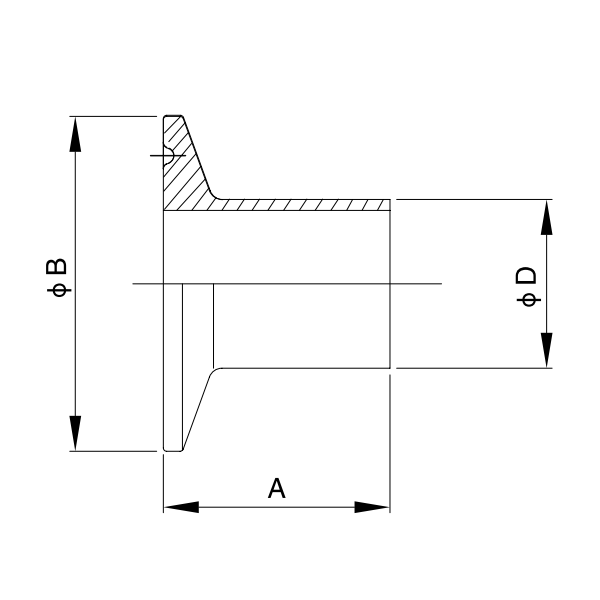

DIN Standard
| Material Code | Size | A | B | D |
|---|---|---|---|---|
| FC01DIN14WMP0411010 | DN10 | 18.0 | 34.0 | 12.0 |
| FC01DIN14WMP0411015 | DN15 | 18.0 | 34.0 | 18.0 |
| FC01DIN14WMP0411020 | DN20 | 18.0 | 34.0 | 22.0 |
| FC01DIN14WMP0411025 | DN25 | 21.5 | 50.5 | 28.0 |
| FC01DIN14WMP0411032 | DN32 | 21.5 | 50.5 | 34.0 |
| FC01DIN14WMP0411040 | DN40 | 21.5 | 50.5 | 40.0 |
| FC01DIN14WMP0411050 | DN50 | 28.0 | 64 | 52.0 |
| FC01DIN14WMP0411065 | DN65 | 28.0 | 91.0 | 70.0 |
| FC01DIN14WMP0411080 | DN80 | 28.0 | 106.0 | 85.0 |
| FC01DIN14WMP0411100 | DN100 | 28.0 | 119.0 | 104.0 |
| FC01DIN14WMP0411125 | DN125 | 38.0 | 145.0 | 129.0 |
| FC01DIN14WMP0411150 | DN150 | 38.0 | 167.0 | 154.0 |

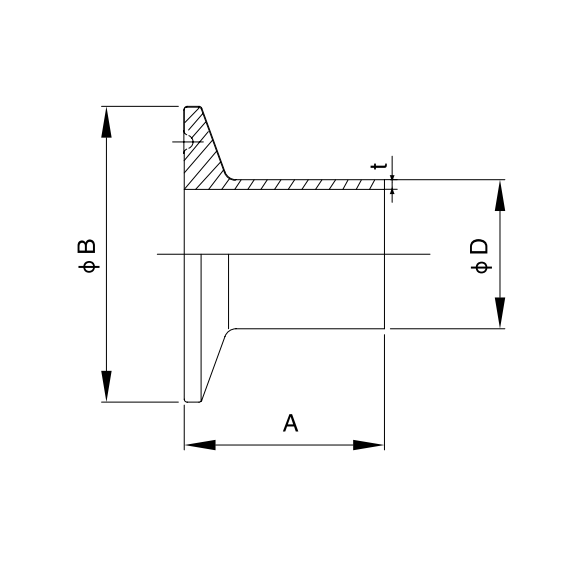

SMS Standard
| Material Code | Size | A | B | D | t | t |
|---|---|---|---|---|---|---|
| FC01SMS14WMP0411012 | Φ12 | 21.5 | 25.4 | 12.7 | 1.25 | 1.5 |
| FC01SMS14WMP0411019 | Φ19 | 21.5 | 50.5 | 19.1 | 1.25 | 1.5 |
| FC01SMS14WMP0411025 | Φ25 | 21.5 | 50.5 | 25.4 | 1.25 | 1.5 |
| FC01SMS14WMP0411032 | Φ32 | 21.5 | 50.5 | 31.8 | 1.25 | 1.5 |
| FC01SMS14WMP0411038 | Φ38 | 21.5 | 50.5 | 38.1 | 1.25 | 1.5 |
| FC01SMS14WMP0411051 | Φ51 | 21.5 | 64.0 | 50.8 | 1.25 | 1.5 |
| FC01SMS14WMP0411063 | Φ63 | 21.5 | 77.5 | 63.5 | 1.5 | 2.0 |
| FC01SMS14WMP0411076 | Φ76 | 21.5 | 91.0 | 76.3 | 2.0 | 2.0 |
| FC01SMS14WMP0411089 | Φ89 | 21.5 | 106.0 | 89.0 | 2.0 | 2.0 |
| FC01SMS14WMP0411102 | Φ102 | 21.5 | 119.0 | 101.6 | 2.0 | 2.0 |

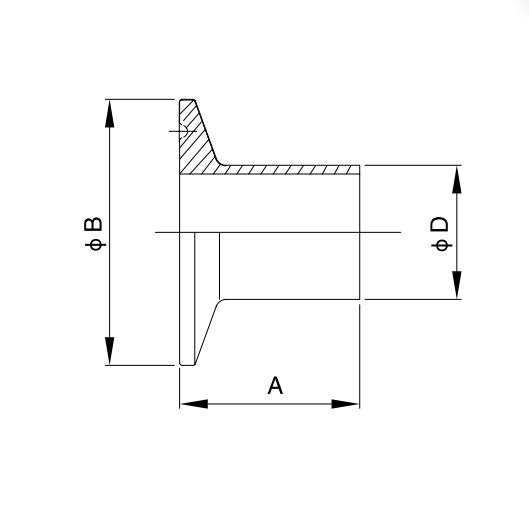

ISO Standard
| Material Code | Size | A | B | D |
|---|---|---|---|---|
| FC01ISO14WMP0411100 | 1" | 21.5 | 50.5 | 25.4 |
| FC01ISO14WMP0411125 | 1 1/4" | 21.5 | 50.5 | 31.8 |
| FC01ISO14WMP0411150 | 1 1/2" | 21.5 | 50.5 | 38.1 |
| FC01ISO14WMP0411200 | 2" | 21.5 | 64 | 50.8 |
| FC01ISO14WMP0411250 | 2 1/2" | 21.5 | 77.5 | 63.5 |
| FC01ISO14WMP0411300 | 3" | 21.5 | 91.0 | 76.3 |
| FC01ISO14WMP0411350 | 3 1/2" | 21.5 | 106.0 | 89.0 |
| FC01ISO14WMP0411400 | 4" | 21.5 | 119.0 | 101.6 |
Features
- Produced in compliance with 3A, SMS ISO and DIN sanitary standards, standard tri-clamp sealing profile, high compatibility with all standard sanitary clamps and gaskets.
- High-quality stainless steel material (304 /316L optional), smooth internal structure without sanitary dead corners, minimizing material residue and bacterial growth.
- Precise machining with stable dimensional tolerance and good concentricity, ensuring uniform compression of the gasket during clamping for consistent sealing performance.
- Integral structure with high mechanical strength, good pressure resistance and impact resistance, stable performance under long-term continuous operation.
- Excellent corrosion resistance to various process media and cleaning agents, compatible with CIP online cleaning and SIP steam sterilization, meeting GMP and FDA hygienic requirements.
- Full range of sizes available, customizable wall thickness and specifications, simple butt welding installation for sanitary piping and tank outlets.
Working Principle
The sanitary tri-clamp ferrule is welded onto the end of pipeline or tank branch in advance. During pipe assembly, two ferrules from separate pipe ends are butted face to face. A sanitary gasket is placed between the two sealing ridges. When the sanitary tri-clamp is tightened, uniform axial pressure is applied. The sealing ridges of two ferrules squeeze the gasket tightly to form a reliable hygienic seal, preventing medium leakage and stopping external contaminants from entering the pipeline. When disassembly is required for cleaning or inspection, simply release the clamp to separate the pipeline. Standard dimensions ensure stable sealing after repeated assembly and disassembly.
