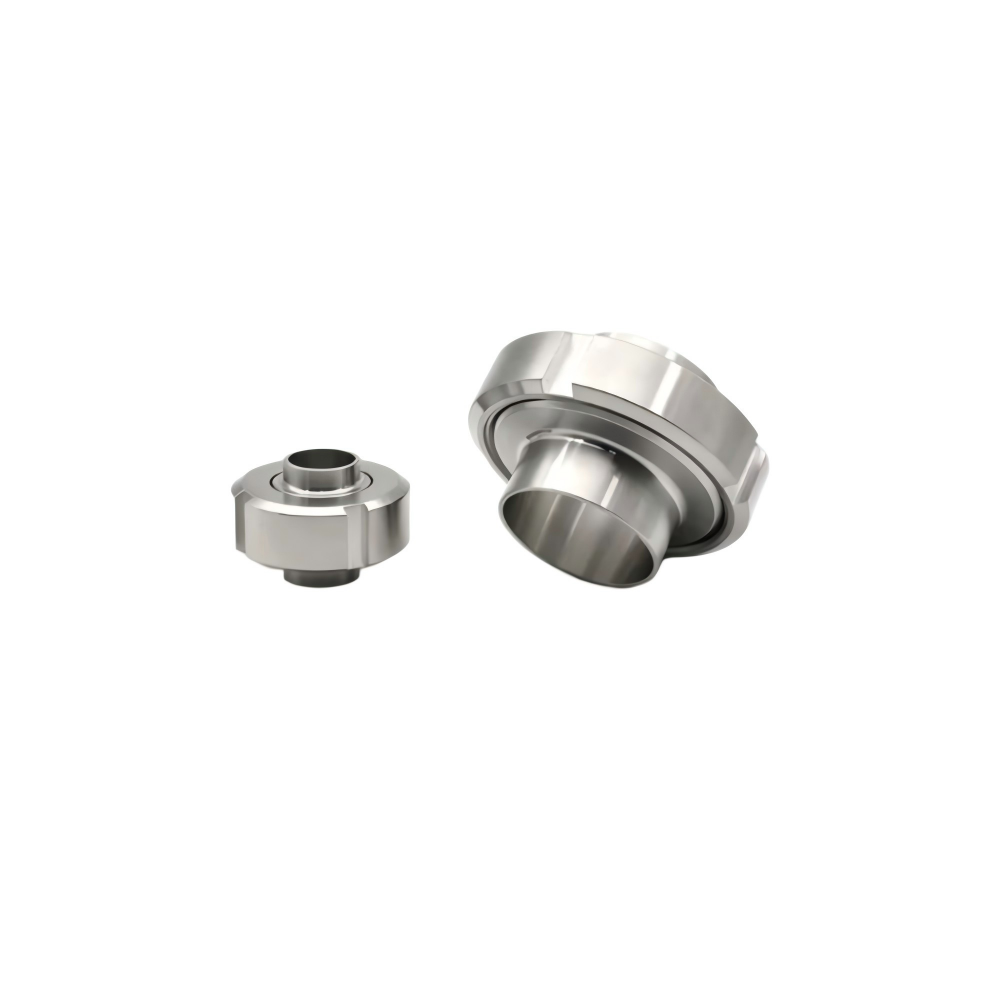

DIN Sanitary Union
KINGMAN DIN Sanitary Union is manufactured in accordance with DIN hygienic piping specifications, made of SS304/SS316L stainless steel to fit European DIN sanitary pipeline systems. The complete assembly consists of threaded body, flat ferrule and locking round nut, serving as a modular detachable connector for hygienic pipelines. The finely polished inner bore provides smooth fluid transition and supports CIP cleaning. It is widely used in pharmaceutical, dairy, beverage and bioengineering process systems complying with DIN requirements. Tight dimensional tolerances follow DIN standards, enabling direct connection with DIN sanitary pipes and matching fittings, and facilitating pipeline installation, segmented equipment disassembly and on-site maintenance for European projects.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Union |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
DIN Standard
| Size | A | G | D5 | C |
|---|---|---|---|---|
| DN15 | 18.0 | RD34 x 1/8 | 44.0 | 25.0 |
| DN20 | 19.0 | RD44 x 1/6 | 54.0 | 31.0 |
| DN25 | 21.0 | RD52 x 1/6 | 62.0 | 36.0 |
| DN32 | 21.0 | RD58 x 1/6 | 68.0 | 42.0 |
| DN40 | 21.0 | RD65 x 1/6 | 78.0 | 49.0 |
| DN50 | 22.0 | RD78 x 1/6 | 92.0 | 62.0 |
| DN65 | 24.0 | RD95 x 1/6 | 110.0 | 80.0 |
| DN80 | 28.0 | RD110 x 1/4 | 126.0 | 94.0 |
| DN100 | 30.0 | RD130 x 1/4 | 146.0 | 115.0 |
| DN125 | 32.0 | RD160 x 1/4 | 178.0 | 138.0 |
| DN150 | 34.0 | RD190 x 1/4 | 208.0 | 164.0 |

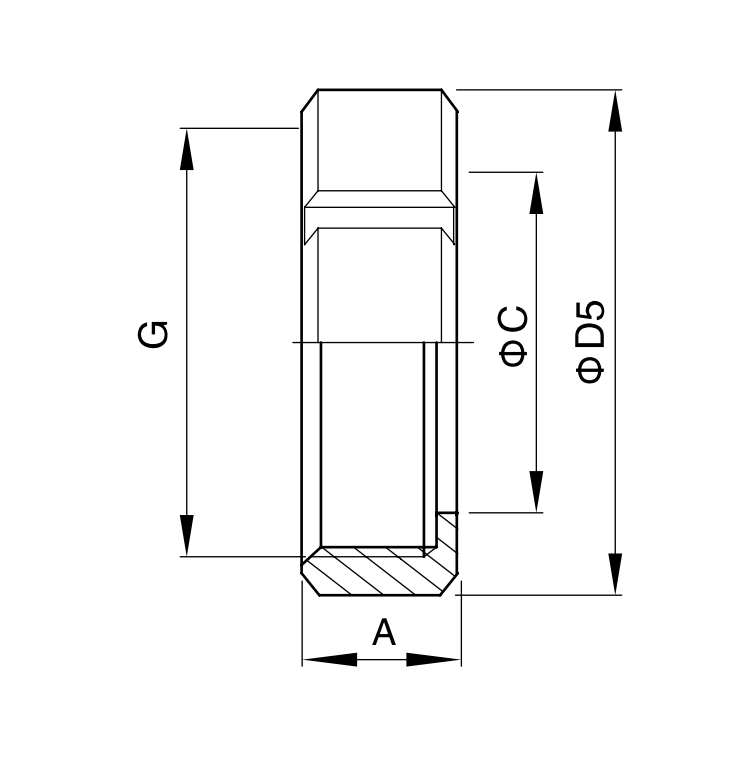

Round Nut
| Material Code | Size | A | D | G |
|---|---|---|---|---|
| FU01DIN0411015 | DN15 | 21.0 | 21.0 | RD34 x 1/8 |
| FU01DIN0411020 | DN20 | 24.0 | 25.0 | RD44 x 1/6 |
| FU01DIN0411025 | DN25 | 29.0 | 31.0 | RD52 x 1/6 |
| FU01DIN0411032 | DN32 | 32.0 | 37.0 | RD58 x 1/6 |
| FU01DIN0411040 | DN40 | 33.0 | 43.0 | RD65 x 1/6 |
| FU01DIN0411050 | DN50 | 35.0 | 55.0 | RD78 x 1/6 |
| FU01DIN0411065 | DN65 | 40.0 | 72.0 | RD95 x 1/6 |
| FU01DIN0411080 | DN80 | 45.0 | 87.0 | RD110 x 1/4 |
| FU01DIN0411100 | DN100 | 54.0 | 106.0 | RD130 x 1/4 |
| FU01DIN0411125 | DN125 | 46.0 | 132.0 | RD160 x 1/4 |
| FU01DIN0411150 | DN150 | 50.0 | 157.0 | RD190 x 1/4 |

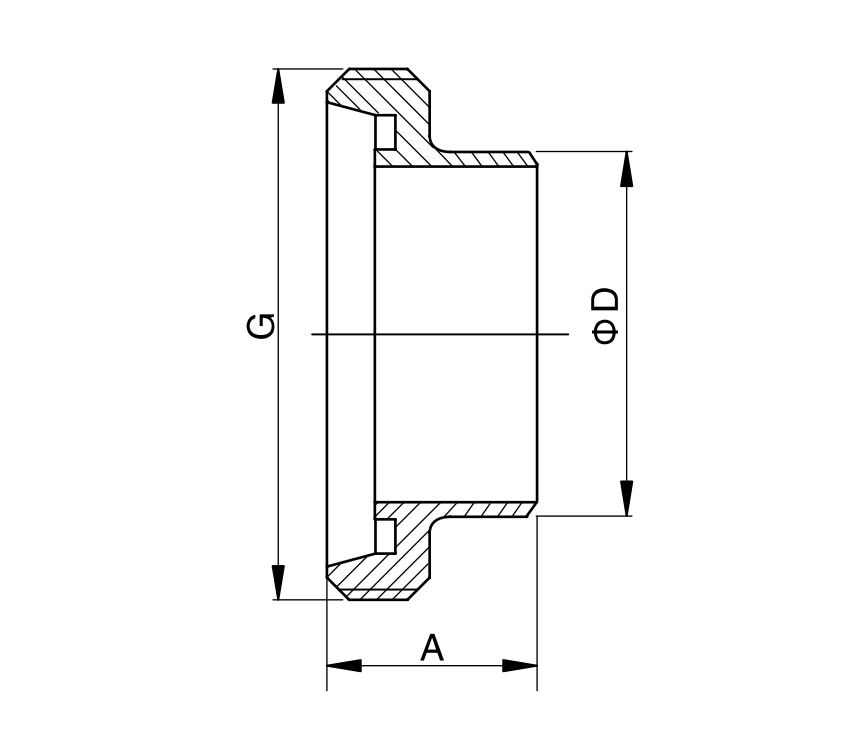

Long Male
| Material Code | Size | A | D | D1 |
|---|---|---|---|---|
| FU02DIN0411015 | DN15 | 17.0 | 21.0 | 28.0 |
| FU02DIN0411020 | DN20 | 18.0 | 25.0 | 36.0 |
| FU02DIN0411025 | DN25 | 22.0 | 31.0 | 43.0 |
| FU02DIN0411032 | DN32 | 25.0 | 37.0 | 49.0 |
| FU02DIN0411040 | DN40 | 26.0 | 43.0 | 55.0 |
| FU02DIN0411050 | DN50 | 28.0 | 55.0 | 68.0 |
| FU02DIN0411065 | DN65 | 32.0 | 72.0 | 85.0 |
| FU02DIN0411080 | DN80 | 37.0 | 87.0 | 100.0 |
| FU02DIN0411100 | DN100 | 44.0 | 106.0 | 120.0 |
| FU02DIN0411125 | DN125 | 34.0 | 132.0 | 149.0 |
| FU02DIN0411150 | DN150 | 37.0 | 157.0 | 176.0 |

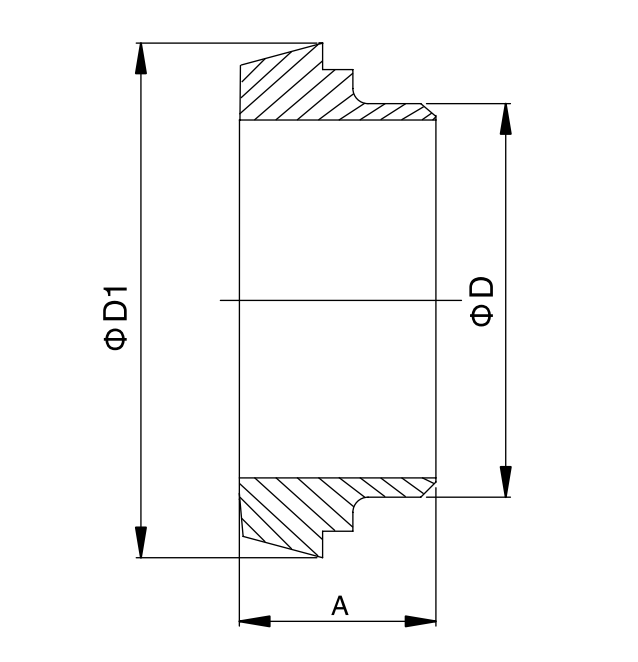

Long Liner:
| Material Code |
|---|
| FU03DIN0411015 |
| FU03DIN0411020 |
| FU03DIN0411025 |
| FU03DIN0411032 |
| FU03DIN0411040 |
| FU03DIN0411050 |
| FU03DIN0411065 |
| FU03DIN0411080 |
| FU03DIN0411100 |
| FU03DIN0411125 |
| FU03DIN0411150 |
Features
- Designed to DIN hygienic piping standards. Dimensions, threads and sealing face tolerances conform to European DIN system, offering good interchangeability with DIN fittings of the same size.
- Three-piece modular construction. Axial compression from round nut provides face sealing. Easy disassembly allows pipeline separation without pipe cutting.
- Polished inner bore delivers smooth flow transition, reduces flow resistance and medium adhesion, simplifies cleaning and meets hygienic process requirements.
- Stainless steel features stable mechanical property and good chemical resistance. It withstands temperature cycling and long-term flushing by process media and cleaning agents.
- Precisely machined threads enable smooth engagement. Threads resist wear after multiple tightening and disassembly cycles to maintain stable sealing compression.
- Compact structure saves installation space. Suitable for tight locations such as equipment nozzles and pipeline branches to facilitate engineering layout.
Working Principle

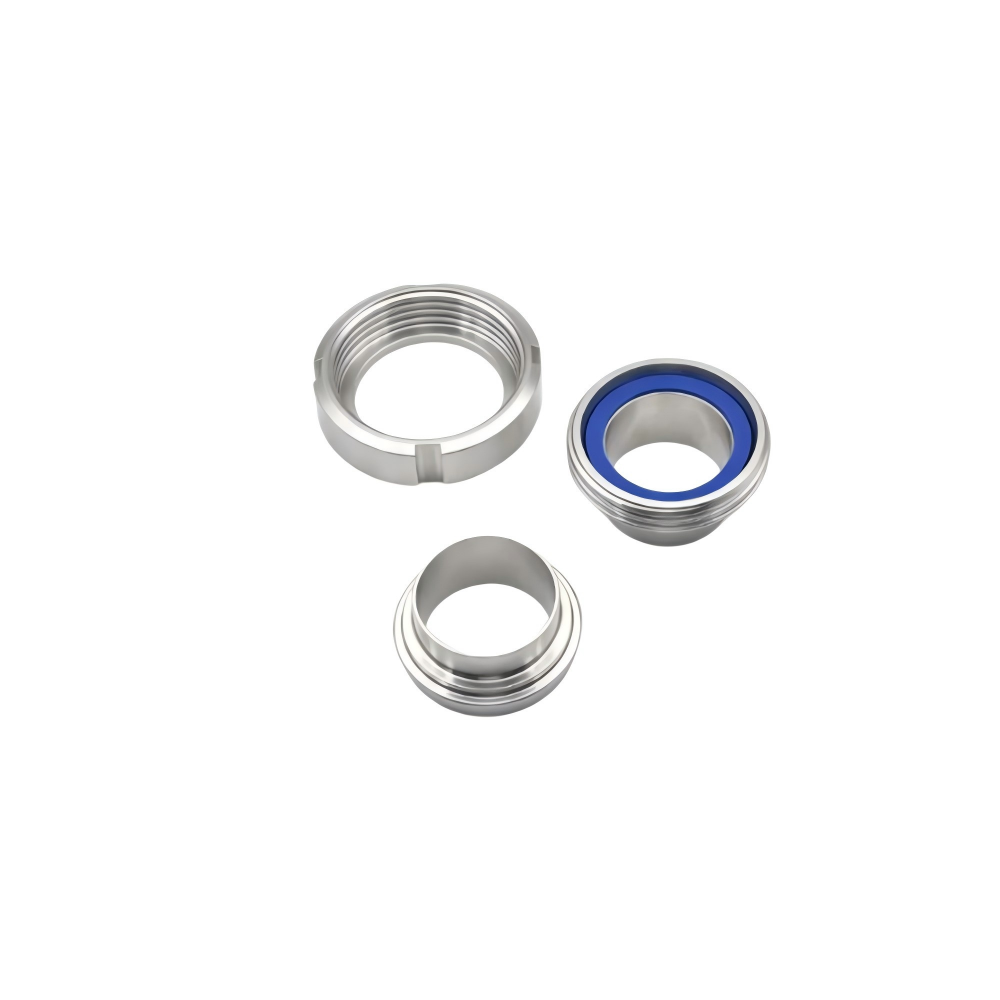

The DIN sanitary union achieves face sealing via axial compression generated by thread pair. During assembly, place the flat ferrule and sanitary gasket against the end face of threaded body. Rotate the round nut to advance along external thread and compress the sealing assembly evenly. The gasket tightly contacts both sealing faces to form reliable isolation, preventing medium leakage and ingress of external contaminants. Media flows through the continuous smooth bore with low flow resistance, allowing CIP cleaning fluid to fully rinse the inner wall. The whole assembly absorbs minor pipeline misalignment and vibration to reduce overload risk on sealing faces. For inspection, cleaning or pipeline modification, reverse rotation of the round nut releases the fitting for quick pipeline opening, cleaning or equipment removal, fulfilling the maintainability design requirements of DIN hygienic process systems.
Why Choose KINGMAN
DIN Order Support
DIN sanitary union dimensions can be reviewed against your existing piping information before ordering, making replacement and project sourcing more straightforward.
7-Day Standard Replenishment
Available standard sanitary components can be prepared in about 7 working days when distributor inventory or project schedules require faster replenishment.
100% Final Check
Finished sanitary unions are inspected before shipment, with material, dimensional, appearance and performance checks used to reduce receiving risk.
