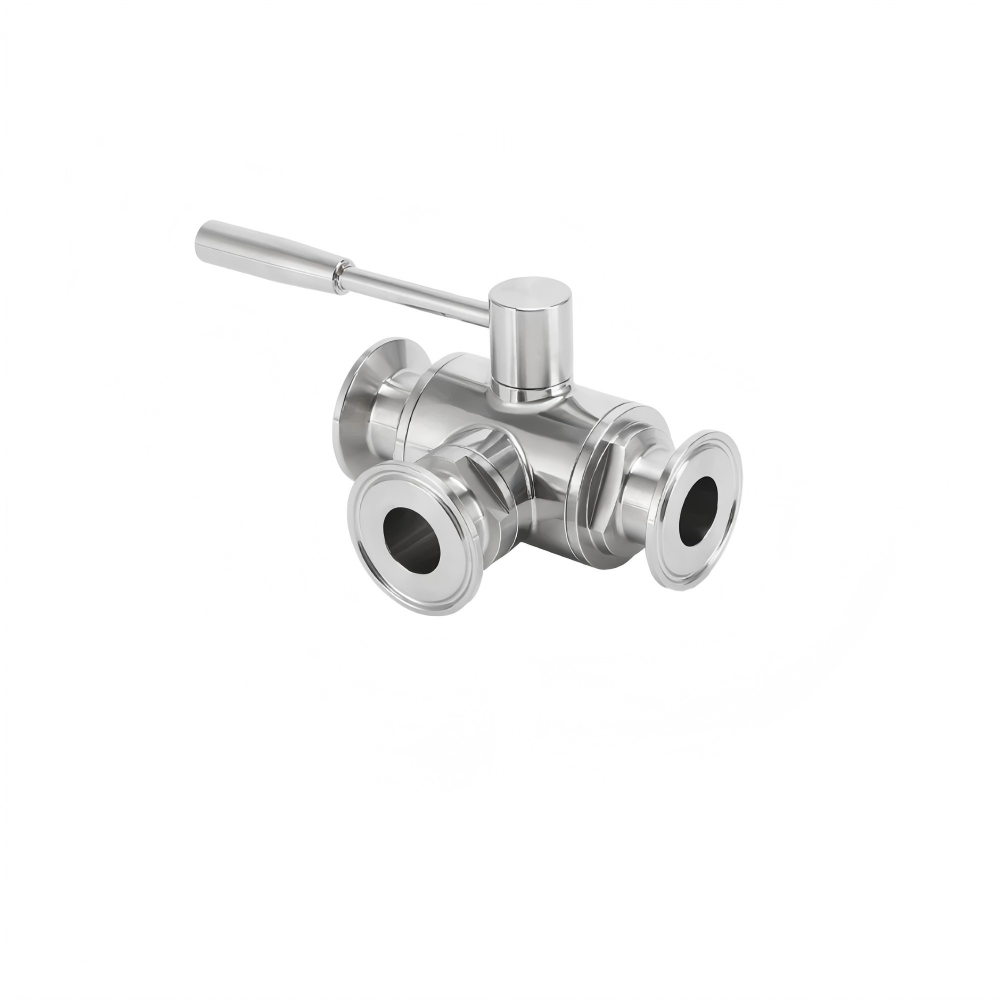

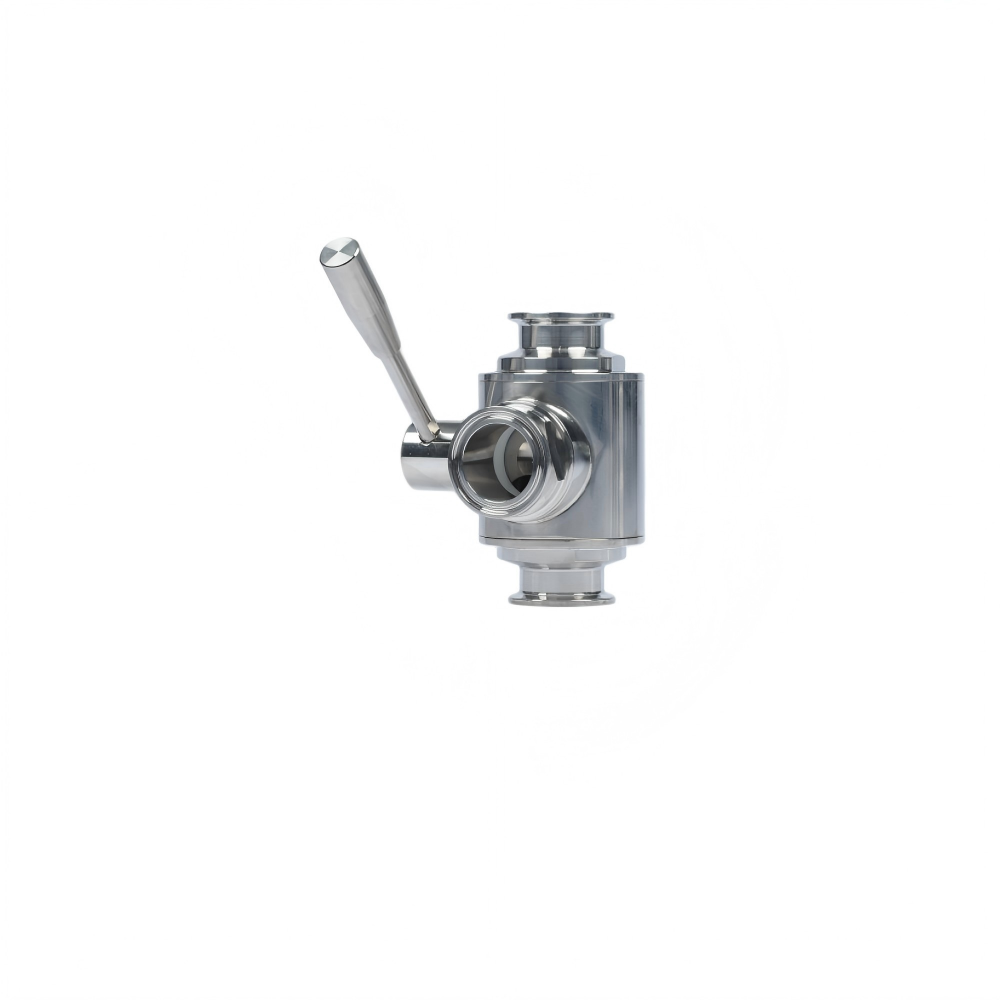

Sanitary 3 Way Ball Valve
KINGMAN sanitary tri-clamp 3-way ball valve with polished metal handle features one-piece forged SS304/SS316L 3-way valve body with compact layout and stable pressure bearing. Optional T/L type ball enables pipeline switching, media mixing and diversion. Smooth flow transition supports CIP/SIP sterilization. Fully polished stainless steel handle withstands high temperature and chemical detergents. Tri-clamp design simplifies inspection and maintenance, suitable for multi-path sanitary process systems in food and pharmaceutical sectors.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Ball Valve |
| Product Type | Two-Way,Three-Way,Full Package,Half Package |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Body & Disc Material | 304 / 316L stainless steel |
| Seal Material | PTFE,PPL,PEEK |
| Working Temperature | 200 °C |
| Max. Working Pressure | PN16 |
| Connection Standard | 3A / SMS / DIN / ISO |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

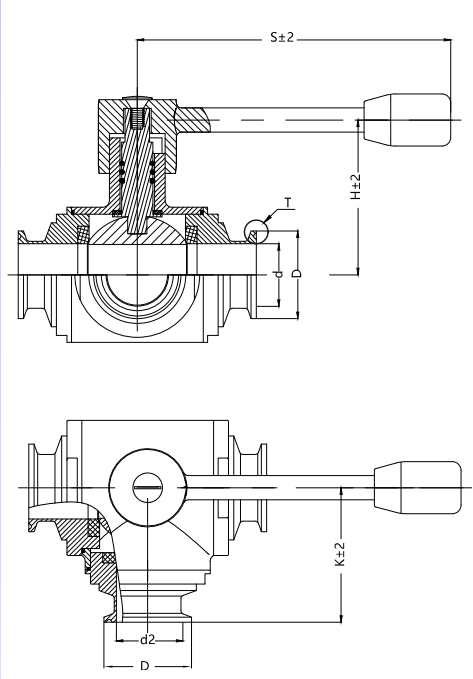

Dimensions
3A Standard
| Material Code | Size | d1 | d2 | D | L | K | H | S |
|---|---|---|---|---|---|---|---|---|
| BV023ACCCH104075 | 3/4" | 17 | 17 | 50.5 | 105 | 63 | 44 | 126 |
| BV023ACCCH104100 | 1" | 22 | 22 | 50.5 | 120 | 68 | 53 | 136 |
| BV023ACCCH104125 | 1 1/4" | 29 | 29 | 50.5 | 130 | 71 | 54 | 138 |
| BV023ACCCH104150 | 1 1/2" | 35 | 35 | 50.5 | 155 | 80 | 65 | 156 |
| BV023ACCCH104200 | 2" | 47.5 | 42 | 64 | 168 | 90 | 72.5 | 170 |
| BV023ACCCH104250 | 2 1/2" | 59 | 54 | 77.5 | 195 | 102 | 86 | 194 |
| BV023ACCCH104300 | 3" | 72 | 67 | 91 | 215 | 118 | 99 | 220 |
| BV023ACCCH104400 | 4" | 100 | 94 | 119 | 260 | 142 | 123.5 | 264 |
Features
- Fully polished stainless steel handle with zero plastic components, suitable for continuous high-temp sterilization and heavy chemical cleaning
- 3-way tri-clamp ports with optional T/L ball for bypass switching of multi-loop pipelines
- Compact one-piece forged 3-way body to save installation space inside equipment
- Separable independent seats for individual seal replacement, cutting downtime in high-temperature processes
- Smooth flow transition reduces medium sediment, suitable for long continuous production runs
- Mirror polished valve body for high-purity projects in pharmaceutical and fine chemical industries
Working Principle
Sanitary Tri-clamp 3-way Ball Valve with Polished Metal Handle uses the all-metal polished handle to rotate the stem and 3-way ball. T-port or L-port internal passages distribute fluid across multiple lines. L-port ball serves for tank bypass switching, while T-port handles media mixing and splitting. Separable independent seats maintain consistent sealing during prolonged high-temperature cleaning cycles. Mirror finished valve body plus tri-clamp connection allows full extraction from equipment piping for maintenance, reducing downtime for continuous production in pharmaceutical and fine chemical processes.
Why Choose KINGMAN
Private-Label Flexibility
Materials, connection details, handle configuration and packaging can be reviewed around OEM or brand requirements, allowing sanitary three-way ball valves to fit established product programs more naturally.
Verified Stainless Materials
Spectrographic analysis can verify stainless steel composition before products move through machining and assembly, giving purchasing teams an additional material-control checkpoint for hygienic applications.
Lifetime Technical Support
Beyond the one-year international warranty, KINGMAN provides ongoing remote technical guidance for specification, installation and troubleshooting questions throughout the sanitary valve service cycle.
