Sanitary Clamp Ball Valve

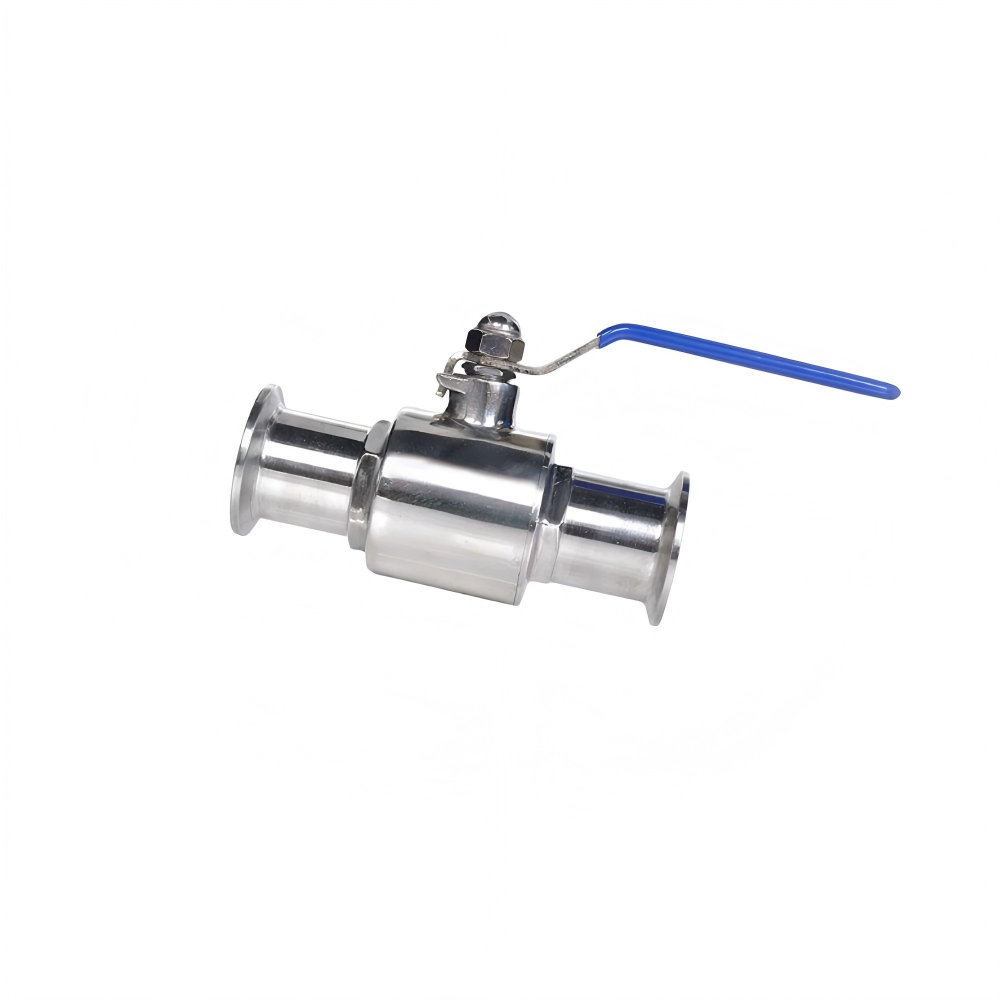

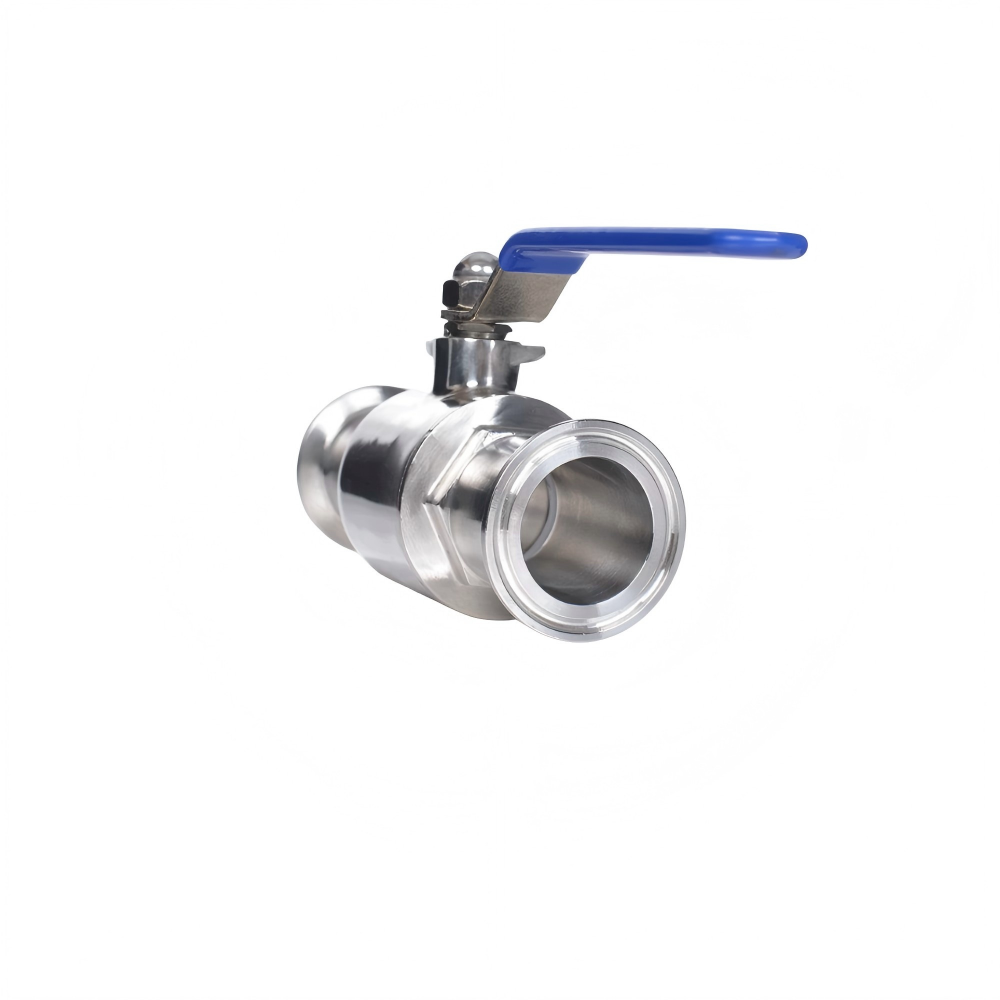

KINGMAN sanitary tri-clamp 2-way ball valve features forged SS304/SS316L valve body with smooth flow path free of sanitary dead zones. Equipped with standard tri-clamp ends for tool-free assembly without welding. Fitted with blue limited handle for stable operation. It supports CIP cleaning and SIP sterilization. With reliable pressure resistance and low flow resistance, it is widely used for on-off control in sanitary pipelines of pharmaceutical, cosmetic and liquid cooling industries.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Ball Valve |
| Product Type | Two-Way,Three-Way,Full Package,Half Package |
| Size Range | DN15–DN150 (approx. 1/2"–6") |
| Body & Disc Material | 304 / 316L stainless steel |
| Seal Material | PTFE,PPL,PEEK |
| Working Temperature | 200 °C |
| Max. Working Pressure | PN16 |
| Connection Standard | 3A / SMS / DIN / ISO |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

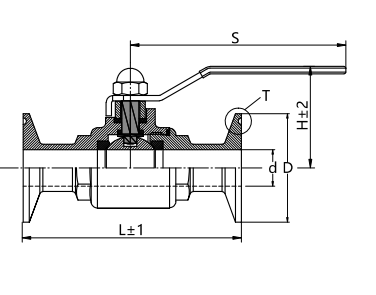

Dimensions
DIN Standard
| Material Code | Size | d | D | L | H | S |
|---|---|---|---|---|---|---|
| BV01DINCCH104050 | 1/2" | 10 | 25.2 | 75 | 41 | 99 |
| BV01DINCCH104075 | 3/4" | 17 | 50.5 | 100 | 47 | 124 |
| BV01DINCCH104100 | 1" | 22 | 50.5 | 120 | 62 | 137 |
| BV01DINCCH104125 | 1 1/4" | 28 | 50.5 | 130 | 66 | 137 |
| BV01DINCCH104150 | 1 1/2" | 35 | 50.5 | 140 | 76 | 150 |
| BV01DINCCH104175 | 1 3/4" | 42 | 64 | 150 | 84 | 150 |
| BV01DINCCH104200 | 2" | 47.5 | 64 | 164 | 91 | 177 |
| BV01DINCCH104225 | 2 1/4" | 53 | 77.5 | 164 | 93 | 192 |
| BV01DINCCH104250 | 2 1/2" | 60 | 77.5 | 190 | 97 | 192 |
| BV01DINCCH104300 | 3" | 72 | 91 | 215 | 106 | 260 |
| BV01DINCCH104350 | 3 1/2" | 80 | 106 | 225 | 125 | 260 |
| BV01DINCCH104400 | 4" | 100 | 119 | 260 | 164 | 316 |
| BV01DINCCH104500 | 5" | 125 | 145 | 320 | 210 | 350 |
Features
- Blue coated limit handle with positioning stop block for clear open/close indication and accidental rotation prevention
- Straight 2-way structure, direct fluid passage without diversion for minimal pressure drop
- Standard tri-clamp ends, weld-free and fast on-site disassembly for sampling
- Precisely calibrated ball concentricity to maintain reliable sealing after frequent cycling
- Lightweight valve body, ideal for modular liquid cooling and compact sanitary equipment
- Multiple ferrule sizes available, directly compatible with common sanitary pipe fittings
Working Principle
Sanitary Tri-clamp Ball Valve with Blue Handle uses the handle to rotate the stem and turn the ball through a quarter turn for media on-off control. Fluid flows freely when the bore of the ball aligns with the pipeline. A 90° rotation presses the solid surface of the ball against the seats to shut off flow. The blue limited handle locks open/closed positions and prevents accidental rotation. The tri-clamp connection enables full valve removal from piping for sampling and offline cleaning, ideal for sanitary lines requiring frequent inline sampling.
Why Choose KINGMAN
Specialty Alloys
Beyond common 304 and 316L stainless steel, AL6XN and Hastelloy options support products exposed to more demanding process media, cleaning chemicals or corrosion conditions.
Predictable Supply
Standard orders typically require 15–25 days, giving distributors and equipment manufacturers a defined production window when coordinating inventory replenishment, customer orders or equipment manufacturing schedules.
Quality Records
Material verification and inspection records provide additional supplier evidence for purchasing, engineering or quality teams that require documented information when reviewing products for sanitary or high-purity projects.
