Sanitary Tank Bottom Ball Valve

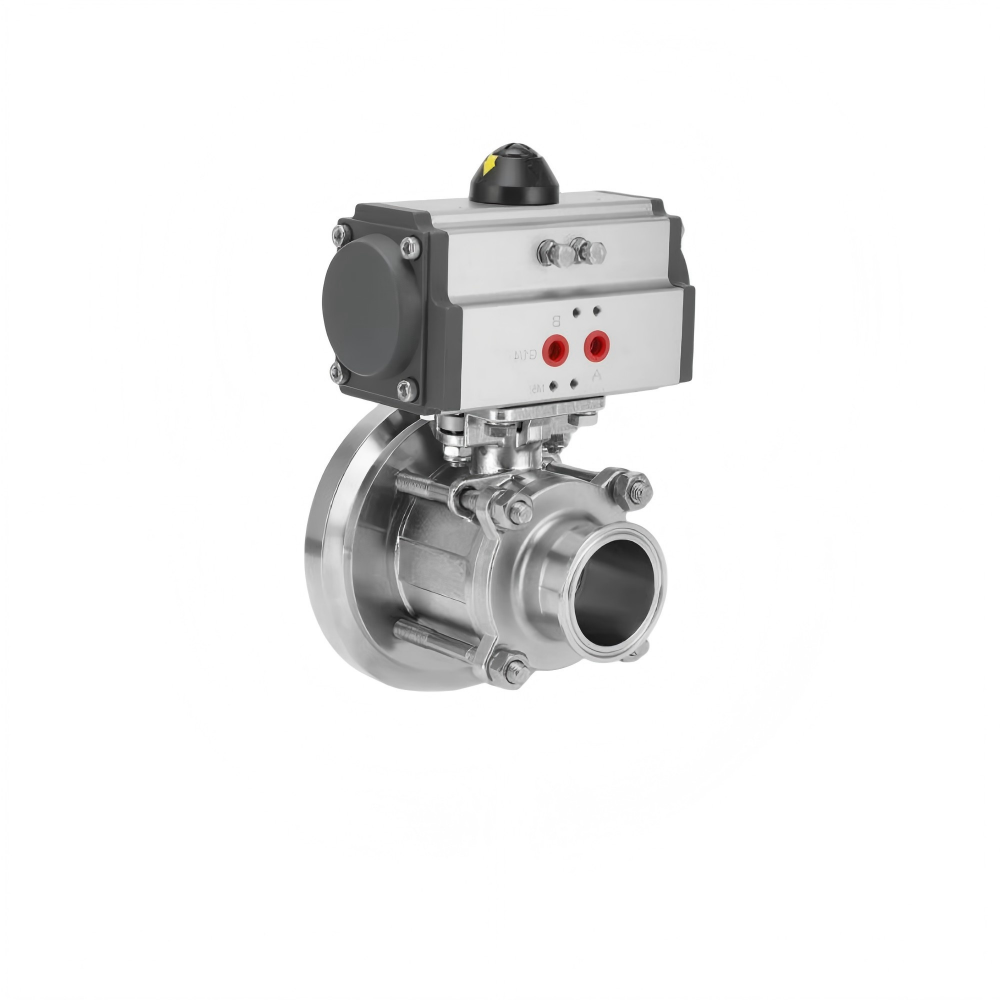

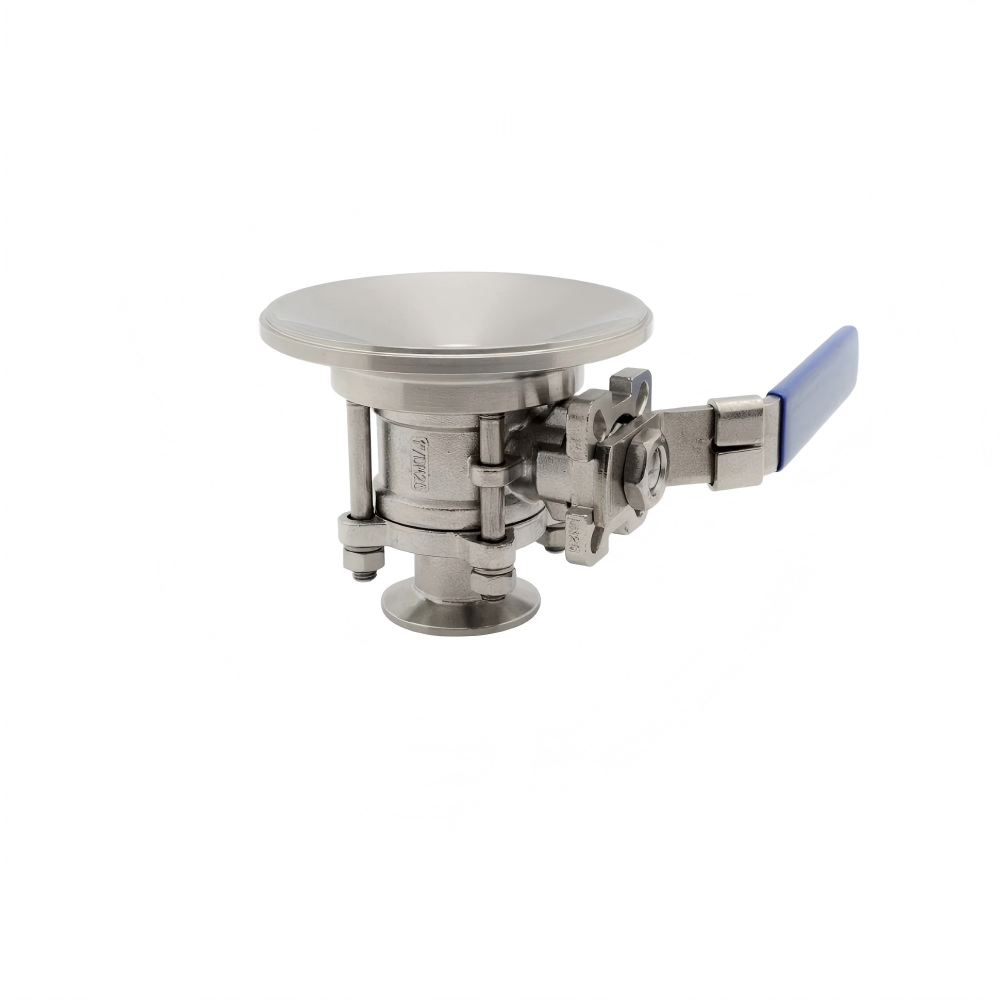

KINGMAN Sanitary Tank Bottom Ball Valve is made of SS304/SS316L stainless steel, specially designed for discharge service at tank bottom. The large tank flange can be welded directly to the tank base to eliminate residual dead volume inside the tank. The opposite end adopts sanitary tri-clamp connection for easy disassembly and cleaning. Split 3-piece body facilitates maintenance of internal sealing parts. Full bore passage ensures smooth media discharge and supports CIP online cleaning and SIP steam sterilization. It is widely used for bottom discharge control of food, pharmaceutical, bio-fermentation and liquid cooling storage tanks.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Tank Bottom Ball Valve |
| Connection Type | Tri-Clamp End + Tank End ASME BPE/ISO 1127/DIN 11850 + Tank End |
| Material | CF8/CF8M /Hastelloy C22 C276 (Investment Casting) |
| Sizes | DN15–DN100 (approx. 1/2"–4") |
| Surface Finish | Internal surface finish 20Ra (Ra 0.5μm) |
| Valve Seat | CAVITY FILLED PTFE SEATS |
| Working Pressure | 1000PSI (PN63) for 1/2" ~ 2" (DN15 ~ DN50) 800PSI (PN40) for 2-1/2" ~ 4" (DN65 ~ DN100) |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

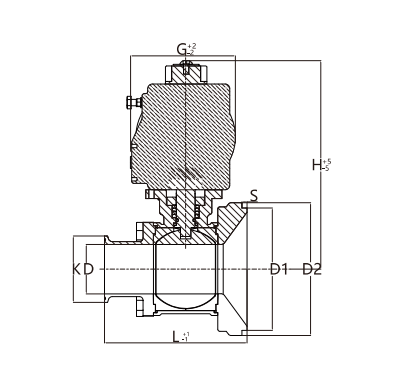

Dimensions
SMS Standard
| Material Code | Size | L | K | D | D1 | D2 | H | G | L1 | S | F | P | AT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BV01SMSCCH104075 | 3/4" | 90 | 25.2 | 16 | 72 | 78 | 121 | 70 | 153 | 3 | 9×9 | F05 | 52 |
| BV01SMSCCH104100 | 1" | 102 | 50.5 | 22.2 | 82 | 88 | 130 | 83 | 176 | 3 | 9×9 | F05 | 63 |
| BV01SMSCCH104150(1) | 1 1/2" | 111 | 50.5 | 28.6 | 112 | 118 | 143 | 83 | 176 | 3 | 9×9 | F05 | 63 |
| BV01SMSCCH104150(2) | 1 1/2" | 125 | 50.5 | 35 | 112 | 118 | 193 | 98 | 189 | 3 | 11×11 | F05 | 75 |
| BV01SMSCCH104175 | 1 3/4" | 125 | 64 | 42 | 112 | 118 | 193 | 98 | 189 | 3 | 11×11 | F05 | 75 |
| BV01SMSCCH104200 | 2" | 138 | 64 | 47.6 | 118 | 128 | 221 | 102 | 84 | 5 | 14×14 | F05-07 | 83 |
| BV01SMSCCH104275 | 2 3/4" | 138 | 77.5 | 52 | 118 | 128 | 221 | 102 | 212 | 5 | 14×14 | F05-07 | 83 |
| BV01SMSCCH104250 | 2 1/2" | 170 | 77.5 | 60 | 155 | 165 | 237 | 110 | 212 | 5 | 14×14 | F05-07 | 92 |
| BV01SMSCCH104300 | 3" | 195 | 91 | 72.6 | 195 | 205 | 275 | 125 | 249 | 5 | 17×17 | F07-10 | 105 |
| BV01SMSCCH104350 | 3 1/2" | 195 | 106 | 81 | 195 | 205 | 275 | 125 | 277 | 5 | 17×17 | F07-10 | 105 |
| BV01SMSCCH104400 | 4" | 210 | 119 | 97.6 | 220 | 230 | 316 | 145 | 277 | 5 | 17×17 | F07-10 | 125 |
| BV01SMSCCH104500 | 5" | 260 | 145 | 125 | 285 | 295 | 384 | 155 | 308 | 5 | 22×22 | F10-12 | 140 |
| BV01SMSCCH104600 | 6" | 308 | 183 | 150 | 312 | 328 | 448 | 180 | 407 | 8 | 22×22 | F10-12 | 160 |
Features
- Special tank-bottom flange design for direct welding to storage tanks, reducing dead volume and media residue at the vessel base
- Split 3-piece body can be easily disassembled by loosening bolts; seals can be replaced individually to lower maintenance costs
- Sanitary tri-clamp outlet end, weld-free, enabling quick disassembly, sampling and offline cleaning
- Full bore flow path with high flow capacity, ensuring smooth media discharge and low accumulation risk
- Optional SS304/SS316L stainless steel, acid and alkali resistant, meeting high-cleanliness CIP/SIP process requirements
- Compact structure, suitable for intermittent tank discharge, periodic sterilization and sanitary process changeover
Working Principle
Sanitary Tank Bottom Ball Valve uses the handle to rotate the stem and turn the internal ball by 90° to control tank-bottom discharge on-off. When the ball bore aligns with the flow passage, media can be discharged smoothly from the tank; after a 90° rotation, the ball presses tightly against the seats to shut off discharge. The tank-bottom flange is welded integrally with the vessel to reduce dead zones found in conventional outlets. The split 3-piece body allows internal inspection and maintenance, while the tri-clamp end simplifies quick removal of downstream piping, making it suitable for intermittent discharge and periodic sterilization applications.
Why Choose KINGMAN
Tank Interface Review
Tank outlet geometry, connection dimensions and installation clearance can be reviewed from your drawings so a sanitary tank bottom ball valve fits the vessel with less on-site modification.
Low-Risk Trial Orders
Samples and small quantities are supported before long-term purchasing, giving tank builders and process users a practical way to validate discharge performance and mounting compatibility.
After-Sales Coverage
A one-year international warranty plus lifetime technical support provides remote troubleshooting, installation guidance and qualifying replacement-part support after tank bottom valves are delivered overseas.
