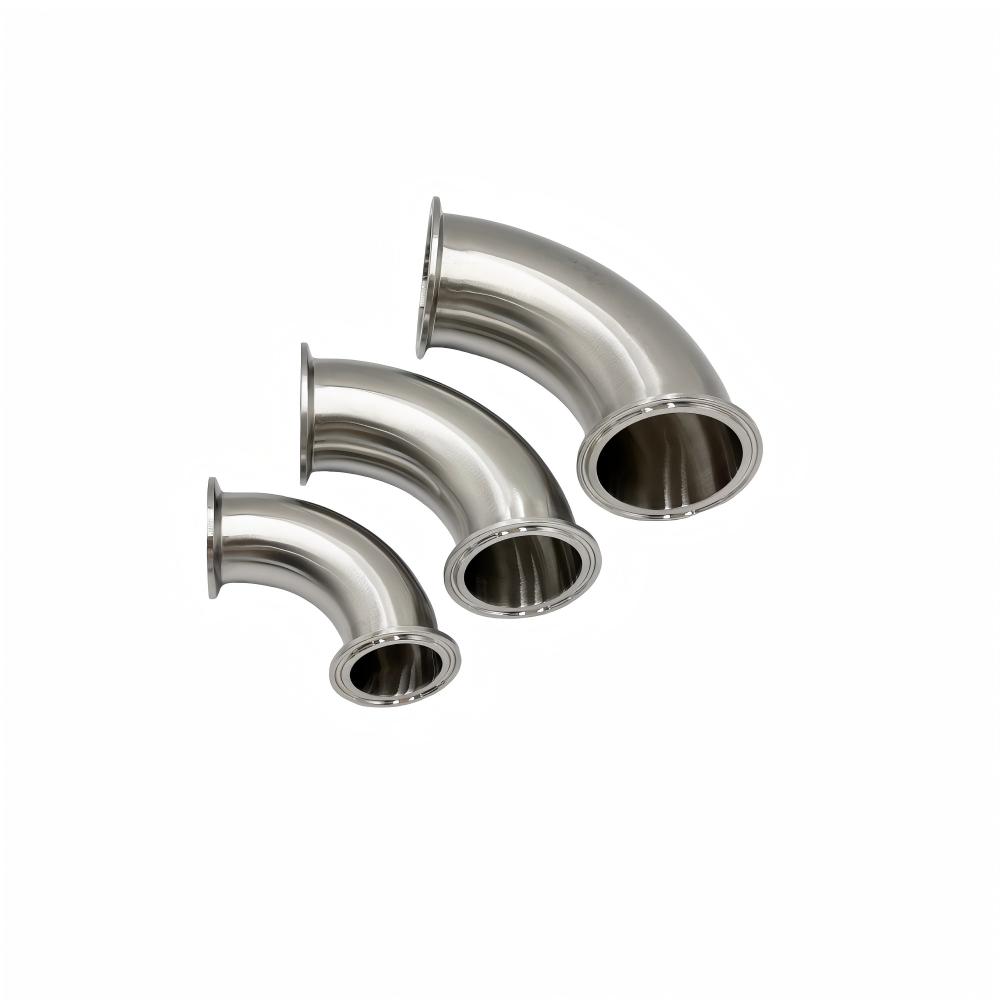

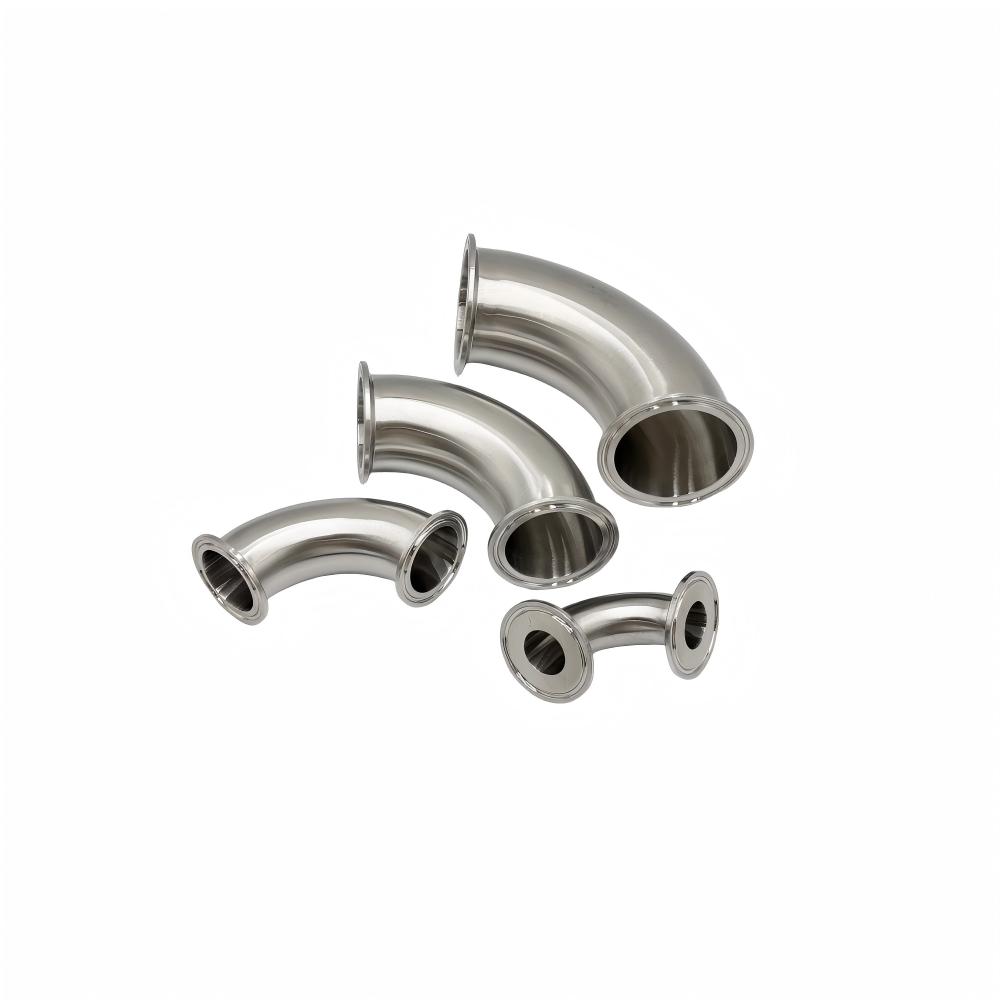

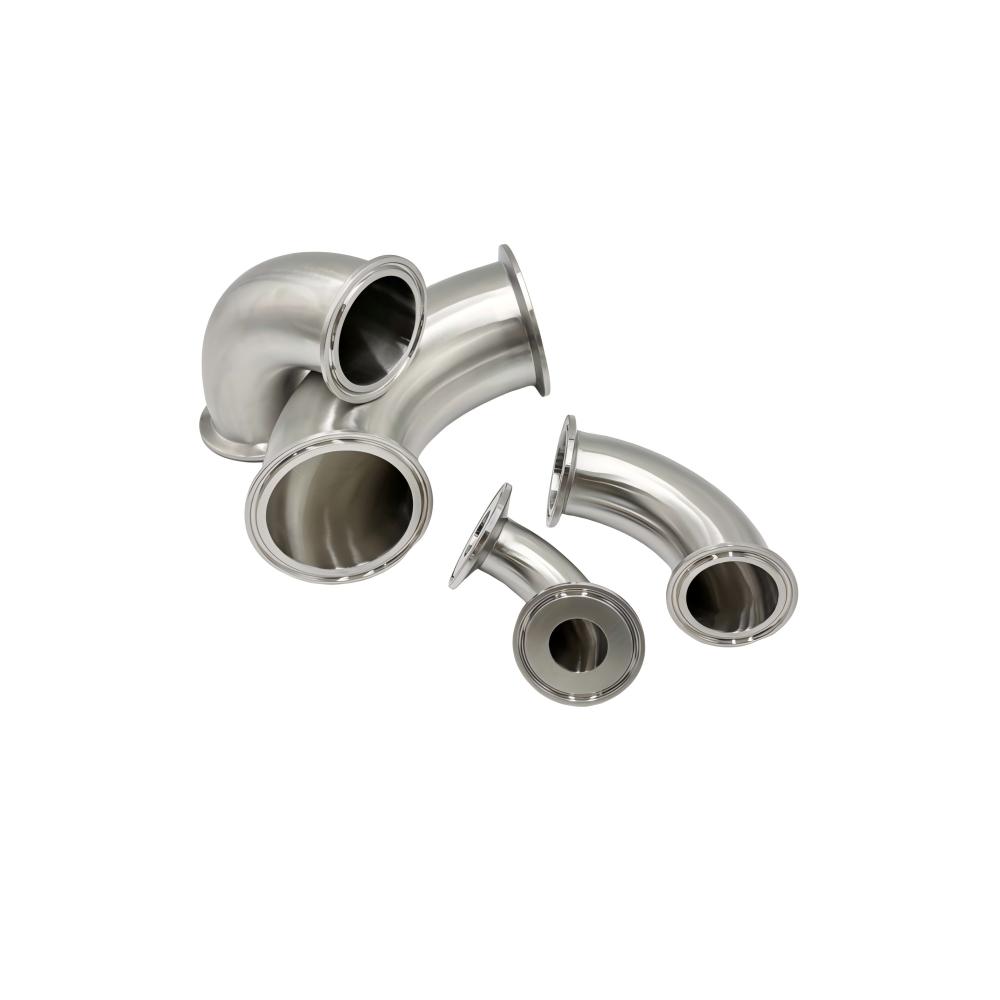

Tri-clamp 90° Short Elbow (2CMP）
KINGMAN sanitary 90° tri-clamp elbow is precision roll-formed from SS304/SS316L stainless steel and manufactured in accordance with 3A, SMS DIN and BPE hygienic standards. Equipped with standard weld-free tri-clamp ends for fast connection and easy disassembly, it is specially designed for hygienic pipelines requiring flexible layout and regular maintenance. The mirror-polished smooth dead-leg-free flow path ensures reliable sealing and high repeatability after repeated disassembly, widely used in detachable process pipeline systems for food, pharmaceutical and biotech industries
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Elbow |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short , 90°/45°/180° , Elbow R=1.5D |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

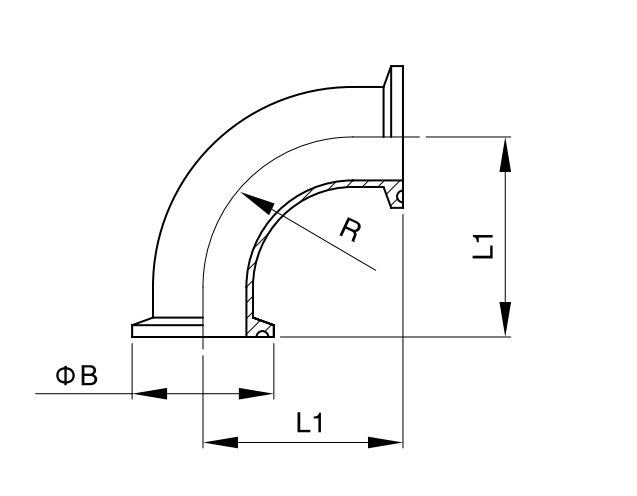

DIN Standard
| Material Code | Size | L1 | R | B |
|---|---|---|---|---|
| FE90DINCCS0411015 | DN15 | 53.0 | 34.0 | 35.0 |
| FE90DINCCS0411020 | DN20 | 58.0 | 34.0 | 40.0 |
| FE90DINCCS0411025 | DN25 | 71.0 | 50.5 | 50.0 |
| FE90DINCCS0411032 | DN32 | 76.5 | 50.5 | 55.0 |
| FE90DINCCS0411040 | DN40 | 81.5 | 50.5 | 60.0 |
| FE90DINCCS0411050 | DN50 | 91.5 | 64.0 | 70.0 |
| FE90DINCCS0411065 | DN65 | 108.0 | 91.0 | 80.0 |
| FE90DINCCS0411080 | DN80 | 118.0 | 106.0 | 90.0 |
| FE90DINCCS0411100 | DN100 | 128.0 | 119.0 | 100.0 |

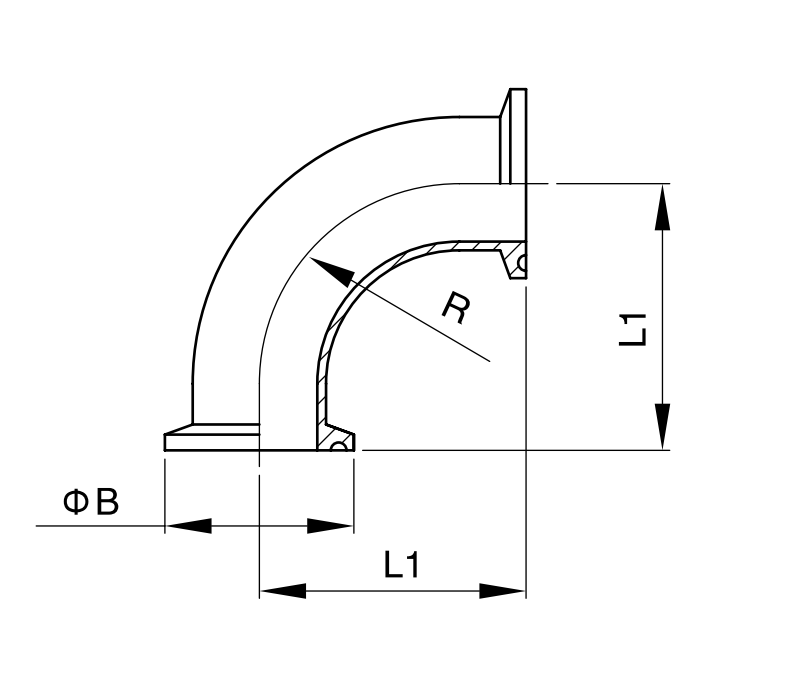

3A Standard
| Material Code | Size | L1 | B | R |
|---|---|---|---|---|
| FE903ACCS0411100 | 1" | 50.8 | 50.5 | 38.1 |
| FE903ACCS0411150 | 1 1/2" | 69.9 | 50.5 | 57.2 |
| FE903ACCS0411200 | 2" | 88.9 | 64.0 | 76.2 |
| FE903ACCS0411250 | 2 1/2" | 108.0 | 77.5 | 95.3 |
| FE903ACCS0411300 | 3" | 127.0 | 91.0 | 114.3 |
| FE903ACCS0411400 | 4" | 168.2 | 119.0 | 152.4 |
Features
- 1. Fully compliant with 3A, SMS and DIN international hygienic standards with universal standardized clamp sizes, perfectly compatible with mainstream sanitary clamps, gaskets, fittings and valves.
- 2. Precision forming craft ensures uniform and sturdy pipe wall with strong structural stability, maintaining stable pressure resistance and sealing performance without deformation or loosening after repeated disassembly and connection.
- 3. Weld-free quick-install structure requires no on-site hot work, enabling fast installation and convenient pipeline modification with high construction safety and no welding contamination risk in clean workshops.
- 4. High-precision mirror-polished flow path with smooth inner wall ensures fluent medium transportation and low dirt accumulation, maintaining long-term high pipeline cleanliness.
- 5. Anti-corrosion SS304/SS316L stainless steel resists acid, alkali and high temperature, adapting to various hygienic medium transportation and diverse production line conditions.
- 6. Detachable independent structure facilitates segmented pipeline maintenance, layout adjustment and equipment displacement, greatly improving the flexibility and maintainability of hygienic pipelines.
Working Principle
Sanitary 90° Tri-clamp Elbow adopts weld-free tri-clamp installation. It can be quickly connected to pipelines with standard sanitary gaskets and clamps without hot work, ideal for pipelines requiring frequent disassembly, maintenance and layout adjustment. When clamped tightly, the gasket forms uniform and leak-proof sealing. The smooth inner arc enables stable 90° medium transition without turbulence or dead-leg retention. The detachable structure allows fast removal for maintenance and inspection, greatly improving pipeline flexibility and ensuring long-term stable operation of hygienic systems.
Why Choose KINGMAN
Clamp-Line Compatibility
Tri-Clamp size, ferrule standard and pipe dimensions can be matched to your existing line, reducing connection mismatch when short 90° elbows are used for maintenance or equipment upgrades.
Seven-Day Stock Support
Standard stocked sanitary components can be prepared within seven working days, giving distributors and plant teams a faster replenishment option for common clamp-connected fittings.
Multi-Standard Supply
KINGMAN supports sanitary components around 3A, DIN, SMS, ISO and BPE requirements, making it easier to source fittings for different regional equipment and process specifications.
