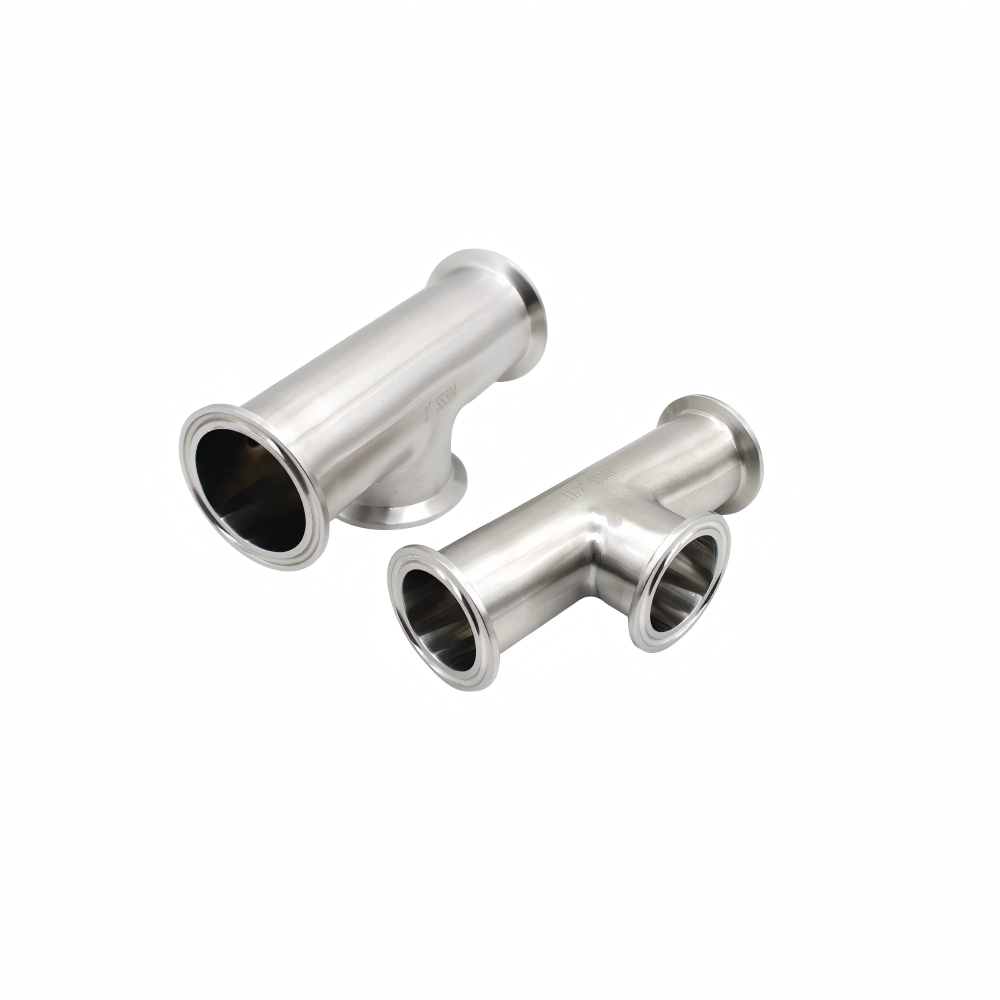

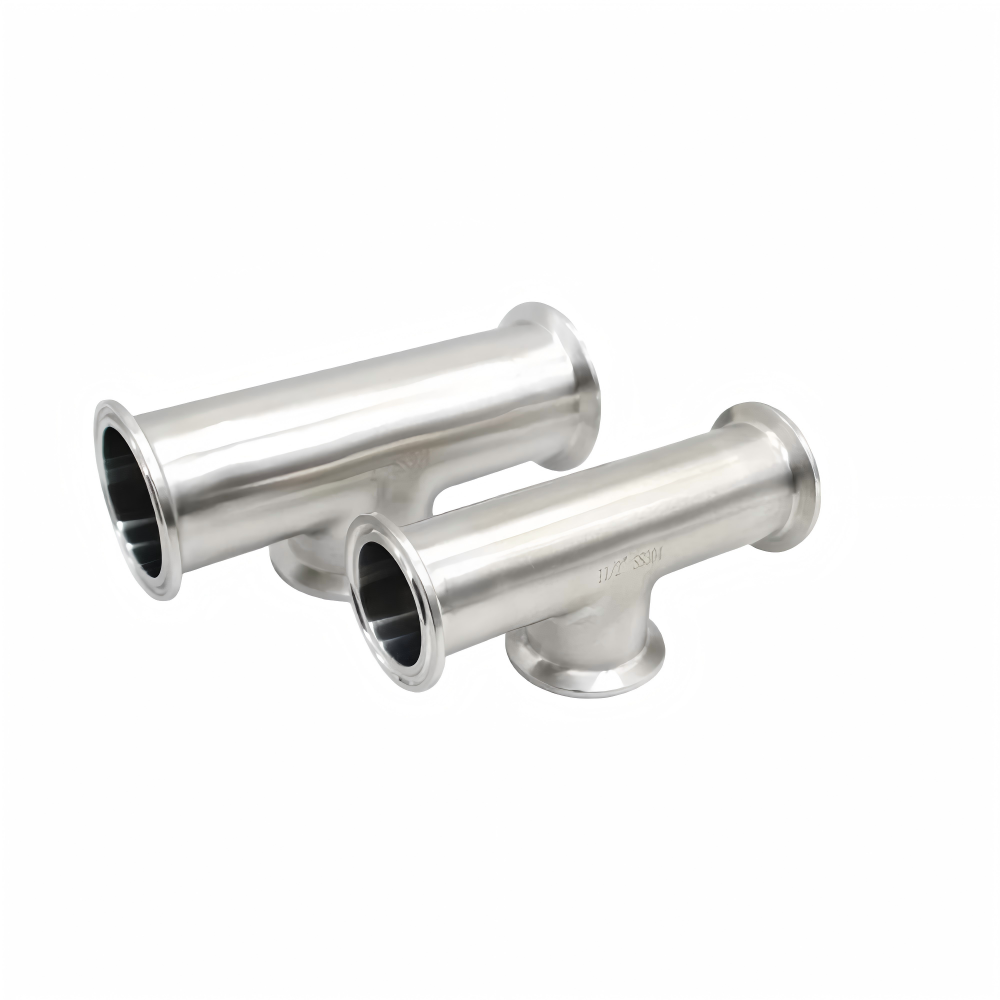

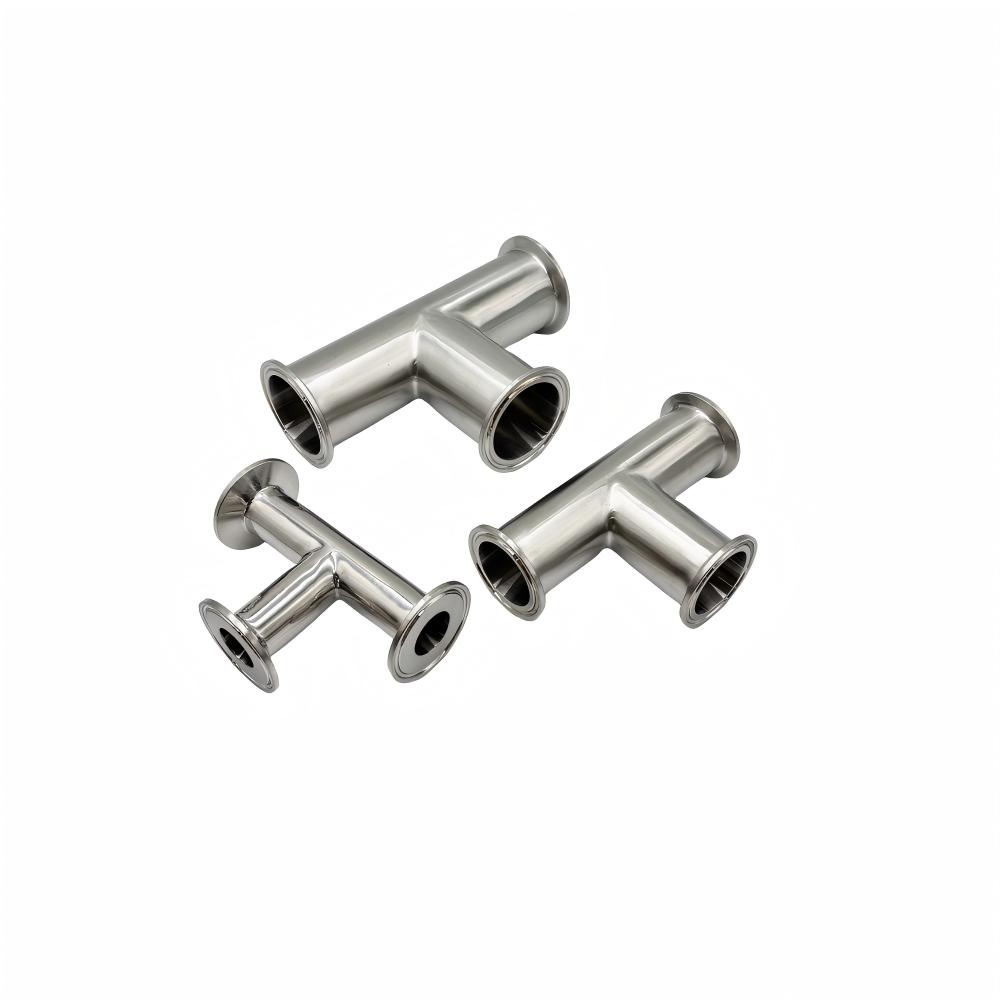

Tri-clamp Equal Long Tee (7MP)
KINGMAN sanitary tri-clamp Long tee is precisely manufactured from SS304/SS316L stainless steel in compliance with 3A, SMS, DIN and BPE hygienic standards. Equipped with standard three-port sanitary tri-clamp ends for weld-free quick connection and easy disassembly, it is specially designed for pipelines requiring regular disassembly cleaning, segmented maintenance and flexible layout adjustment. The mirror-polished smooth dead-leg-free flow path ensures high sealing repeatability without deformation after repeated assembly. Widely used in detachable process branch pipeline systems for biopharmaceutical, food, beverage and biotech industries to meet requirements of BPE high-purity fluid pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Tee / Cross |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short ,Equal Tee / Pull Tee / reducer Tee / Cross / U Tee… |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
DIN Standard
| Material Code | Size | L1 | B |
|---|---|---|---|
| FT01DINCCC0411015 | DN15 | 53.0 | 34.0 |
| FT01DINCCC0411020 | DN20 | 58.0 | 34.0 |
| FT01DINCCC0411025 | DN25 | 71.5 | 50.5 |
| FT01DINCCC0411032 | DN32 | 76.5 | 50.5 |
| FT01DINCCC0411040 | DN40 | 81.5 | 50.5 |
| FT01DINCCC0411050 | DN50 | 91.5 | 64.0 |
| FT01DINCCC0411065 | DN65 | 108.0 | 91.0 |
| FT01DINCCC0411080 | DN80 | 118.0 | 106.0 |
| FT01DINCCC0411100 | DN100 | 128.0 | 119.0 |
3A Standard
| Material Code | Size | L1 | B |
|---|---|---|---|
| FT013ACCC0411100 | 1" | 60.3 | 50.5 |
| FT013ACCC0411150 | 1 1/2" | 69.9 | 50.5 |
| FT013ACCC0411200 | 2" | 88.9 | 64.0 |
| FT013ACCC0411250 | 2 1/2" | 88.9 | 77.5 |
| FT013ACCC0411300 | 3" | 95.3 | 91.0 |
| FT013ACCC0411400 | 4" | 114.2 | 119.0 |
ISO Standard
| Material Code | Size | L1 | B |
|---|---|---|---|
| FT01ISOCCC0411100 | 1" | 55.0 | 50.5 |
| FT01ISOCCC0411125 | 1 1/4" | 59.5 | 50.5 |
| FT01ISOCCC0411150 | 1 1/2" | 70.0 | 50.5 |
| FT01ISOCCC0411200 | 2" | 82.0 | 64.0 |
| FT01ISOCCC0411250 | 2 1/2" | 105.0 | 77.5 |
| FT01ISOCCC0411300 | 3" | 110.0 | 91.0 |
| FT01ISOCCC0411350 | 3 1/2" | 125.0 | 106.0 |
| FT01ISOCCC0411400 | 4" | 148.5 | 119.0 |
Features
- 1. Fully compliant with BPE, 3A, SMS and DIN BPE international hygienic specifications with universal standard tri-clamp sizes, perfectly interchangeable with mainstream sanitary gaskets, clamps, fittings and valves for high-purity process pipelines.
- 2. Precision forming craft ensures compact and stable structure with solid uniform pipe wall, maintaining stable pressure resistance and sealing performance without deformation or loosening after repeated disassembly and assembly.
- 3. Full-port weld-free quick-install design requires no on-site hot work, enabling safe and efficient installation and modification without welding pollution, suitable for sterile BPE clean workshop environments.
- 4. Smooth arc transition at the three-way junction reduces fluid resistance, realizing uniform and stable diversion and confluence, minimizing flow impact and material deposition for smooth delivery of high-purity media.
- 5. High-precision mirror-polished inner wall creates a clean dead-leg-free flow path for thorough and convenient cleaning after disassembly, maintaining long-term sterile and hygienic operation up to BPE standards.
- 6. Three-way detachable structure supports segmented pipeline maintenance, branch modification, equipment displacement and CIP cleaning, greatly improving the flexibility and maintainability of BPE-grade hygienic piping systems.
Working Principle
Sanitary Tri-clamp Tee adopts full three-port weld-free tri-clamp installation. It can be rapidly assembled with standard sanitary gaskets and clamps without hot work, ensuring clean and efficient construction without polluting BPE clean workshops. Tight clamping enables uniform gasket compression and full-range leak-proof sealing to prevent medium leakage and external contamination. During operation, the smooth inner three-way flow path realizes stable fluid diversion and confluence with gentle flow transition and uniform flow distribution, free of dead retention and turbulence. For maintenance, thorough cleaning or layout adjustment, the tee can be quickly disassembled by loosening the clamps, supporting dead-leg-free CIP cleaning and flexible pipeline modification, fully meeting the detachable, maintainable and high-hygiene operation requirements of BPE-grade sanitary process pipelines.
