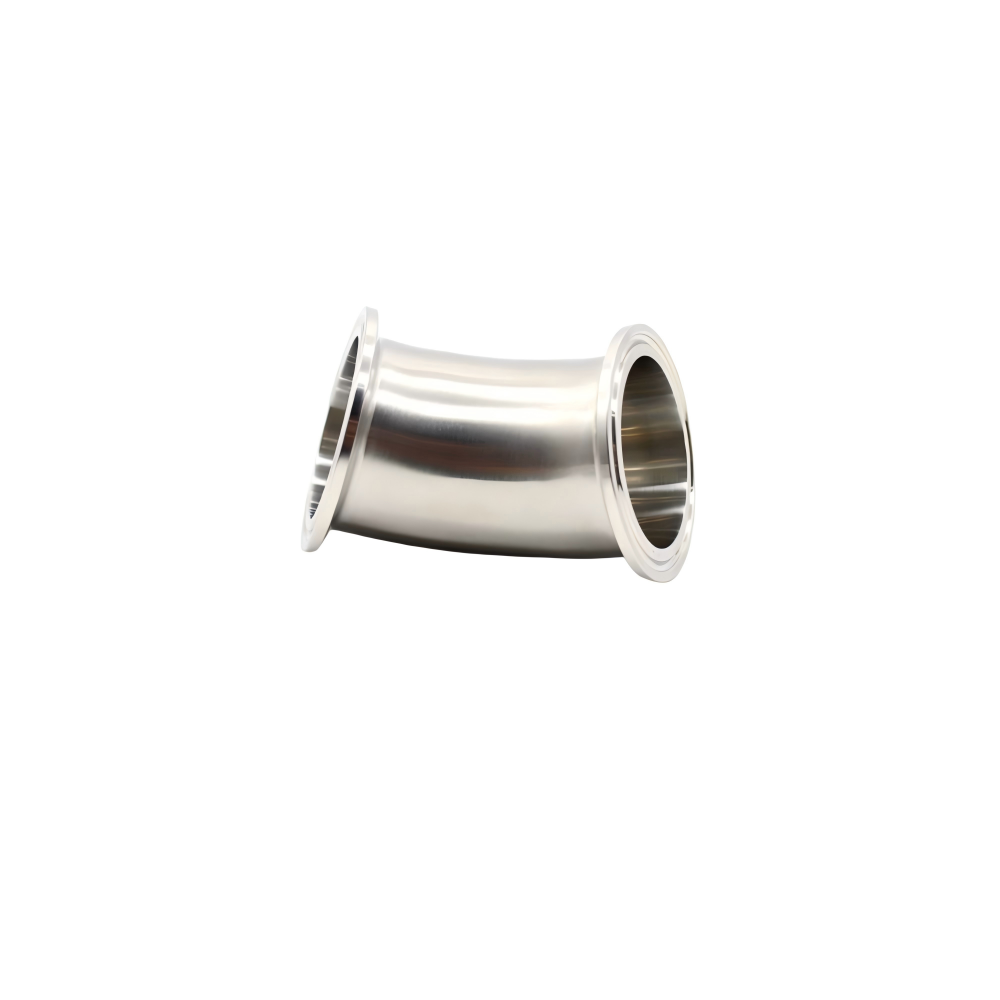

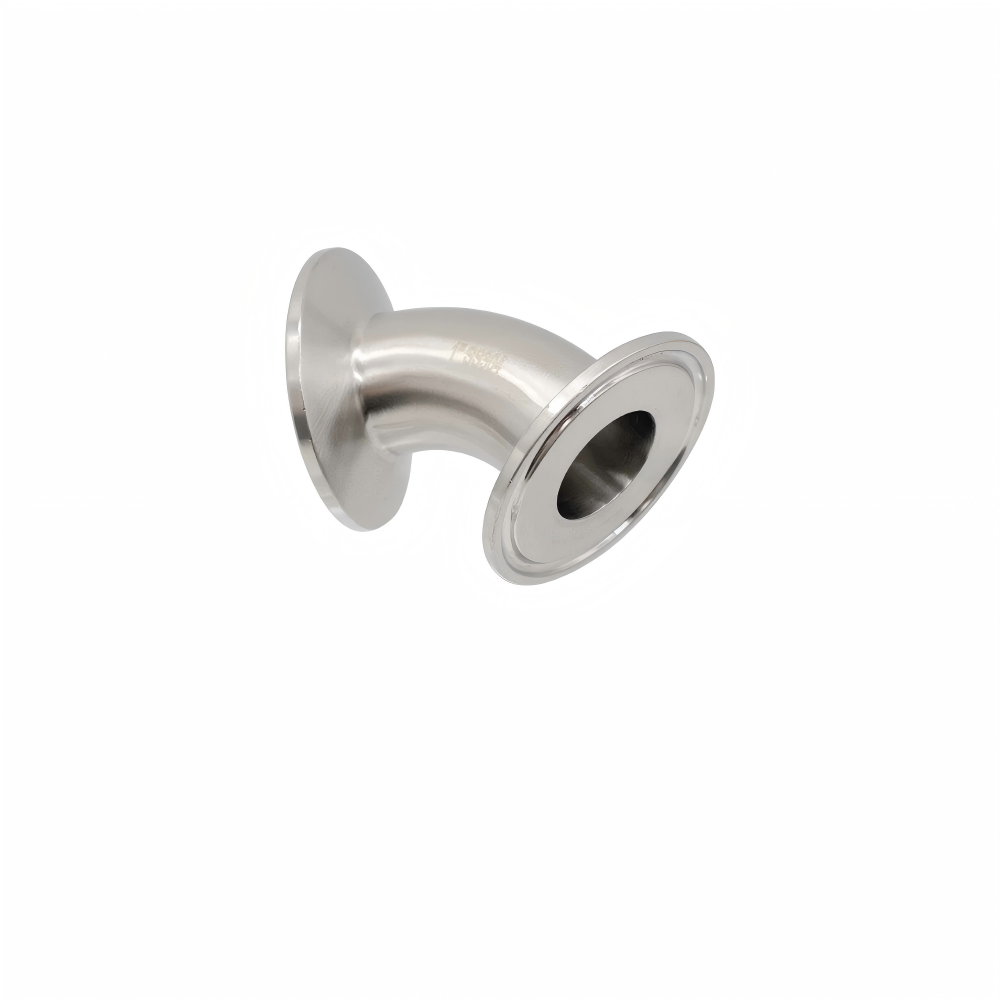

Tri-clamp 45° Elbow (2KMP）
KINGMAN sanitary 45° tri-clamp elbow is precision roll-formed from SS304/SS316L stainless steel and manufactured per 3A, SMS, DIN hygienic standards. Adopting weld-free tri-clamp quick connection structure, it supports flexible pipeline layout adjustment and convenient disassembly maintenance. The gentle 45° small-angle transition features smooth and regular dead-leg-free flow path with excellent sealing and repeatability, widely used in detachable hygienic process pipelines for food, pharmaceutical and biotech industries.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Elbow |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short , 90°/45°/180° , Elbow R=1.5D |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

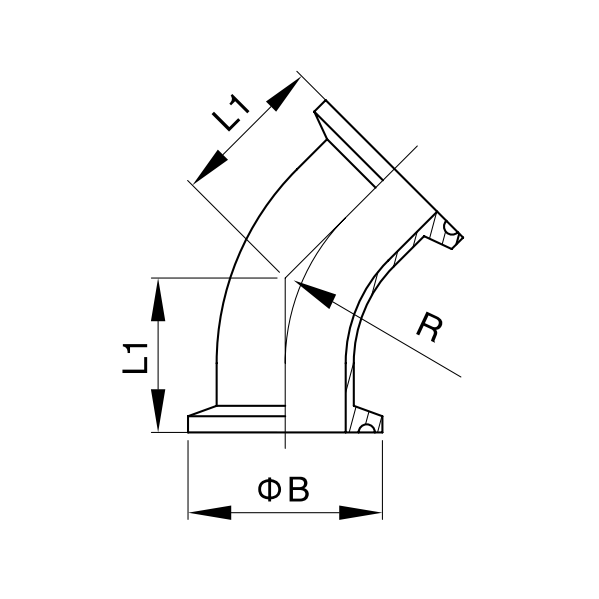

DIN Standard
| Material Code | Size | L1 | B | R |
|---|---|---|---|---|
| FE45DINCCS0411020 | DN20 | 34.5 | 34.0 | 40.0 |
| FE45DINCCS0411025 | DN25 | 42.2 | 50.5 | 50.0 |
| FE45DINCCS0411032 | DN32 | 44.3 | 50.5 | 55.0 |
| FE45DINCCS0411040 | DN40 | 46.3 | 50.5 | 60.0 |
| FE45DINCCS0411050 | DN50 | 50.5 | 64.0 | 70.0 |
| FE45DINCCS0411065 | DN65 | 61.2 | 91.0 | 80.0 |
| FE45DINCCS0411080 | DN80 | 65.3 | 106.0 | 90.0 |
| FE45DINCCS0411100 | DN100 | 69.5 | 119.0 | 100.0 |

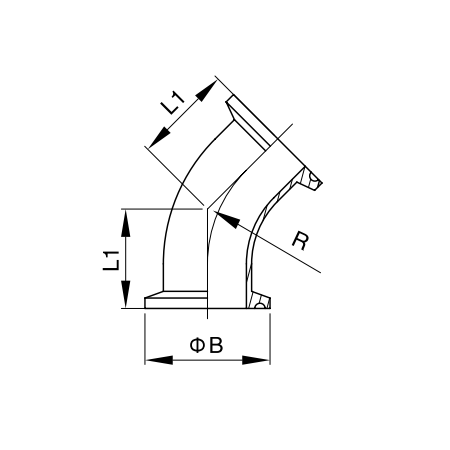

3A Standard
| Material Code | Size | L1 | B | R |
|---|---|---|---|---|
| FE453ACCS0411100 | 1" | 28.5 | 50.5 | 38.1 |
| FE453ACCS0411150 | 1 1/2" | 36.5 | 50.5 | 57.2 |
| FE453ACCS0411200 | 2" | 44.5 | 64.0 | 76.2 |
| FE453ACCS0411250 | 2 1/2" | 52.3 | 77.5 | 95.3 |
| FE453ACCS0411300 | 3" | 60.3 | 91.0 | 114.3 |
| FE453ACCS0411400 | 4" | 76.2 | 119.0 | 152.4 |

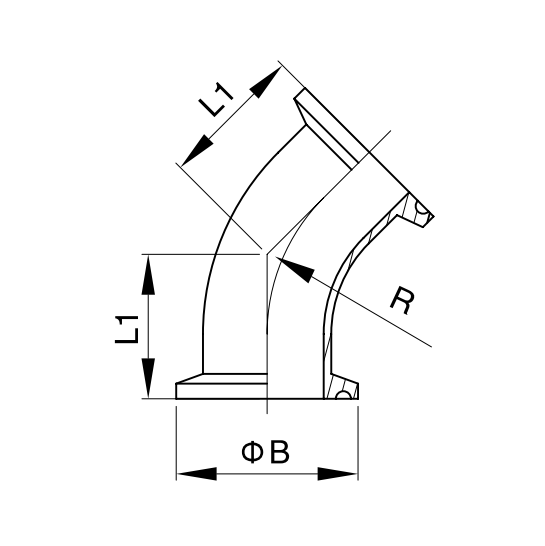

ISO Standard
| Material Code | Size | L1 | B | R |
|---|---|---|---|---|
| FE45ISOCCS0411025 | 25 | 35.4 | 50.5 | 33.5 |
| FE45ISOCCS0411032 | 32 | 37.2 | 50.5 | 38.0 |
| FE45ISOCCS0411038 | 38 | 41.6 | 50.5 | 48.5 |
| FE45ISOCCS0411051 | 51 | 46.6 | 64.0 | 60.5 |
| FE45ISOCCS0411063 | 63 | 56.1 | 77.5 | 83.5 |
| FE45ISOCCS0411076 | 76 | 58.2 | 91.0 | 88.5 |
| FE45ISOCCS0411089 | 89 | 64.4 | 106.0 | 103.5 |
| FE45ISOCCS0411102 | 102 | 80.5 | 119.0 | 127.0 |
Features
- 1. Fully compliant with 3A, SMS and DIN international hygienic specifications with universal standard clamp sizes, perfectly interchangeable with full-range sanitary fittings, sealing accessories and valves.
- 2. Precision forming craft ensures compact and stable structure with excellent pressure resistance, maintaining durable performance without deformation, loosening or leakage after repeated disassembly and connection.
- 3. Weld-free quick-install design requires no on-site hot work, ensuring safe and efficient installation and modification without polluting clean workshop environment.
- 4. Gentle 45° transition reduces flow resistance and ensures uniform and stable transportation, effectively minimizing medium impact, fluctuation and deposition.
- 5. Mirror-polished smooth flow path enables unobstructed medium passage with low dirt accumulation, maintaining high cleanness and fluency of pipelines during long-term operation.
- 6. Detachable independent structure supports segmented pipeline maintenance and displacement modification, greatly improving the flexibility, adaptability and maintainability of hygienic pipelines.
Working Principle
Sanitary 45° Tri-clamp Elbow features a weld-free quick-install structure. It is rapidly mounted using 3A/SMS/DIN standard clamps and sanitary gaskets without welding contamination, fully suitable for clean workshop construction. Tight clamping enables uniform gasket compression and reliable leak-proof sealing. During operation, the seamless smooth 45° arc flow path ensures steady medium transition with flow stabilization and reduced turbulence. The detachable design allows convenient disassembly for inspection, maintenance and layout adjustment, realizing flexible installation, stable transportation and easy maintenance of hygienic pipeline systems.
