Short Weld 90° Elbow (2WCL)

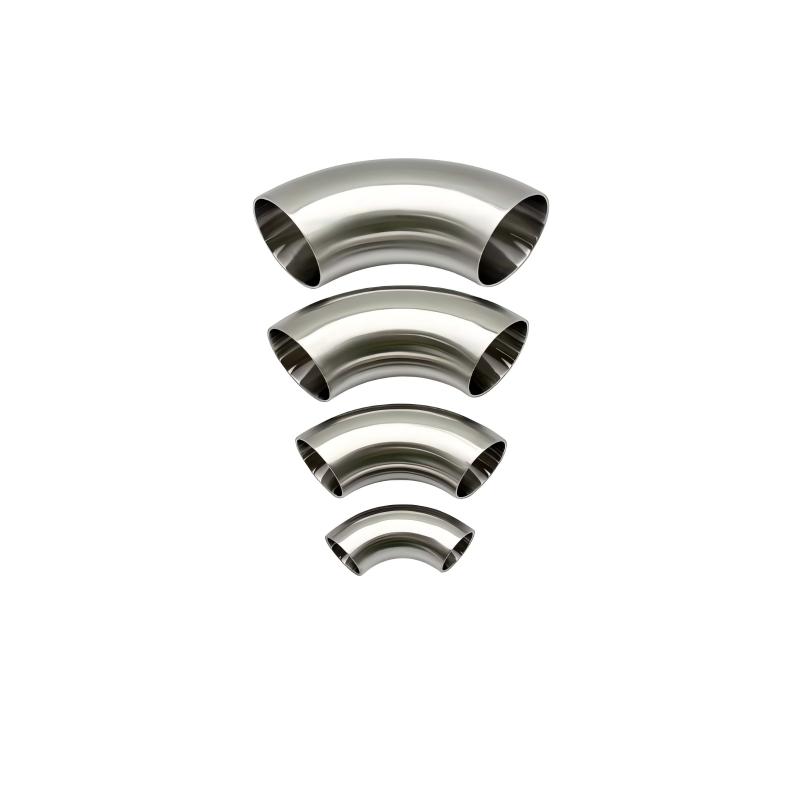

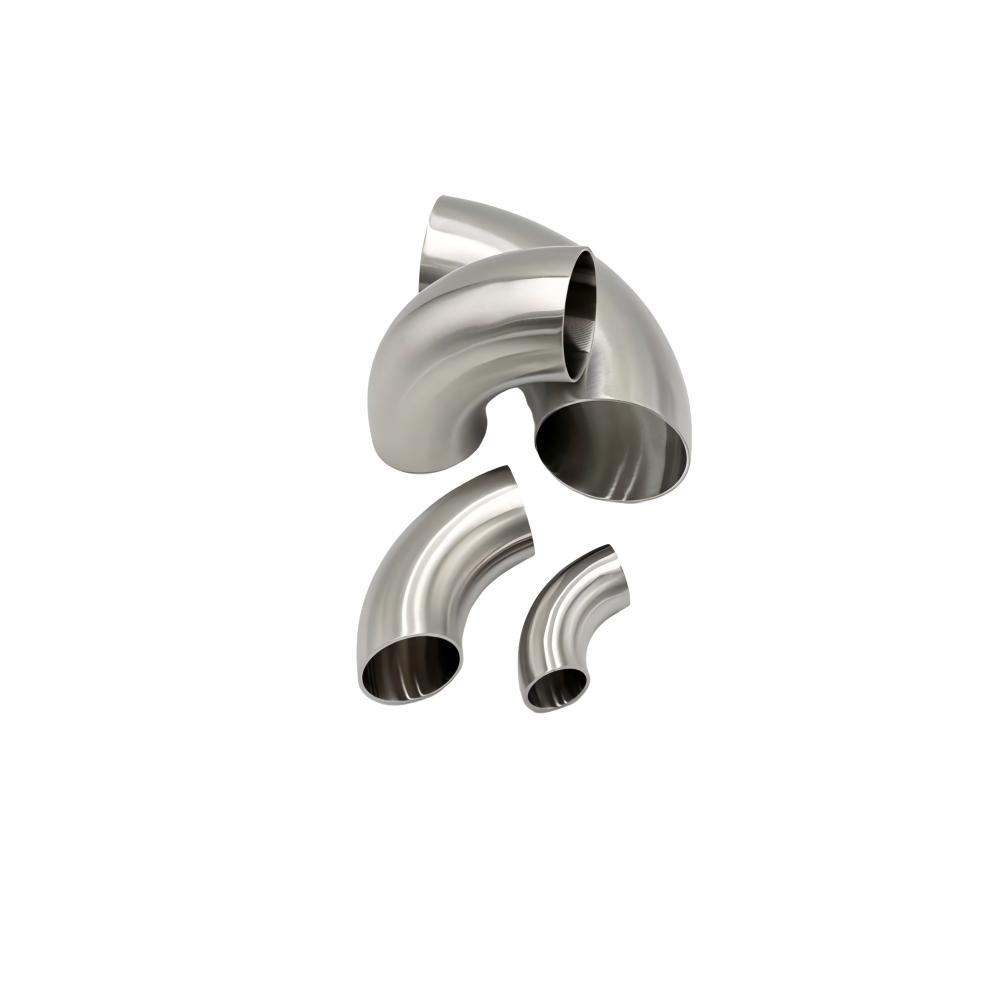

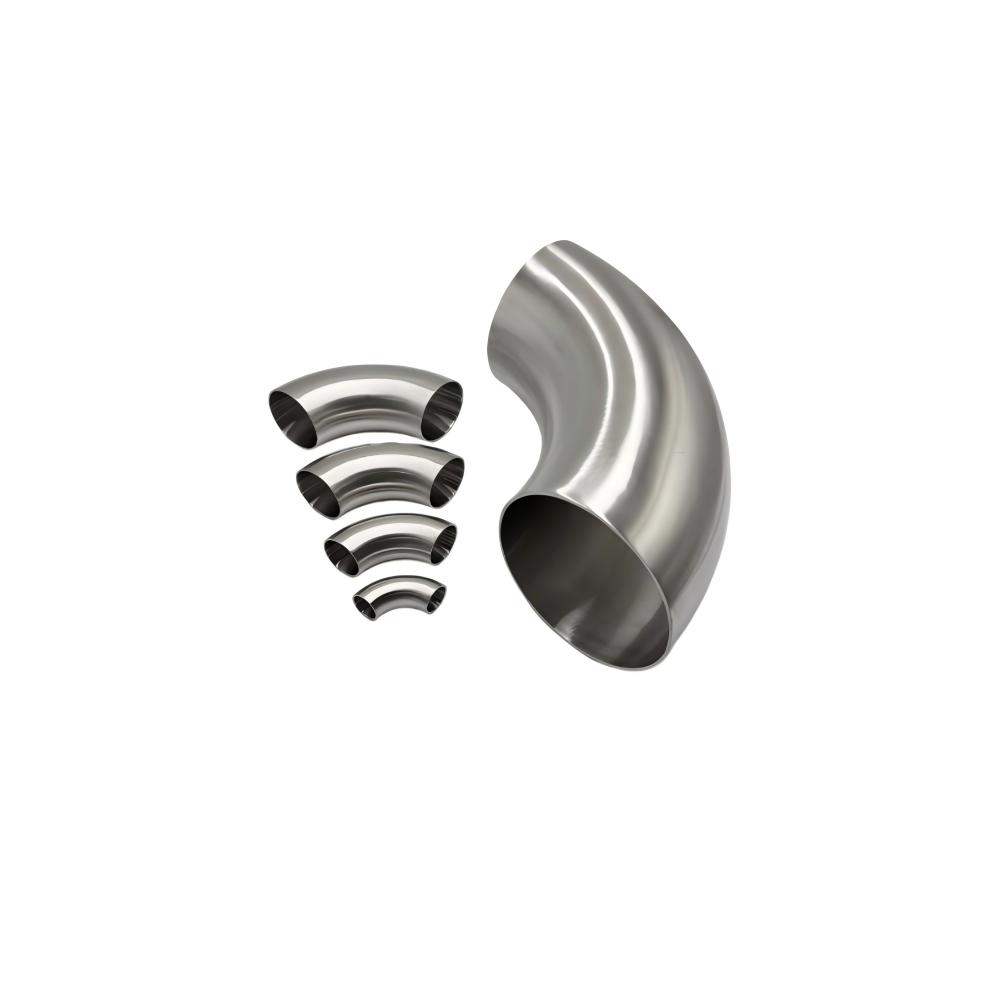

KINGMAN sanitary 90° Short weld elbow is precisely roll-formed from SS304/SS316L stainless steel and manufactured in full compliance with 3A, SMS DIN and BPE hygienic standards. Designed specifically for directional transition and connection of sanitary process pipelines, it features a high-precision mirror-polished inner bore with a smooth, dead-leg-free flow path for stable fluid transportation. Standard weld ends ensure perfect compatibility with standardized hygienic piping systems. It is widely applied in food, beverage, pharmaceutical and bioengineering pipeline projects to maintain neat, sealed and stable overall pipeline operation.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Elbow |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short , 90°/45°/180° , Elbow R=1.5D |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

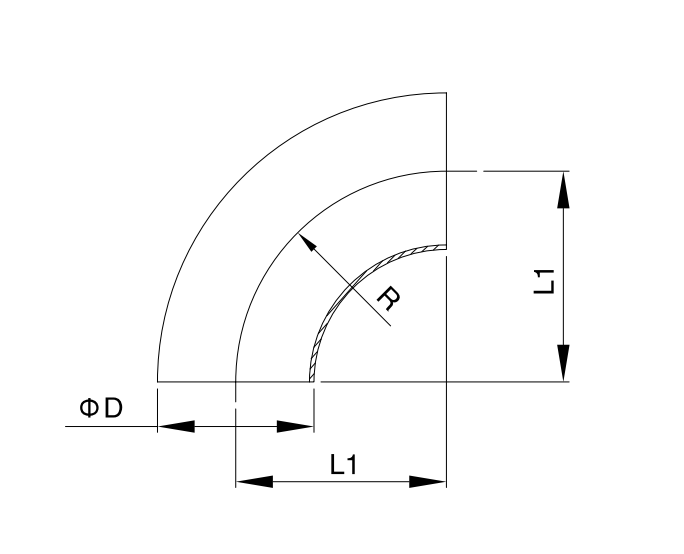

DIN Standard
| Material Code | Size | L1 | D | R |
|---|---|---|---|---|
| FE90DINWWS0411010 | DN10 | 26.0 | 12.0 | 26.0 |
| FE90DINWWS0411015 | DN15 | 35.0 | 18.0 | 35.0 |
| FE90DINWWS0411020 | DN20 | 40.0 | 22.0 | 40.0 |
| FE90DINWWS0411025 | DN25 | 50.0 | 28.0 | 50.0 |
| FE90DINWWS0411032 | DN32 | 55.0 | 34.0 | 55.0 |
| FE90DINWWS0411040 | DN40 | 60.0 | 40.0 | 60.0 |
| FE90DINWWS0411050 | DN50 | 70.0 | 52.0 | 70.0 |
| FE90DINWWS0411065 | DN65 | 80.0 | 70.0 | 80.0 |
| FE90DINWWS0411080 | DN80 | 90.0 | 85.0 | 90.0 |
| FE90DINWWS0411100 | DN100 | 100.0 | 104.0 | 100.0 |
| FE90DINWWS0411125 | DN125 | 187.0 | 129.0 | 187.0 |
| FE90DINWWS0411150 | DN150 | 225.0 | 154.0 | 225.0 |

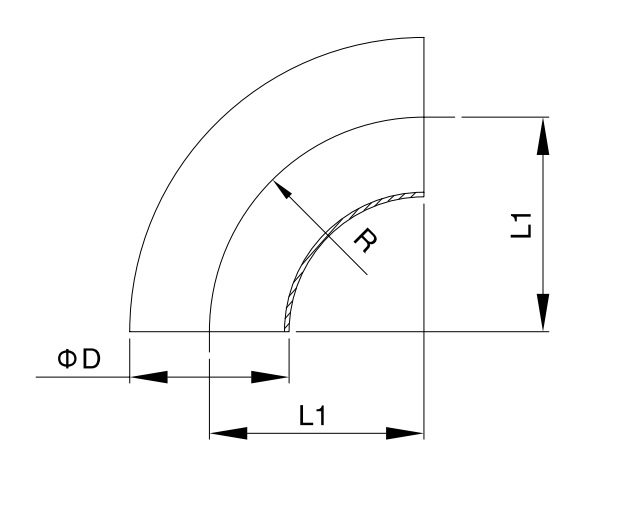

SMS Standard
| Material Code | Size | L1 | D | R |
|---|---|---|---|---|
| FE90SMSWWS0411025 | 25 | 38.1 | 25.4 | 38.1 |
| FE90SMSWWS0411032 | 32 | 47.7 | 31.8 | 47.7 |
| FE90SMSWWS0411038 | 38 | 57.1 | 38.1 | 57.1 |
| FE90SMSWWS0411051 | 51 | 76.2 | 50.8 | 76.2 |
| FE90SMSWWS0411063 | 63 | 95.2 | 63.5 | 95.2 |
| FE90SMSWWS0411076 | 76 | 114.3 | 76.2 | 114.3 |
| FE90SMSWWS0411102 | 102 | 152.4 | 101.6 | 152.4 |

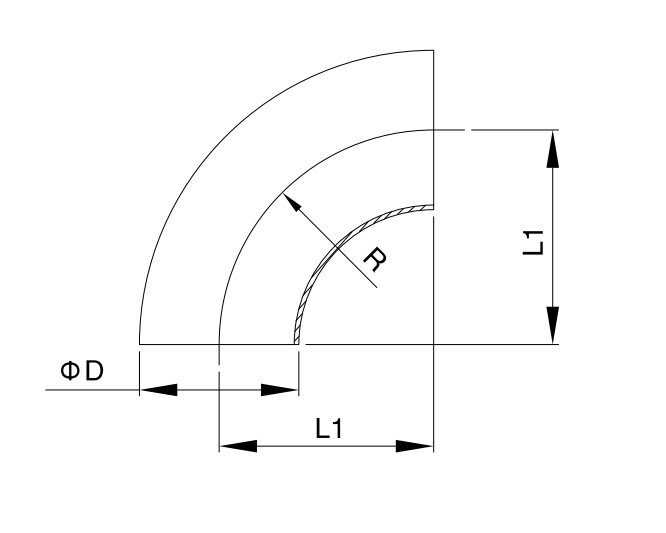

3A Standard
| Material Code | Size | L1 | D | R |
|---|---|---|---|---|
| FE903AWWS0411050 | 1/2 " | 19.1 | 12.7 | 19.1 |
| FE903AWWS0411075 | 3/4 " | 28.6 | 19.1 | 28.6 |
| FE903AWWS0411100 | 1 " | 38.1 | 25.4 | 38.1 |
| FE903AWWS0411200 | 1 1/2 " | 57.2 | 38.1 | 57.2 |
| FE903AWWS0411250 | 2 " | 76.2 | 50.8 | 76.2 |
| FE903AWWS0411300 | 2 1/2 " | 95.3 | 63.5 | 95.3 |
| FE903AWWS0411400 | 3 " | 114.3 | 76.2 | 114.3 |
| FE903AWWS0411500 | 4 " | 152.4 | 101.6 | 152.4 |
| FE903AWWS0411600 | 5 " | 190.5 | 127.0 | 190.5 |
| 6 " | 228.6 | 152.4 | 228.6 |
Features
- 1. Manufactured in accordance with 3A, SMS and DIN BPE international hygienic standards with high dimensional accuracy and universal compatibility, perfectly matching mainstream sanitary fittings and valves for standardized pipeline assembly.
- 2. Adopting precision forming technology, the pipe wall features uniform thickness and compact structure, delivering excellent pressure resistance and structural stability without deformation, loosening or leakage during long-term pipeline operation.
- 3. Internal and external mirror polishing creates smooth curved transition with low fluid resistance, ensuring uniform medium transportation and reducing material adhesion and pipeline contamination risks.
- 4. Standard 90° directional angle enables neat and standardized pipeline layout, suitable for vertical transition, layered piping and equipment connection of process pipelines.
- 5. Optional SS304/SS316L materials provide excellent acid, alkali and high-temperature resistance, adapting to long-term transportation of various hygienic media in food and pharmaceutical industries.
- 6. Flat and smooth weld ends enable neat on-site welding and fine weld polishing, maintaining continuous and flawless flow path for the entire pipeline system.
Working Principle
Sanitary 90° Weld Elbow is a fixed pipeline transition fitting compliant with 3A/SMS/DIN standards. It is installed by butt-welding both ends with process pipelines to form a permanent and integrated piping structure with zero looseness or leakage risk during long-term operation. In service, the smooth inner arc flow path steadily changes the medium flow direction, reducing fluid impact and pressure loss while avoiding turbulence and medium accumulation. The rigid welded installation enhances overall pipeline stability, ensuring consistent and reliable fluid transportation for continuous hygienic production systems.
Why Choose KINGMAN
Weld-End Match Review
Pipe OD, wall thickness and weld-end standard can be checked against your drawing before production, reducing field adjustment when short 90° sanitary elbows are installed in fixed hygienic lines.
Small-Run Friendly
Samples and small trial quantities are supported, giving equipment builders and project buyers a lower-commitment way to confirm elbow dimensions and weld compatibility before bulk purchasing.
Verified Surface Finish
Mechanical polishing to Ra ≤ 0.51 μm and electropolishing to Ra ≤ 0.38 μm are available when sanitary process piping requires tighter wetted-surface control.
