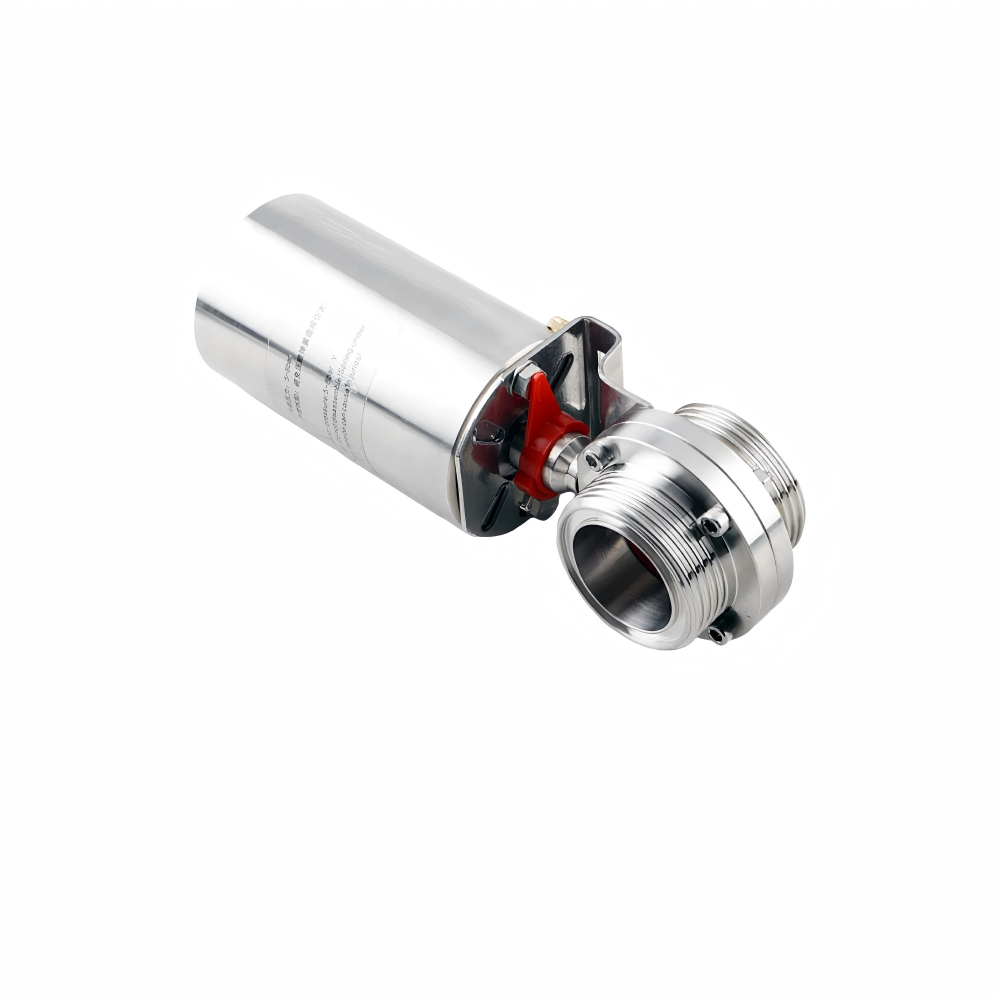

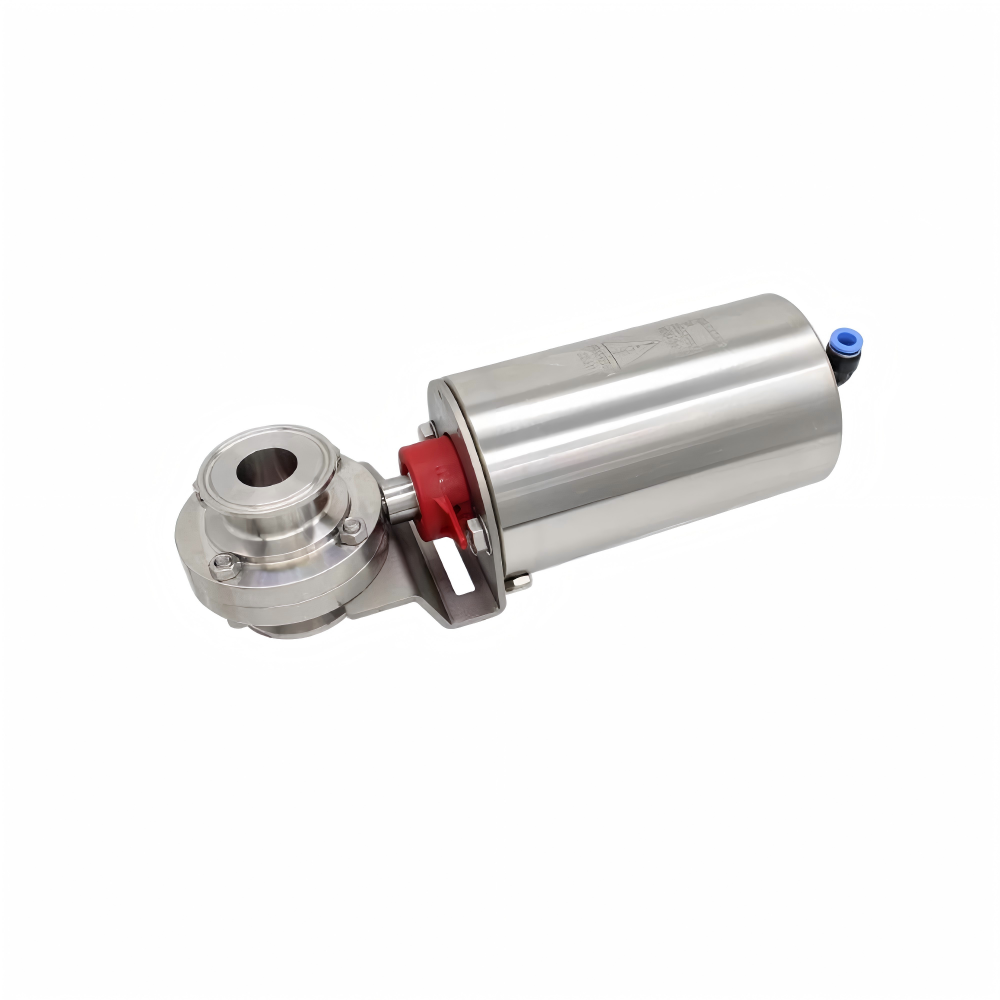

Sanitary Pneumatic Butterfly Valve
KINGMAN Pneumatic Sanitary Tri-clamp Ball Valve is an automatic on-off valve specially engineered for hygienic fluid transfer systems. It consists of a stainless steel sanitary ball valve body and a stainless steel cylindrical pneumatic actuator. Adopting tri-clamp connection design, it can be quickly mounted and detached without welding. Widely used in food, beverage, dairy, biopharmaceutical and fine chemical industries, it performs rapid cut-off or connection of fluid media. It adapts to automated production workflows and meets frequent CIP cleaning requirements for sanitary pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Butterfly Valve |
| Size Range | DN15‑DN200 (approx. 1/2"‑8") |
| Body & Disc Material | 304 / 316L stainless steel (AL6XN, Hastelloy, Alloy 22 available on request) |
| Seal Material | EPDM (standard); PTFE / FKM (Viton) / Silicon (optional — please confirm) |
| Working Temperature | 130 °C |
| Max. Working Pressure | 1000 kPa (10 Bar) for DN15‑DN100; 800 kPa (8 Bar) for DN125‑DN150 |
| Min. Working Pressure | Full vacuum (with EPDM seal) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF / ASME BPE |
| Connection Type | Tri‑Clamp / Weld / Threaded / Flange (please confirm) |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

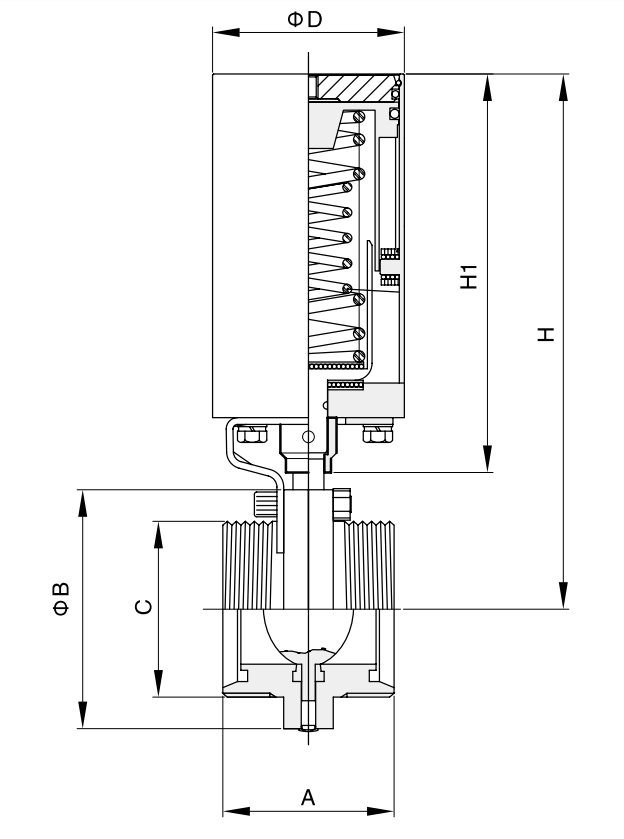

Dimensions
DIN Standard
| Material Code | Size | A | B | C | D | H | H1 |
|---|---|---|---|---|---|---|---|
| BF01DINTT01NO04EP015 | DN15 | 66.0 | 78.0 | 34 × 1/8 | 85.0 | 222.5 | 180.5 |
| BF01DINTT01NO04EP020 | DN20 | 66.0 | 78.0 | 44 × 1/6 | 85.0 | 222.5 | 180.5 |
| BF01DINTT01NO04EP025 | DN25 | 66.0 | 78.0 | 52 × 1/6 | 85.0 | 222.5 | 180.5 |
| BF01DINTT01NO04EP032 | DN32 | 70.0 | 82.0 | 58 × 1/6 | 85.0 | 224.5 | 180.5 |
| BF01DINTT01NO04EP040 | DN40 | 74.0 | 88.0 | 65 × 1/6 | 85.0 | 227.5 | 180.5 |
| BF01DINTT01NO04EP050 | DN50 | 76.0 | 110.0 | 78 × 1/6 | 85.0 | 238.5 | 180.5 |
| BF01DINTT01NO04EP065 | DN65 | 84.0 | 127.0 | 95 × 1/6 | 85.0 | 247.0 | 180.5 |
| BF01DINTT01NO04EP080 | DN80 | 90.0 | 140.0 | 110 × 1/4 | 85.0 | 253.5 | 180.5 |
| BF01DINTT01NO04EP100 | DN100 | 108.0 | 160.0 | 130 × 1/4 | 85.0 | 263.5 | 180.5 |
| BF01DINTT01NO04EP125 | DN125 | 130.0 | 190.0 | 160 × 1/4 | 133.0 | 418.0 | 298.0 |
| BF01DINTT01NO04EP150 | DN150 | 150.0 | 225.0 | 190 × 1/4 | 133.0 | 435.5 | 298.0 |
Features
- Made of high-quality stainless steel, the inner flow channel adopts sanitary polishing treatment with no dead zones, effectively reducing medium residue and avoiding bacterial reproduction and cross-contamination.
- Equipped with pneumatic actuator for 90° rotary drive, featuring fast response and stable switching performance. It is suitable for automatic interlock control of food, beverage and biopharmaceutical production lines.
- Adopts food-grade hygienic valve seat, which fits closely with butterfly disc to realize bubble-tight sealing, reliably preventing medium leakage and medium cross-contamination.
- Standard tri-clamp connection design enables quick disassembly without cutting pipelines. It facilitates internal inspection, seal replacement, CIP cleaning and SIP sterilization.
- Compact and lightweight structure, easy for inline installation on sanitary pipelines. It has good media compatibility with liquid, hot water, steam and standard cleaning agents.
- Optional accessories such as solenoid valve and position feedback device are available to realize remote signal transmission, meeting diversified automatic control requirements of hygienic process systems.
Working Principle
Sanitary Pneumatic Butterfly Valve: Compressed air enters the pneumatic actuator and pushes the internal piston to generate torque, driving the connected valve stem and butterfly disc to rotate. A 90-degree rotation of the butterfly disc can fully open or block the flow passage, thereby realizing fluid connection or cut-off. When the air flow direction is switched, the piston moves reversely and rotates the butterfly disc back to switch the valve status between open and closed. The food-grade sanitary seat maintains tight contact with the butterfly disc for reliable sealing and prevents medium leakage. The tri-clamp ends connect with pipeline ferrules and gaskets to form a hygienic sealed joint, ensuring the medium flows in an isolated and clean channel; it supports quick disassembly for CIP/SIP cleaning and routine maintenance.
