Horizontal Pneumatic Butterfly Valve

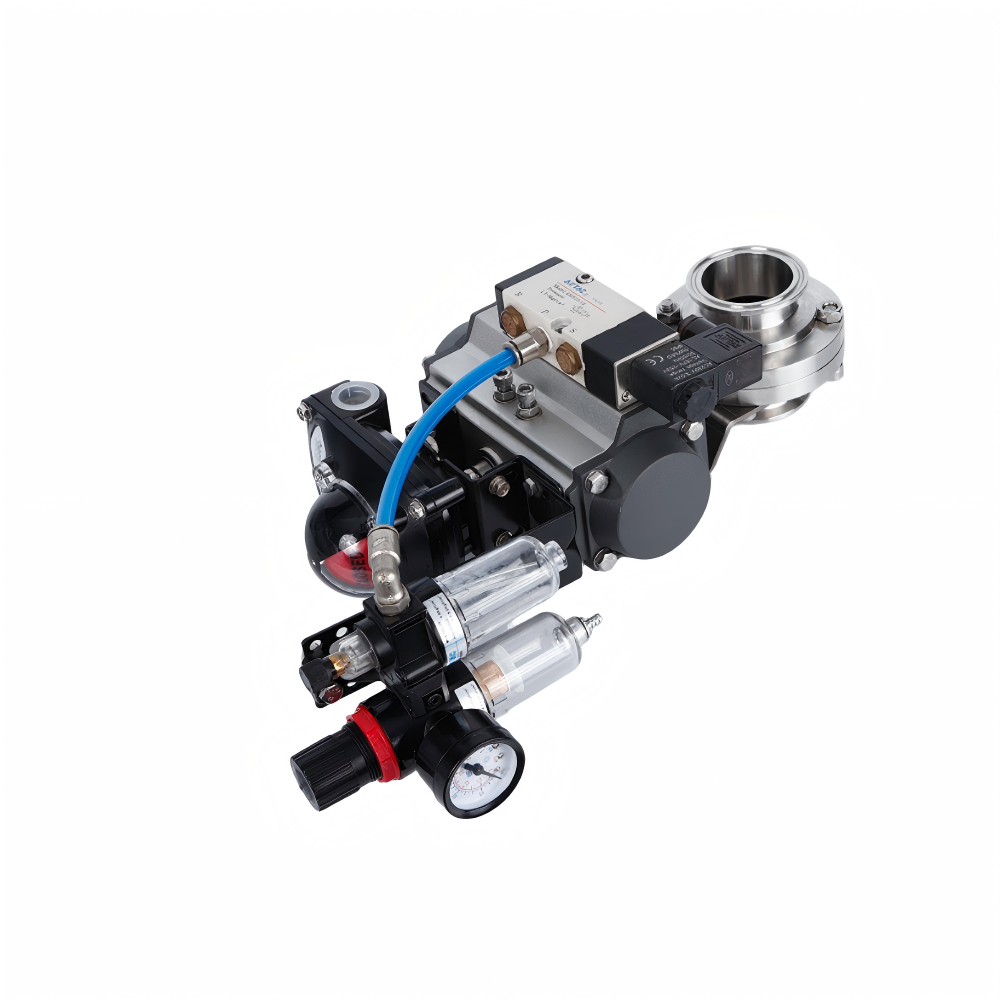

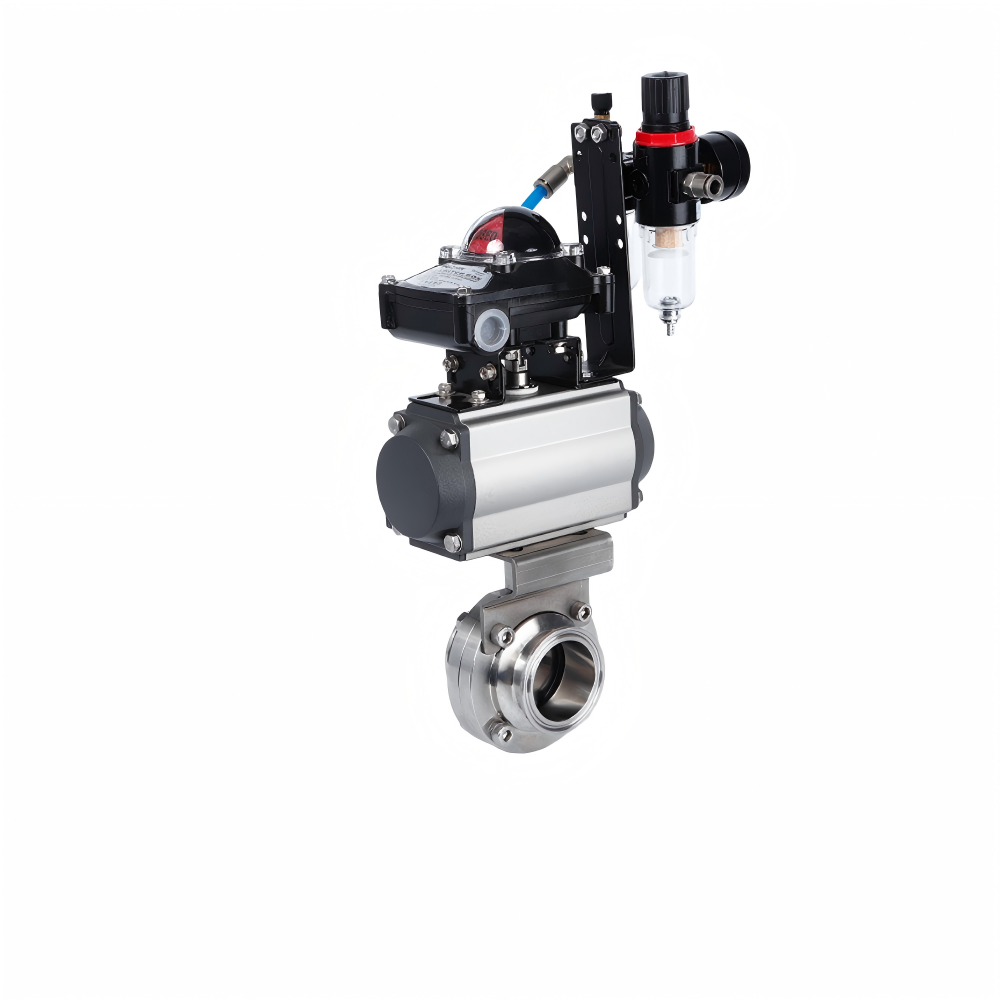

KINGMAN Horizontal Pneumatic Butterfly Valve is an automatic flow control valve specially developed for hygienic fluid processing lines. It is assembled with an aluminum pneumatic actuator, position feedback switch, air filter regulator and stainless steel sanitary valve body. The tri-clamp connection design allows quick installation and removal without welding. It is widely used to regulate or cut off media flow in food, beverage, dairy, biopharmaceutical and fine chemical industries. It can work automatically under remote pneumatic control, which fits automated production and frequent CIP cleaning requirements.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Butterfly Valve |
| Size Range | DN15‑DN200 (approx. 1/2"‑8") |
| Body & Disc Material | 304 / 316L stainless steel (AL6XN, Hastelloy, Alloy 22 available on request) |
| Seal Material | EPDM (standard); PTFE / FKM (Viton) / Silicon (optional — please confirm) |
| Working Temperature | 130 °C |
| Max. Working Pressure | 1000 kPa (10 Bar) for DN15‑DN100; 800 kPa (8 Bar) for DN125‑DN150 |
| Min. Working Pressure | Full vacuum (with EPDM seal) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF / ASME BPE |
| Connection Type | Tri‑Clamp / Weld / Threaded / Flange (please confirm) |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Complete integrated assembly with actuator, position indicator and air treatment unit. It can be directly connected to air source and control system for plug-and-play use.
- Sanitary stainless steel valve body and disc, smooth internal surface with no dead corners. It prevents medium residue and reduces bacterial contamination risk.
- Tri-clamp connection design for fast assembly and disassembly. It simplifies on-site inspection, maintenance and cleaning operations.
- Aluminum pneumatic actuator with fast response, stable switch action, suitable for frequent on-off cycles in automatic production lines.
- Visual position indicator + limit switch, providing real-time valve open/close feedback to the control system for remote monitoring.
- Resilient food-grade sealing material, good sealing performance and excellent resistance to hot water, steam and common cleaning agents.
- Compact overall structure, easy to mount on pipelines, strong adaptability for space-limited hygienic process systems.
Working Principle
Compressed air passes through the filter regulator to get cleaned and pressure-stabilized, then enters the pneumatic actuator of the Horizontal Pneumatic Butterfly Valve. The air pressure drives the internal piston of the actuator to rotate the shaft and butterfly disc. Rotating the disc by 90 degrees can fully open or close the flow passage, so as to realize cutting off or adjusting fluid flow. The position switch captures the valve status and sends feedback signals to the control cabinet. When air supply changes, the actuator reverses movement and switches the valve state. Its tri-clamp end forms a hygienic sealed joint with pipeline ferrules and gaskets, keeping the fluid isolated from external environment.
Why Choose KINGMAN
Controls-Ready Assembly
Horizontal pneumatic butterfly valve packages can be coordinated with actuator, position indication and air-treatment components, reducing separate sourcing work for automated sanitary process equipment.
Application Engineering Support
Three R&D centers support sanitary piping, fittings and valve engineering, giving project teams a broader technical base when actuator orientation or installation interfaces require adjustment.
Scalable Repeat Supply
Daily sanitary valve capacity reaches 2,000 sets, providing scalable supply for equipment manufacturers and distributors purchasing horizontal pneumatic butterfly valves across repeat production programs.
