Clamp Long Cross (9MP)

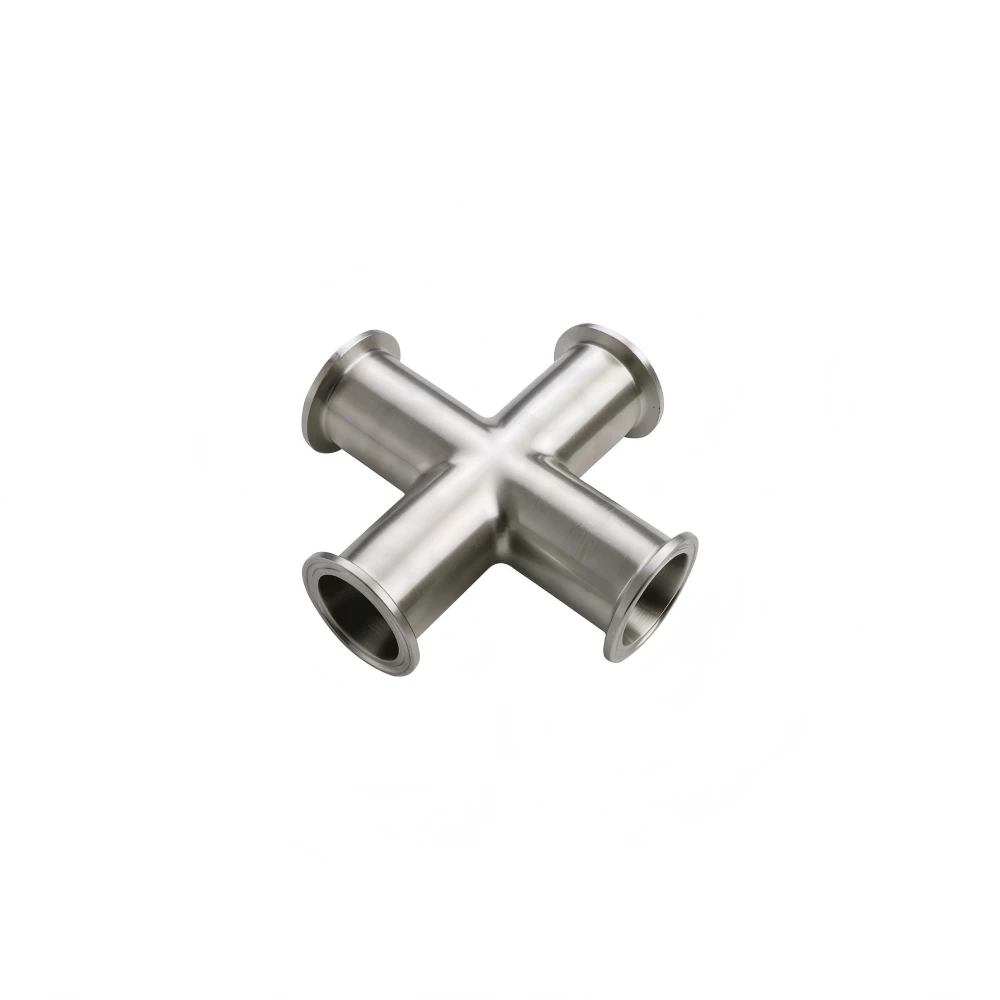

This sanitary Clamp Long Cross is manufactured from premium 316L stainless steel. It features extended straight pipe sections on all four ports with standard tri-clamp connections. Specially designed for hygienic process pipelines in food & beverage, dairy, pharmaceutical, biotechnology and cosmetic industries. The long straight segments allow convenient installation of sensors, sampling ports, valves and other inline components. All internal surfaces are precision polished with smooth transition at intersections, no dead corners and no medium retention. Fully compatible with CIP online cleaning and SIP steam sterilization, complying with GMP and 3A hygienic standards. It serves as a multi-way connecting component to split, converge and distribute fluid in sanitary piping systems.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Tee / Cross |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short ,Equal Tee / Pull Tee / reducer Tee / Cross / U Tee… |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions

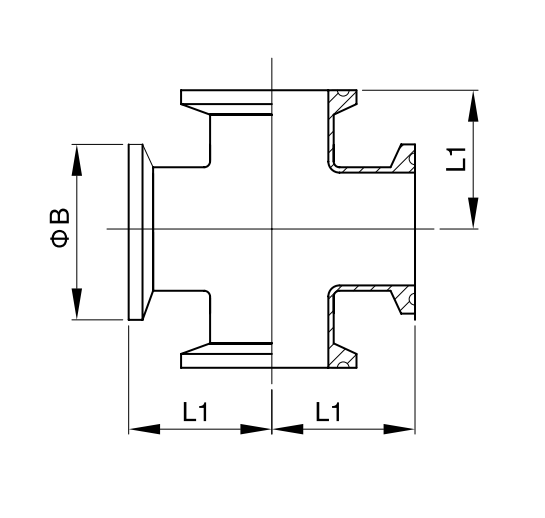

3A Standard
| Material Code | Size | L1 | B |
|---|---|---|---|
| FS013ACCCCS0411100 | 1" | 60.3 | 50.5 |
| FS013ACCCCS0411150 | 1 1/2" | 69.9 | 50.5 |
| FS013ACCCCS0411200 | 2" | 88.9 | 64.0 |
| FS013ACCCCS0411250 | 2 1/2" | 88.9 | 91.0 |
| FS013ACCCCS0411300 | 3" | 95.3 | 106.0 |
| FS013ACCCCS0411400 | 4" | 114.3 | 119.0 |
Features
- 1. Compliant with full sets of international high-end hygienic standards including BPE, 3A, SMS and DIN. The four universal tri-clamp ports are fully interchangeable with mainstream sanitary clamps, gaskets, valves and fittings for all high-purity hygienic pipeline systems.
- 2. Full four-way tri-clamp structure supports independent disassembly and assembly of each port. It realizes multi-directional diversion, confluence and opposite flow transmission, replacing multiple tees and greatly simplifying complex pipeline layout.
- 3. Adopting precision forming technology, the cross features compact and uniform integral structure with balanced wall thickness and force bearing. It maintains stable pressure resistance without deformation or loosening after repeated disassembly, suitable for long-term alternating flow working conditions.
- 4. Large smooth arc transition at the cross junction eliminates sharp corners and structural dead zones, reducing turbulence, vortex and pressure loss. It ensures balanced four-way flow distribution and effectively protects the quality of high-purity and high-activity media.
- 5. Full-range ultra-smooth mirror polishing creates a dead-leg-free inner surface with no dirt accumulation blind areas. It supports comprehensive CIP online cleaning, avoids material adhesion residue and maintains long-term BPE-grade sterile and high-hygiene pipeline operation.
- 6. Weld-free quick-install design requires no on-site hot work, eliminating welding pollution and high-temperature deformation. It perfectly adapts to sterile clean workshop environments and greatly improves the efficiency of pipeline maintenance, disassembly cleaning and layout upgrading.
Working Principle
Sanitary Tri-clamp Cross adopts four-way independent weld-free tri-clamp installation. It can be rapidly connected to four-direction pipelines with standard sanitary gaskets and clamps without hot work, complying fully with BPE clean workshop construction specifications. After tight clamping, uniform gasket compression achieves comprehensive leak-proof sealing, preventing medium leakage and external contamination. During operation, the smooth arc cross flow path supports flexible multi-directional flow modes, including one-in three-out, two-in two-out and multi-way confluence. It delivers gentle flow transition and balanced flow distribution without dead retention or turbulence. Compared with welded cross, the detachable tri-clamp structure allows convenient disassembly for thorough dead-leg-free cleaning, segmented maintenance and pipeline upgrade, fully meeting the high-hygiene, detachable and easy-maintenance requirements of high-end sanitary process systems and ensuring long-term stable operation of high-purity medium transportation.
Why Choose KINGMAN
Multi-Port Clamp Engineering
Port spacing, clamp standard and cross dimensions can be reviewed against your piping layout, helping a long sanitary cross fit multi-branch equipment with less field adjustment.
Consistent Volume Supply
With fittings capacity up to 5,000 pieces per day, KINGMAN can support repeat sanitary cross orders for equipment programs, project packages and distributor replenishment.
International Project Experience
Customers across 50+ markets give KINGMAN practical experience with different sanitary standards, export documentation and purchasing requirements for international hygienic process projects.
