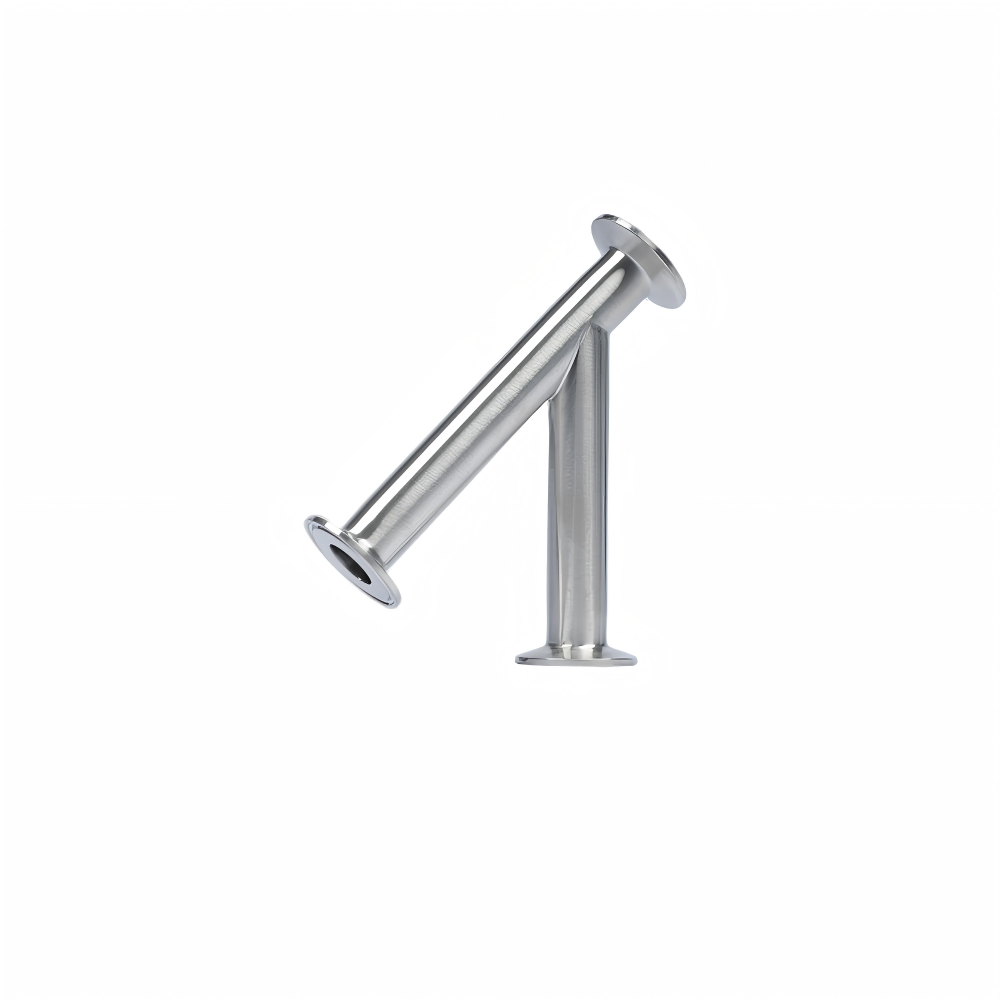

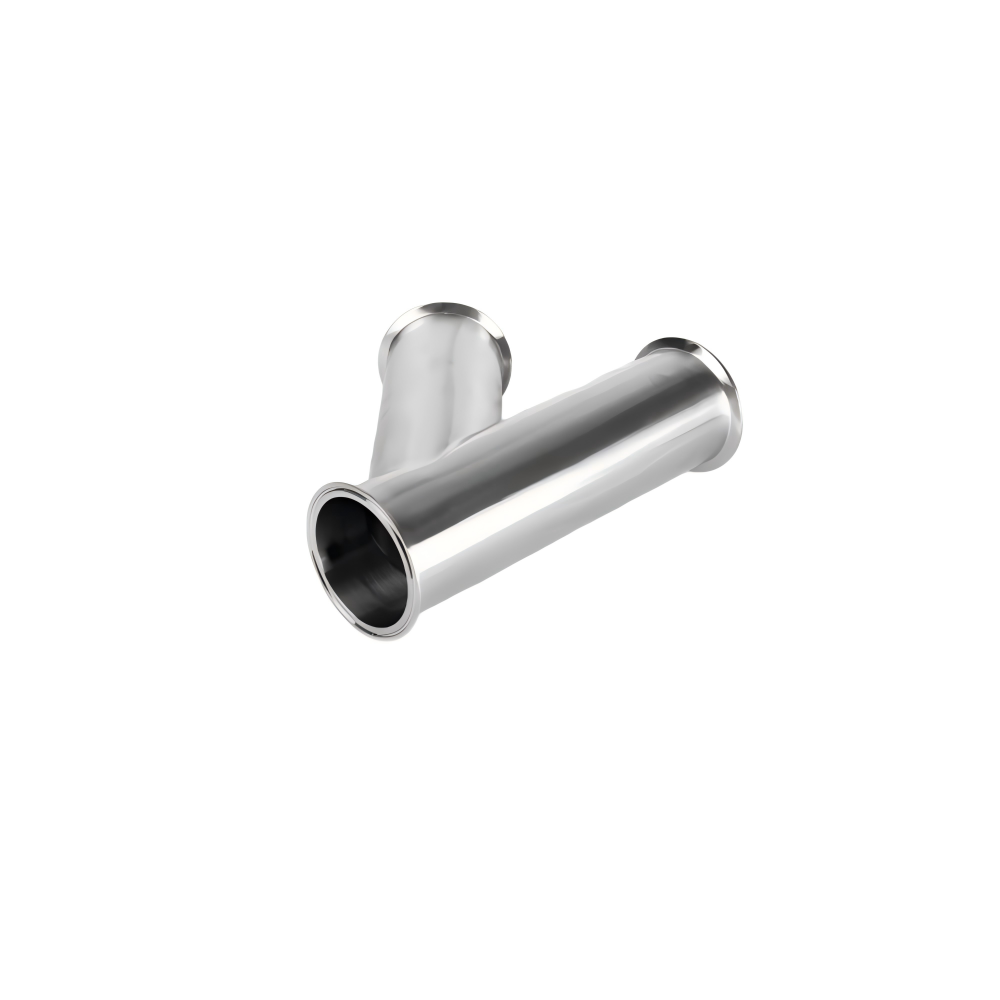

45° Lateral Y Tee
KINGMAN sanitary Y-type weld tee is precisely manufactured from SS304/SS316L stainless steel, fully compliant with 3A, SMS, DIN RJT and BPE hygienic standards. It adopts Y-type 45° angled branch structure instead of conventional right-angle tee. The branch pipe diverts smoothly at an inclined angle with continuous streamlined flow path. Full-range high-precision mirror polishing is applied on inner surface. Gentle arc transition at junction eliminates dead zones and steps, greatly reducing fluid impact, vortex and material sedimentation risk. Standard weld ends are suitable for high-clean process piping in biopharmaceuticals, high-purity fluid, food and beverage industries. It meets BPE high-purity medium transfer and CIP/SIP online cleaning & sterilization requirements, ideal for processes requiring smooth diversion and minimal sediment accumulation.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Y-tee |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | True "Y" / Lateral "Y" / T-bend |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

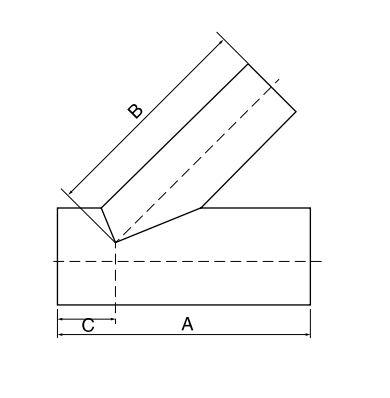

Dimensions
3A Standard
| Material Code | Size | A | B | C |
|---|---|---|---|---|
| FT043AWWW0411050 | 1/2" | 152.4 | 127.0 | 25.4 |
| FT043AWWW0411075 | 3/4" | 152.4 | 127.0 | 25.4 |
| FT043AWWW0411100 | 1" | 152.4 | 127.0 | 25.4 |
| FT043AWWW0411150 | 1 1/2" | 187.3 | 173.1 | 30.2 |
| FT043AWWW0411200 | 2" | 222.2 | 180.9 | 41.3 |
| FT043AWWW0411250 | 2 1/2" | 254 | 215.9 | 38.1 |
| FT043AWWW0411300 | 3" | 273.1 | 225.4 | 47.6 |
| FT043AWWW0411400 | 4" | 325.5 | 273.1 | 52.4 |
| FT043AWWW0411600 | 6" | 419.1 | 317.5 | 101.6 |
3A Standard
| Material Code | Size | A | B | C |
|---|---|---|---|---|
| FT043AWWW0411150100 | 1 1/2 × 1 | 187.3 | 157.2 | 30.2 |
| FT043AWWW0411200100 | 2 × 1 | 222.2 | 181.0 | 41.3 |
| FT043AWWW0411200150 | 2 × 1 1/2 | 222.2 | 181.0 | 41.3 |
| FT043AWWW0411250100 | 2 1/2 × 1 | 254 | 215.9 | 38.1 |
| FT043AWWW0411250150 | 2 1/2 ×1 1/2 | 254 | 215.9 | 38.1 |
| FT043AWWW0411250200 | 2 1/2 × 2 | 254 | 215.9 | 38.1 |
| FT043AWWW0411300100 | 3 × 1 | 273.1 | 225.4 | 47.6 |
| FT043AWWW0411300150 | 3 × 1 1/2 | 273.1 | 225.4 | 47.6 |
| FT043AWWW0411300200 | 3 × 2 | 273.1 | 225.4 | 47.6 |
| FT043AWWW0411300250 | 3 × 2 1/2 | 273.1 | 225.4 | 47.6 |
| FT043AWWW0411400100 | 4 × 1 | 325.5 | 273.1 | 52.4 |
| FT043AWWW0411400150 | 4 × 1 1/2 | 325.5 | 273.1 | 52.4 |
| FT043AWWW0411400200 | 4 × 2 | 274.7 | 273.1 | 52.4 |
| FT043AWWW0411400250 | 4 × 2 1/2 | 325.5 | 273.1 | 52.4 |
| FT043AWWW0411400300 | 4 × 3 | 325.5 | 273.1 | 52.4 |
Features
- Compliant with BPE, 3A, SMS and DIN international hygienic standards. Standardized dimensions and uniform port specifications enable seamless interconnection with mainstream sanitary fittings and valves for high-purity hygienic pipelines.
- Y-type 45° angled branch design provides gradual streamlined transition. Compared with right-angle tees, it creates lower flow resistance, reduces turbulence and pressure drop, protecting sediment-prone and high-activity media.
- Precision forming ensures uniform wall thickness and robust structure. It withstands continuous pipeline pressure and alternating flow impact without deformation or leakage over long service life.
- Large smooth arc transition at junction removes sharp corners and stagnant dead zones, minimizing material deposition. It facilitates CIP online cleaning and fulfills BPE hygiene requirements.
- Full mirror polished inner surface delivers continuous smooth flow path to reduce particle adhesion. Compatible with SIP in-place sterilization to maintain pipeline sterility.
- Flat standard weld ends support convenient on-site welding. Weld seams can be polished to form continuous smooth flow path without sanitary dead spots for reliable operation of complete hygienic systems.
Working Principle
Sanitary Y-type Weld Tee adopts three-port butt-weld fixed installation. It is integrated into hygienic process piping to form a permanent Y-shaped pipeline node with good structural integrity and reliable sealing, meeting BPE and GMP acceptance criteria. After medium enters the fitting, the 45° angled streamlined Y-cavity realizes smooth diversion or confluence. The gradual inclined flow path weakens fluid impact and avoids vortex, local stagnation and solid sediment commonly seen in right-angle tees, delivering gentler and more uniform flow distribution. Welded construction eliminates risks of joint loosening and leakage. The smooth inner cavity can be fully flushed by CIP cleaning fluid for dead-leg-free washing. It is suitable for delivery of sediment-prone media such as suspensions, slurries and active liquid medicines, ensuring stable operation of high-clean process pipelines.
Why Choose KINGMAN
45° Branch Layout Review
Branch angle, port sizes and weld-end dimensions can be checked against your process drawing, reducing rework when a sanitary lateral Y tee must align with fixed piping.
High-Purity Finish Options
Mechanical polishing to Ra ≤ 0.51 μm and electropolishing to Ra ≤ 0.38 μm are available for wetted surfaces used in hygienic and high-purity fluid handling.
Warranty and Technical Support
Export fittings are backed by a one-year international warranty and lifetime technical support, giving overseas buyers a continuing service channel after the project is delivered.
