Short Equal Tee (7WWW)

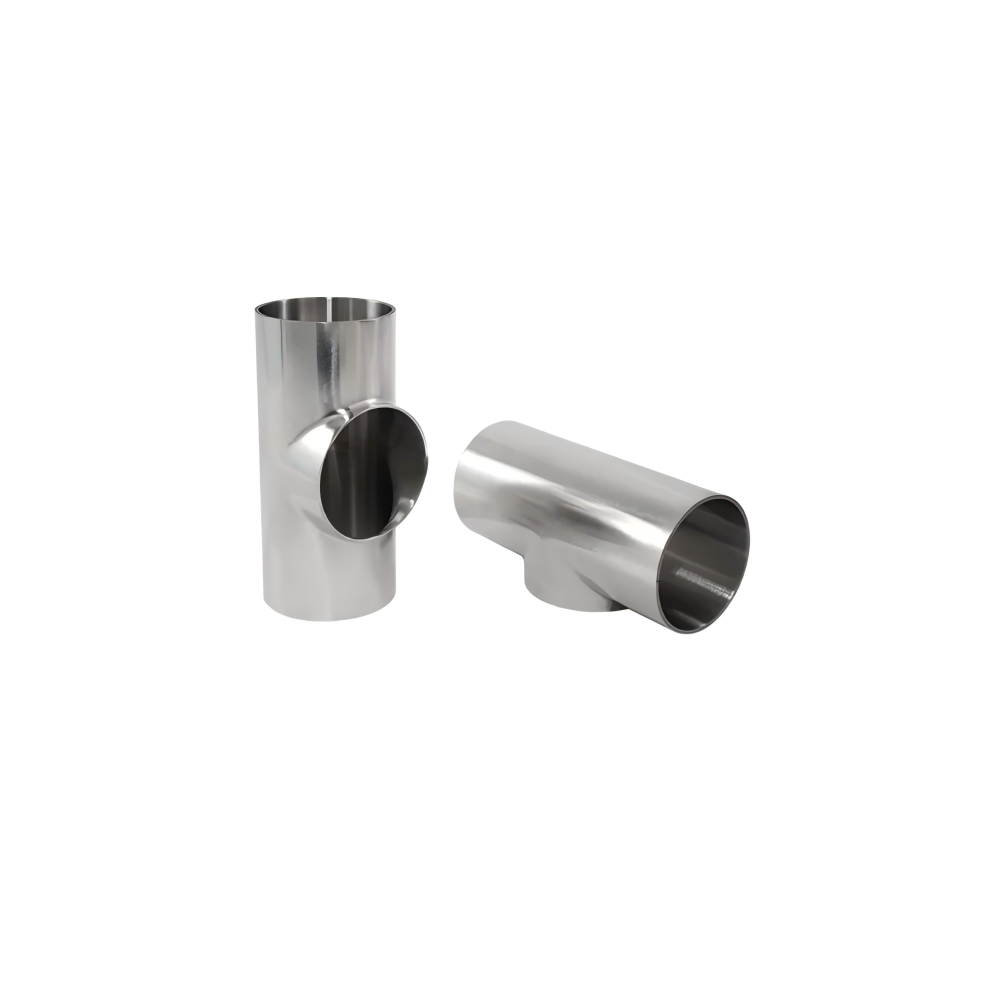

KINGMAN sanitary Short Equal Tee is precisely manufactured from SS304/SS316L stainless steel in full compliance with 3A, SMS and DIN hygienic standards. Featuring a compact short-body equal-diameter structure, it occupies minimal installation space and is specially designed for dense pipelines, narrow pipe corridors and on-site medium splitting & merging. The high-precision mirror-polished inner wall delivers a smooth, dead-leg-free flow path for stable fluid diversion and confluence. Standard weld ends perfectly match standardized hygienic piping systems, widely used for pipeline branching, splitting and confluence in food, beverage, pharmaceutical and bioengineering process systems.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Tee / Cross |
| Size Range | DN15–DN300 (approx. 1/2"–12") |
| Material | 304 / 316L stainless steel |
| Surface | Satin polish / Mirror / Vibrate / Pickled / Sand blast / EP |
| Products Range | Long/Short ,Equal Tee / Pull Tee / reducer Tee / Cross / U Tee… |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
DIN Standard
| Material Code | Size | L1 | L2 | D |
|---|---|---|---|---|
| FT01DINWWWS0411010 | DN10 | 7.5 | 26.0 | 12.0 |
| FT01DINWWWS0411015 | DN15 | 10.5 | 35.0 | 18.0 |
| FT01DINWWWS0411020 | DN20 | 12.5 | 40.0 | 22.0 |
| FT01DINWWWS0411025 | DN25 | 16.0 | 50.0 | 28.0 |
| FT01DINWWWS0411032 | DN32 | 19.5 | 55.0 | 34.0 |
| FT01DINWWWS0411040 | DN40 | 22.5 | 60.0 | 40.0 |
| FT01DINWWWS0411050 | DN50 | 30.0 | 70.0 | 52.0 |
| FT01DINWWWS0411060 | DN65 | 39.5 | 80.0 | 70.0 |
| FT01DINWWWS0411080 | DN80 | 47.5 | 90.0 | 85.0 |
| FT01DINWWWS0411100 | DN100 | 58.0 | 100.0 | 104.0 |
| FT01DINWWWS0411125 | DN125 | 70.5 | 187.0 | 129.0 |
| FT01DINWWWS0411150 | DN150 | 83.0 | 225.0 | 154.0 |
SMS Standard
| Material Code | Size | L1 | L2 | D |
|---|---|---|---|---|
| FT01SMSWWWS0411025 | 25 | 15.0 | 55.0 | 25.4 |
| FT01SMSWWWS0411038 | 38 | 21.5 | 70.0 | 38.1 |
| FT01SMSWWWS0411051 | 51 | 29.0 | 82.0 | 50.8 |
| FT01SMSWWWS0411063 | 63 | 36.0 | 105.0 | 63.5 |
| FT01SMSWWWS0411076 | 76 | 43.0 | 110.0 | 76.2 |
| FT01SMSWWWS0411102 | 102 | 57.0 | 150.0 | 101.6 |
3A Standard
| Material Code | Size | L1 | D |
|---|---|---|---|
| FT013AWWWS0411100 | 1" | 28.6 | 25.4 |
| FT013AWWWS0411150 | 1 1/2" | 42.0 | 38.1 |
| FT013AWWWS0411200 | 2" | 52.3 | 50.8 |
| FT013AWWWS0411250 | 2 1/2" | 59.5 | 63.5 |
| FT013AWWWS0411300 | 3" | 65.9 | 76.2 |
| FT013AWWWS0411400 | 4" | 87.3 | 101.6 |
ISO Standard
| Material Code | Size | L1 | D |
|---|---|---|---|
| FT01ISOWWWS0411100 | 1" | 33.5 | 25.4 |
| FT01ISOWWWS0411125 | 1 1/4" | 38.1 | 31.8 |
| FT01ISOWWWS0411150 | 1 1/2" | 48.5 | 38.1 |
| FT01ISOWWWS0411200 | 2" | 60.5 | 50.8 |
| FT01ISOWWWS0411250 | 2 1/2" | 83.5 | 63.5 |
| FT01ISOWWWS0411300 | 3" | 88.5 | 76.2 |
| FT01ISOWWWS0411350 | 3 1/2" | 103.5 | 88.9 |
| FT01ISOWWWS0411400 | 4" | 127.0 | 101.6 |
| FT01ISOWWWS0411450 | 4 1/2" | 152.4 | 114.3 |
| FT01ISOWWWS0411500 | 5" | 190.5 | 133.0 |
| FT01ISOWWWS0411600 | 6" | 228.6 | 159.0 |
Features
- 1. Manufactured strictly in accordance with 3A, SMS and DIN BPEinternational hygienic standards with high dimensional accuracy and universal compatibility, perfectly matching mainstream sanitary pipes, valves and fittings.
- 2. Compact short-body structure greatly reduces overall size and saves installation space, ideal for pipeline branching in dense piping layouts and narrow equipment areas.
- 3. Precision forming technology ensures uniform wall thickness and solid compact structure, providing excellent pressure resistance and stability without deformation or leakage under long-term alternating diversion working conditions.
- 4. Circular arc transition at the three-way junction minimizes fluid resistance, realizing stable and uniform medium splitting and confluence, reducing flow impact, turbulence and pressure loss effectively.
- 5. Internal and external mirror polishing creates a clean and smooth flow path without dead zones, reducing material adhesion and residue to maintain long-term pipeline hygiene.
- 6. Flat and standard weld ends enable convenient and neat on-site welding. Weld seams can be finely polished to ensure continuous and smooth flow path without sanitary dead spots for the entire pipeline system.
Working Principle
Sanitary Short Type Weld Tee adopts three-port butt-weld fixed installation for permanent pipeline branching connection. It is firmly integrated into hygienic main pipelines with stable sealing performance, perfectly suitable for fixed laying in narrow and dense piping areas. During operation, the smooth arc junction structure realizes stable medium diversion (one inlet, two outlets) and confluence (two inlets, one outlet) according to process requirements. The short-body gentle transition weakens fluid impact and turbulence, ensuring uniform flow distribution and stable medium switching between main and branch pipelines. The rigid welded structure eliminates loosening and leakage risks, supporting long-term continuous and efficient operation of hygienic pipeline splitting and confluence processes.
Why Choose KINGMAN
Branch Geometry Review
Run size, branch size and weld-end dimensions can be checked against your process drawing, helping a short equal tee integrate more cleanly into hygienic equipment and fixed piping.
Flexible MOQ
Samples and small trial quantities are supported, giving project teams a practical way to confirm tee dimensions and welding fit before releasing larger sanitary fitting orders.
Integrated Quality Checks
Material analysis, dimensional inspection and 100% final checks are managed within KINGMAN’s manufacturing process, reducing supplier handoffs before sanitary tees are exported.
