Tri Clamp Pneumatic Aseptic Sampling Valve

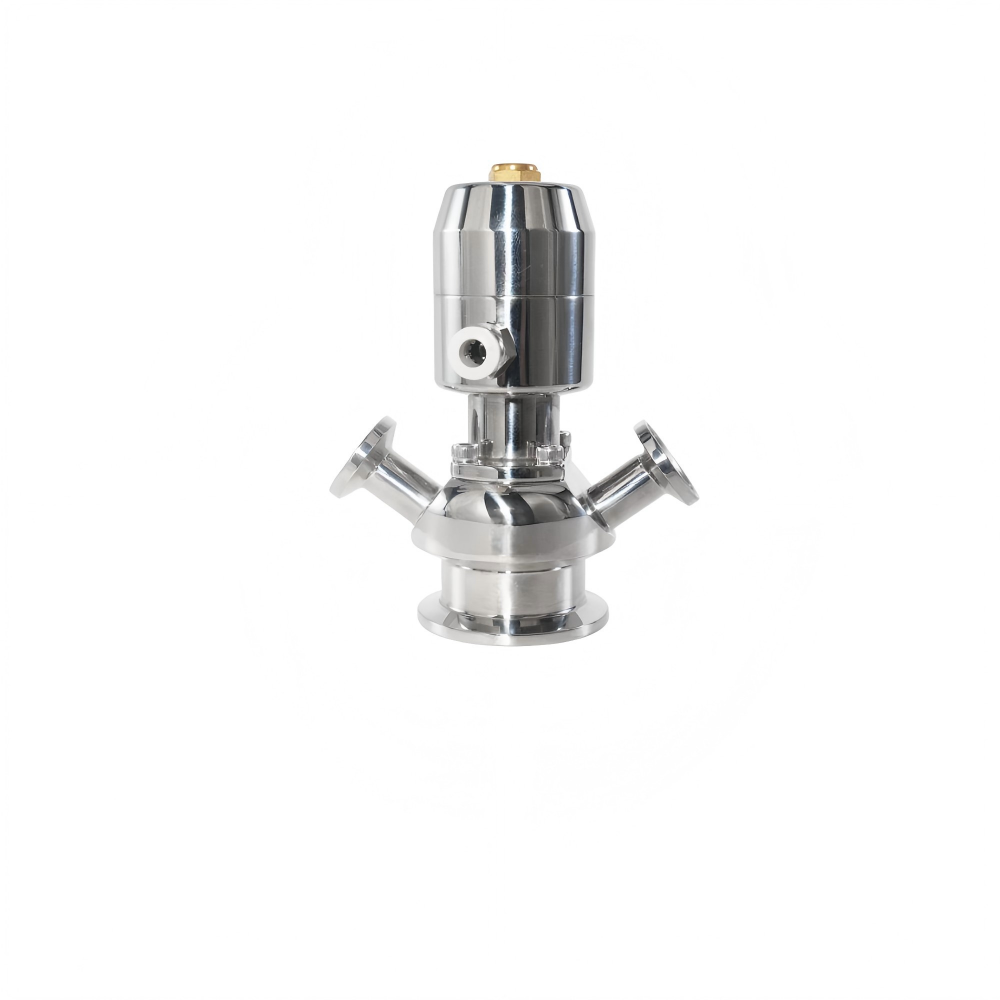

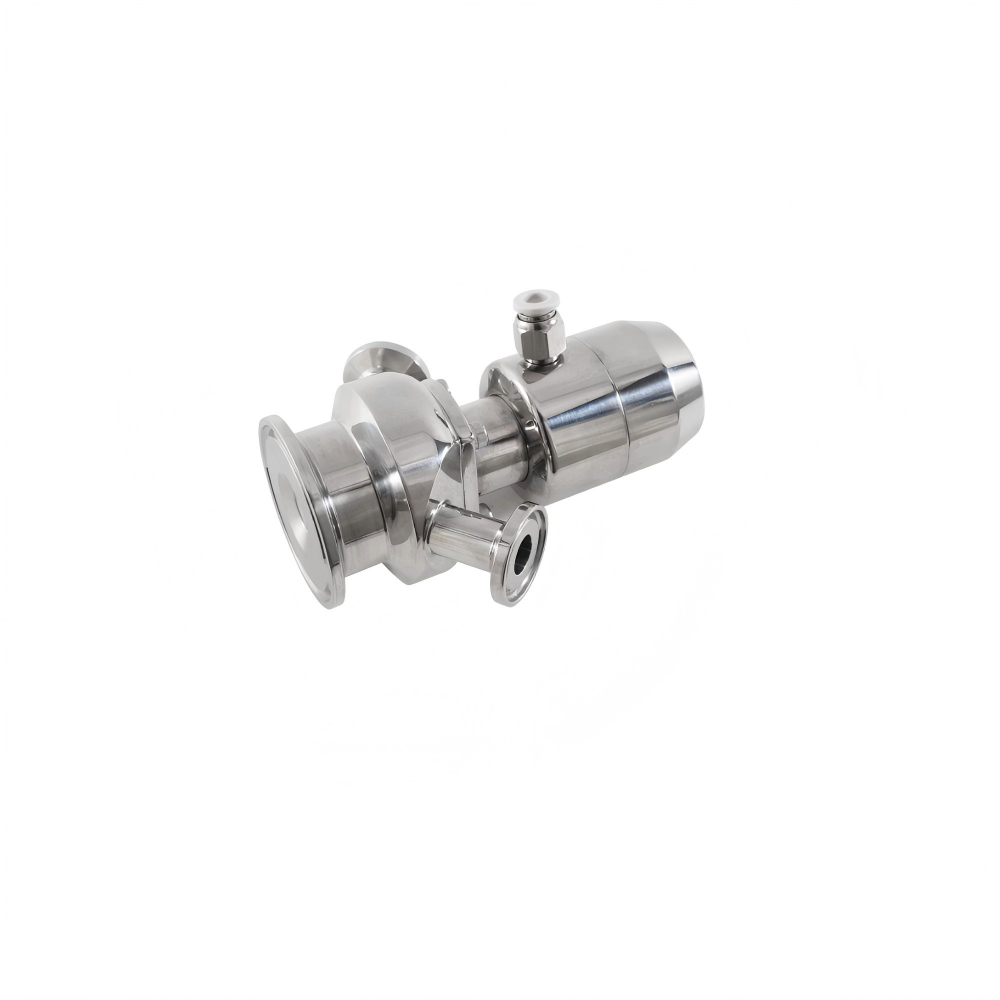

KINGMAN sanitary Tri Clamp Pneumatic Aseptic Sampling Valve, SS304/SS316L, tri-clamp connection, pipeline side-mounted. It is fitted with a top pneumatic actuator and dual sterilization ports. The valve opens and closes automatically via compressed air and can be integrated with a central control system for remote operation. It adopts dead-leg-free polished flow path that fully supports CIP and SIP. Ideal for remote automatic aseptic sampling on pharmaceutical and bioreactor production lines, it minimizes human intervention and reduces risks of microbial contamination during sampling.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Sampling Valve |
| Size Range | DN15–DN50 (approx. 1/2"–2") |
| Body & Disc Material | 316L stainless steel |
| Seal Material | PTFE |
| Working Temperature | 150 °C |
| Max. Working Pressure | 0~10bar |
| Connection Standard | 3A / SMS / DIN / ISO |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Sampling port & Connection type | Tri-Clamp / Weld / Hose barb |
| Sampling Type | Horizontal type / 45° angle type / 35° angle type |
| Surface | Inner surface: Ra ≤0.375μm (SF4) , Outer surface:Ra ≤0.8μm |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
Features
- 1. Exclusive dual sterilization port layout supports independent bidirectional steam purging for the front and rear of the sampling cavity, achieving more thorough sterilization than single-port valves and eliminating tiny residual dead zones.
- 2. Fully automatic pneumatic drive requires no on-site manual operation, connectable to DCS central control systems for one-click remote sampling and timed sampling, suitable for unmanned intelligent production lines.
- 3. High-cleanliness mirror-polished dead-leg-free flow path withstands repeated 130℃ high-temperature steam sterilization, perfectly matching continuous automatic aseptic production requirements.
- 4. Built-in automatic spring reset structure seals instantly when air supply cuts off, preventing medium leakage and ensuring long-term stable operation of automatic production lines.
- 5. Compatible with optional valve position feedback devices for real-time remote status monitoring and traceable sampling data, meeting compliant production standards of the pharmaceutical industry.
- 6. Standard sanitary tri-clamp quick-install structure enables easy disassembly and maintenance with independently replaceable seals, greatly reducing downtime maintenance costs of automatic production lines.
Working Principle
Tri Clamp Pneumatic Aseptic Sampling Valve receives air pressure signals from the central control system via the top pneumatic actuator to drive stem movement and control diaphragm plug opening and closing for automatic aseptic sampling. When ventilated, the actuator lifts the plug to allow sterile pipeline medium to enter the sampling cavity for automatic sampling. When air supply stops, the built-in spring resets instantly to compress the seat for zero-leakage sealing. Equipped with dual independent sterilization ports, the valve supports full-range steam purging before and after sampling. The fully automatic operation without manual intervention effectively avoids human-induced contamination risks for fully automatic aseptic process pipelines.
