Microbial Aseptic Sterile Welding Sampling Valve

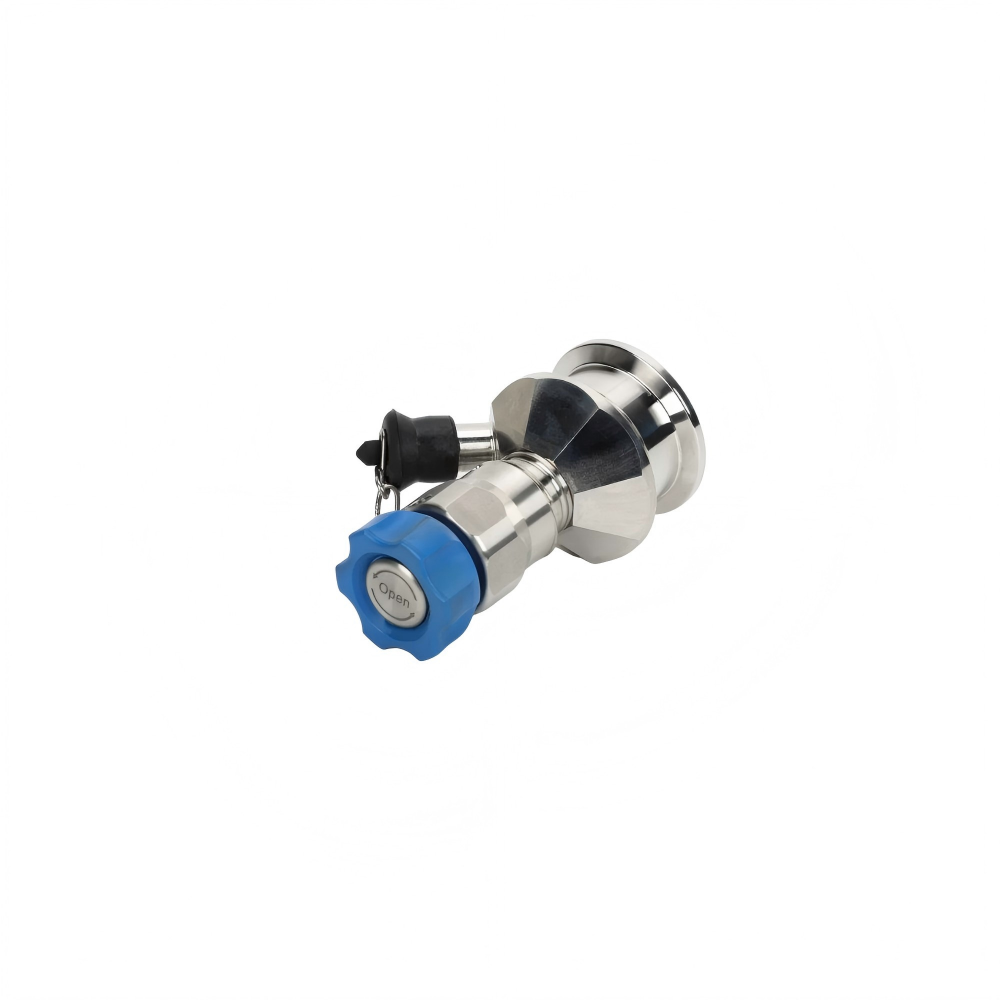

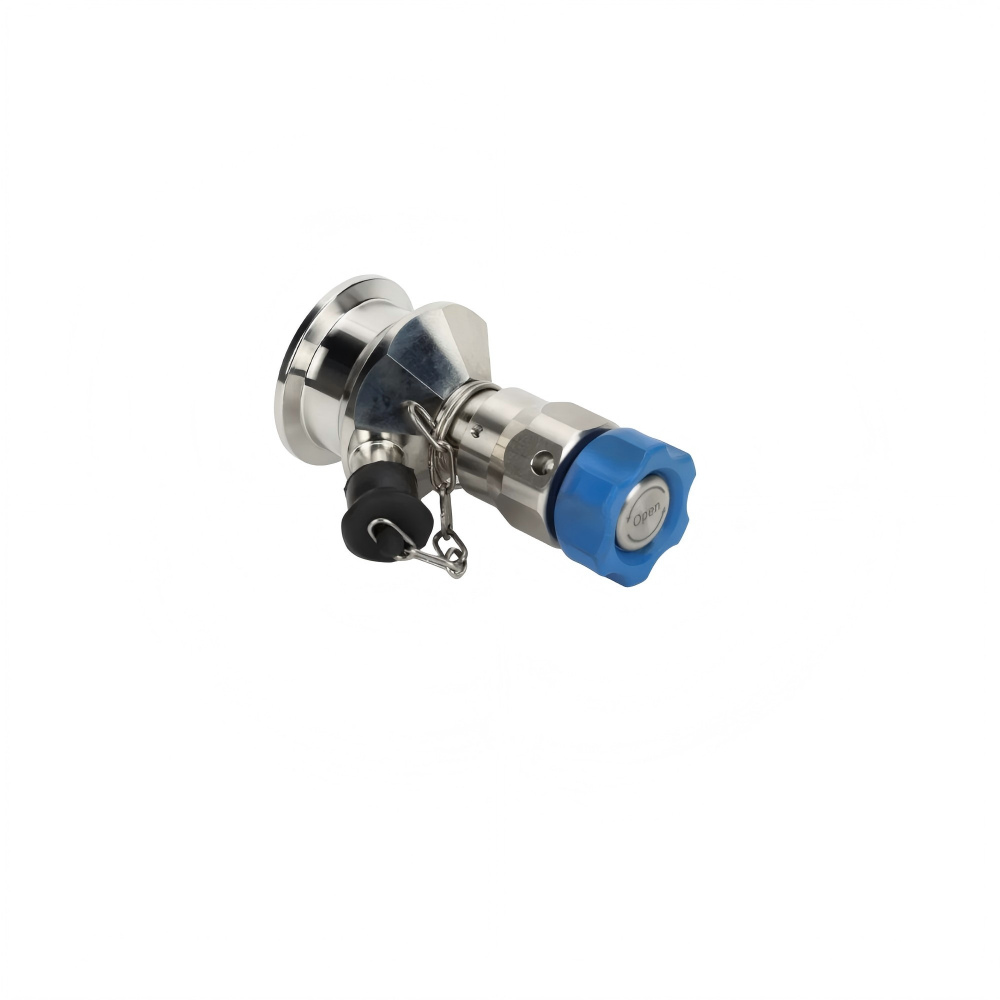

KINGMAN Microbial Aseptic Sterile Welding Sampling Valve with safety lock, SS304/SS316L, tri-clamp connection, pipeline side-mounted. It comes with a blue anti-slip handwheel and dedicated key lock mechanism to effectively prevent accidental opening and unintended sampling. The polished dead-leg-free cavity fully supports CIP cleaning and SIP in-situ sterilization. Developed for high-safety aseptic inline sampling in pharmaceutical & biotech pipelines, it restricts access to authorized operators only, avoiding unauthorized operation and cross-contamination of sterile products.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Sampling Valve |
| Size Range | DN15–DN50 (approx. 1/2"–2") |
| Body & Disc Material | 316L stainless steel |
| Seal Material | PTFE |
| Working Temperature | 150 °C |
| Max. Working Pressure | 0~10bar |
| Connection Standard | 3A / SMS / DIN / ISO |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Sampling port & Connection type | Tri-Clamp / Weld / Hose barb |
| Sampling Type | Horizontal type / 45° angle type / 35° angle type |
| Surface | Inner surface: Ra ≤0.375μm (SF4) , Outer surface:Ra ≤0.8μm |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

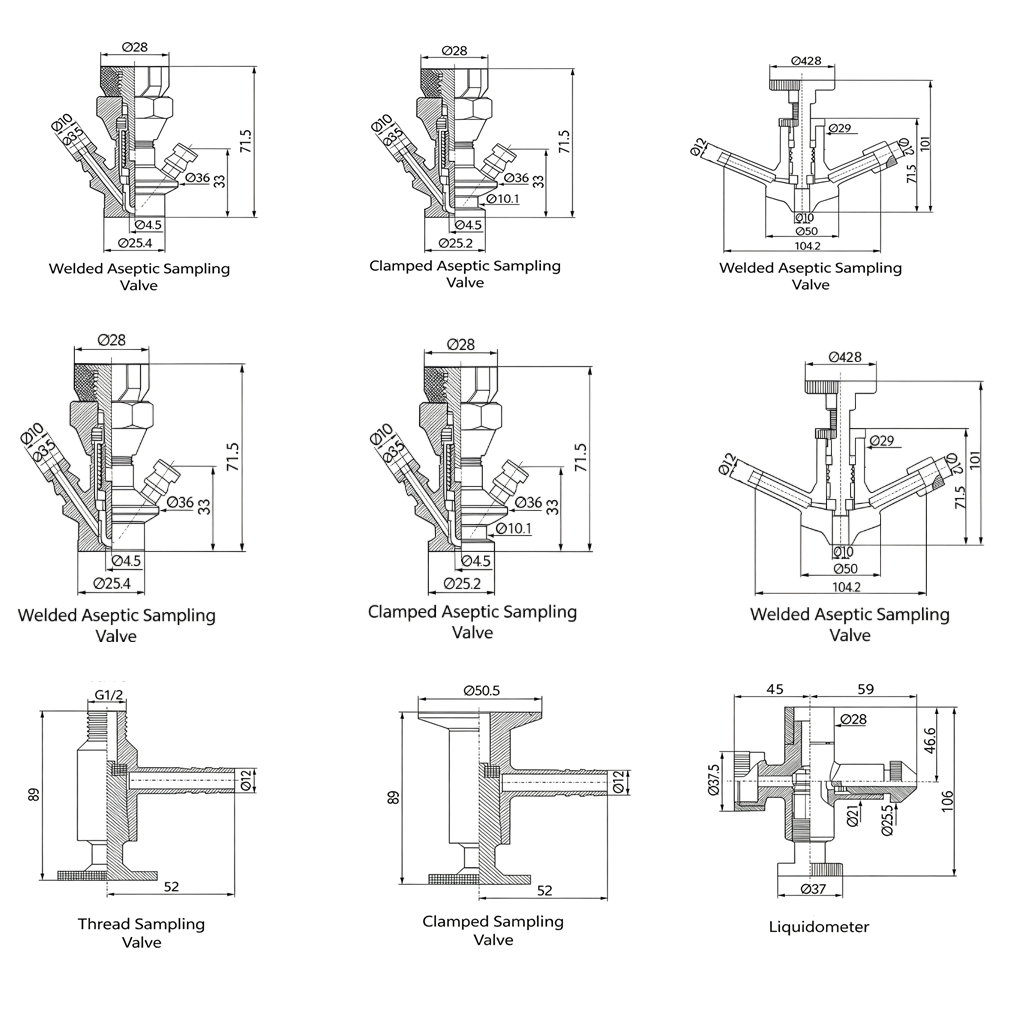

Dimensions
Features
- 1. Exclusive key safety lock system completely locks the handwheel after locking, preventing accidental opening and wrong sampling to avoid batch material scrapping caused by human error.
- 2. Exclusive blue anti-slip handwheel with high workshop recognition, easily distinguishing aseptic sampling valves from ordinary valves for standardized on-site management.
- 3. High-precision mirror-polished valve cavity with dead-leg-free smooth flow path fully adapts to in-situ steam sterilization and meets strict GMP aseptic production standards.
- 4. Food-grade dedicated sealing assembly resists high-temperature steam and repeated cleaning with tight fitting performance, ensuring zero medium retention and zero bacterial growth during long-term operation.
- 5. Standard tri-clamp quick-install structure requires no professional tools for disassembly, facilitating offline deep cleaning and independent seal replacement with efficient maintenance.
- 6. Safely controllable aseptic sampling structure with independently sterilizable sampling cavity, only operable by authorized personnel, perfectly suitable for highly regulated aseptic pharmaceutical production lines.

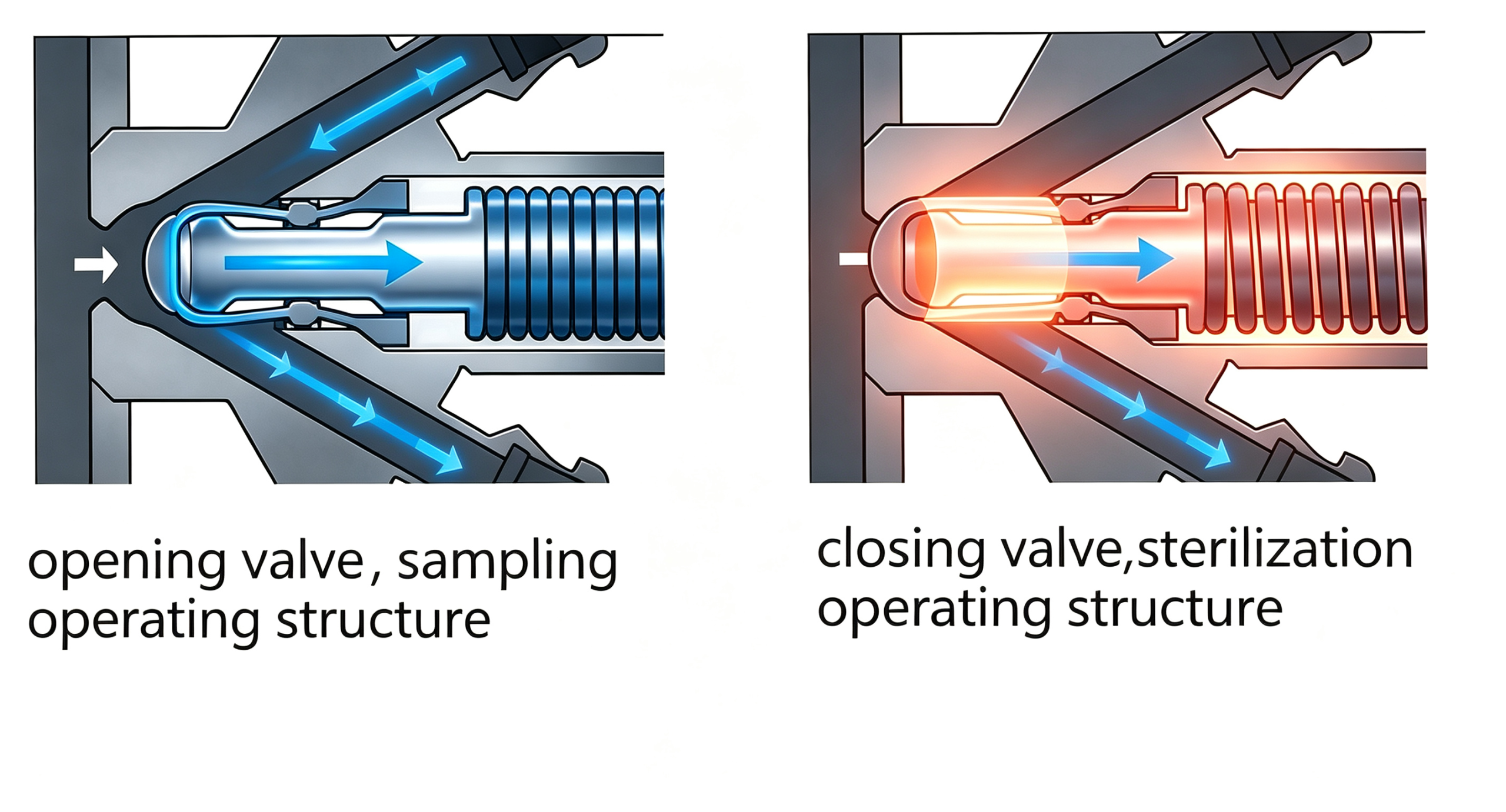

Working Principle
Sanitary Manual Aseptic Sampling Valve with Safety Lock adopts a dual control structure of key unlocking and handwheel driving to realize safe and controllable aseptic sampling. The valve is locked in normal state with unrotatable handwheel to prevent misoperation. For sampling, unlock the safety lock with a dedicated key and rotate the blue handwheel to lift the stem and plug, allowing sterile pipeline medium to flow out for sampling. After sampling, reset and seal the valve and lock it again. The cavity supports steam sterilization to ensure safe, aseptic and traceable sampling for highly standardized aseptic production scenarios.
Why Choose KINGMAN
Sterile-Line Drawing Review
Weld-end dimensions, installation orientation and sampling-point geometry can be checked against your process drawing, reducing rework when sterile welding sampling valves are integrated into fixed hygienic lines.
One-Year Export Warranty
KINGMAN provides a one-year international warranty with lifetime technical support, including remote troubleshooting and installation guidance for overseas pharmaceutical and hygienic-process users.
Standards-Matched Supply
Sanitary components can be produced around 3A, DIN, SMS, ISO and BPE requirements, giving project teams broader compatibility when sterile sampling points must follow established plant standards.
