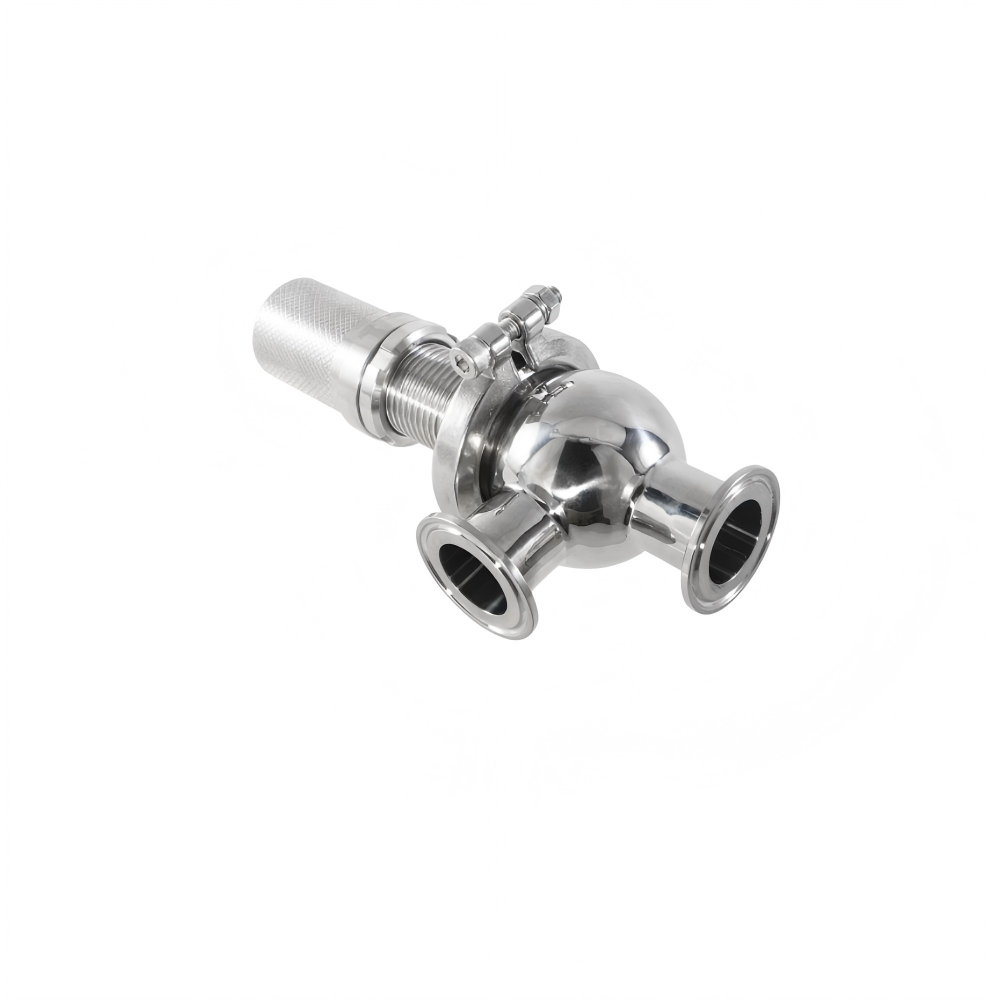

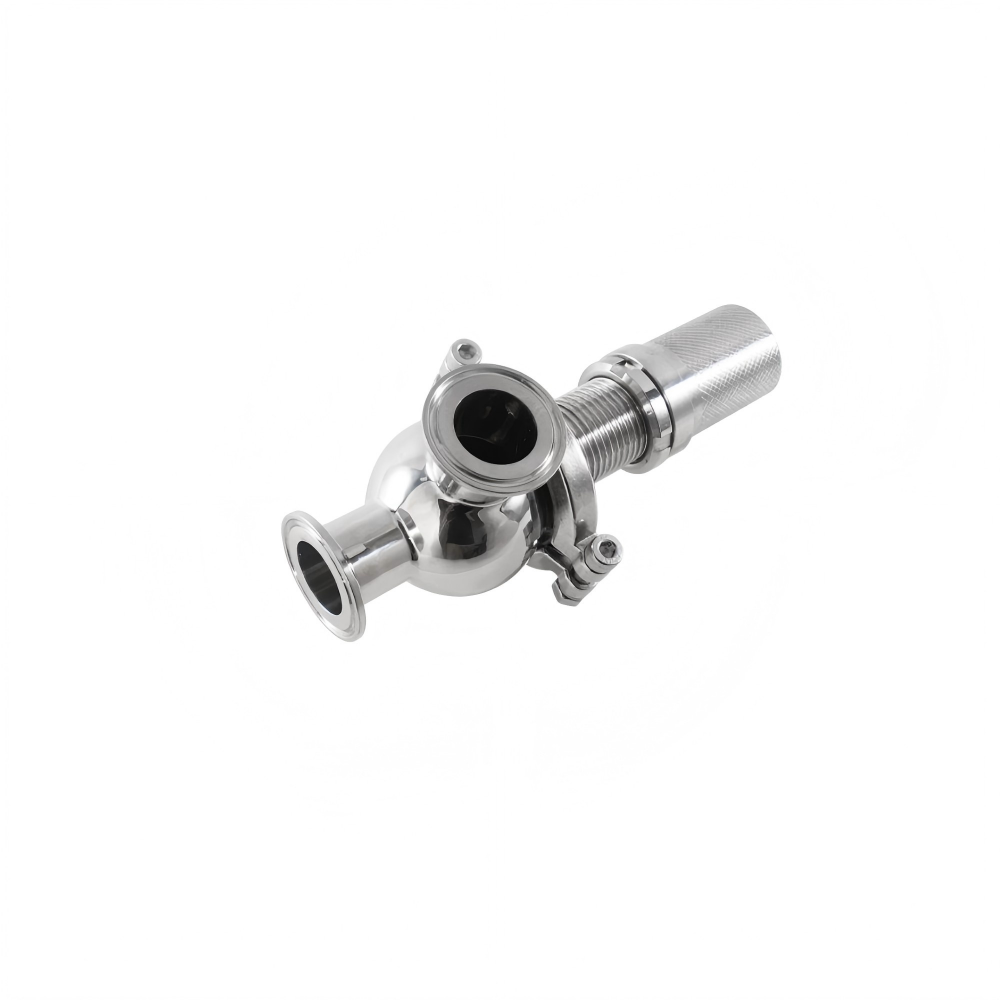

Sanitary Adjustable Safety Relief Valve
KINGMAN Sanitary Adjustable Safety Relief Valve is a hygienic pressure protection fitting for sanitary pipelines and process tanks in food, beverage, dairy, biopharmaceutical and fine chemical industries. It features adjustable spring pressure setting and tri-clamp connection for fast installation and disassembly. When the system pressure exceeds the preset threshold, the valve automatically opens to release excess pressure, safeguarding pipes and equipment from overpressure damage. It meets strict hygienic requirements and supports regular CIP cleaning.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Shut-off & Divert Valve |
| Connection Type | Tri-Clamp / Weld / Threaded |
| Material | 304/316L |
| Seat Seal | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Clamp Sizes | DN15–DN100 (approx. 1/2"–4") |
| Body type | 20, 21, 30, 31, 22, 32 |
| Working Temperature | -10°C to +120°C (EPDM per FDA) |
| Working Pressure: | 0~10bar |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Operation Type | Manual handle / Pneumatic actuator /Positioner |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Adjustable pressure range via top knurled handwheel, users can set relief pressure on site according to working conditions.
- Polished stainless steel body, smooth internal cavity without dead corners, reducing medium residue and bacterial growth risk.
- Tri-clamp connection design, easy disassembly for inspection, maintenance and cleaning.
- Precision spring and sealing assembly, stable response and reliable sealing under rated working pressure.
- Sanitary sealing material compatible with hot water, steam and common cleaning agents, withstand repeated CIP cycles.
- Compact spherical valve body structure, small flow resistance, easy inline installation on sanitary pipelines.
Working Principle
Sanitary Adjustable Safety Relief Valve: The working pressure threshold is precisely set by adjusting the top regulating handwheel, which changes the compression degree and preload force of the internal precision spring. When the fluid medium pressure acting on the valve disc is lower than the preset spring preload, the spring tightly presses the disc against the valve seat, keeping the valve fully closed and maintaining complete hygienic sealing of the tank and pipeline system without leakage or pressure loss. Once the system operation fluctuates and the medium pressure rises to exceed the preset spring load, the upward fluid pressure overcomes the spring resistance and lifts the valve disc upward. The valve automatically opens the flow passage to discharge excess pressure and redundant medium, effectively releasing overpressure and stabilizing the system working pressure within a safe range. When the internal medium pressure drops back below the calibrated set value, the spring rebounds instantly and pushes the valve disc back to fit closely with the valve seat, realizing automatic reset and tight shutoff. The tri-clamp ports perfectly match standard pipeline ferrules and sanitary gaskets to form stable, sterile, leak-free sealed joints, allowing quick disassembly for routine inspection, calibration, maintenance and full CIP cleaning.
Why Choose KINGMAN
Pressure Setting Verification
Adjustable sanitary safety relief valves can be checked against the required operating pressure and application conditions, giving equipment teams a clearer basis for selecting the configured setpoint range.
Sanitary Standards Coverage
KINGMAN supports 3A, DIN, SMS, ISO and BPE requirements, with CE, EAC and FDA certification requirements considered for sanitary valve projects serving different markets.
Factory-Managed Inspection
Material analysis, pressure testing and surface inspection are controlled through KINGMAN’s quality process, providing documented checkpoints before relief valves are released for shipment.
