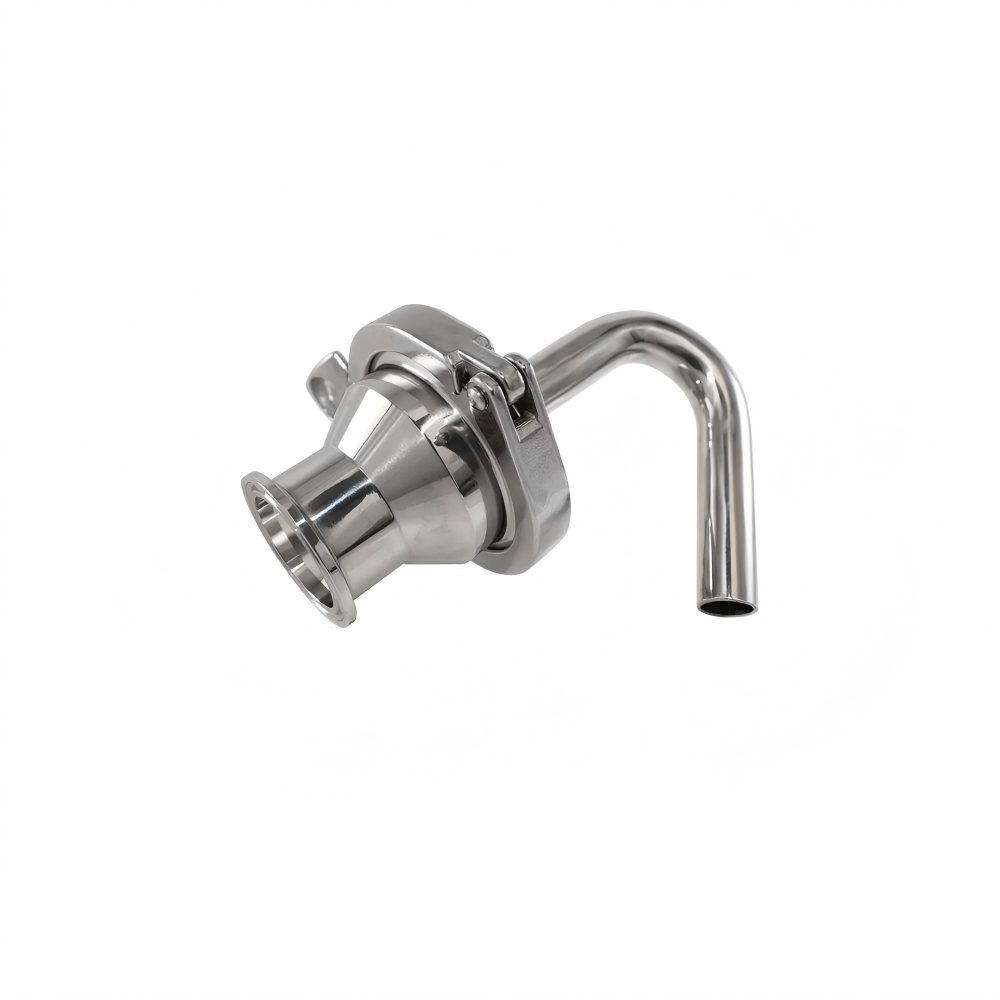

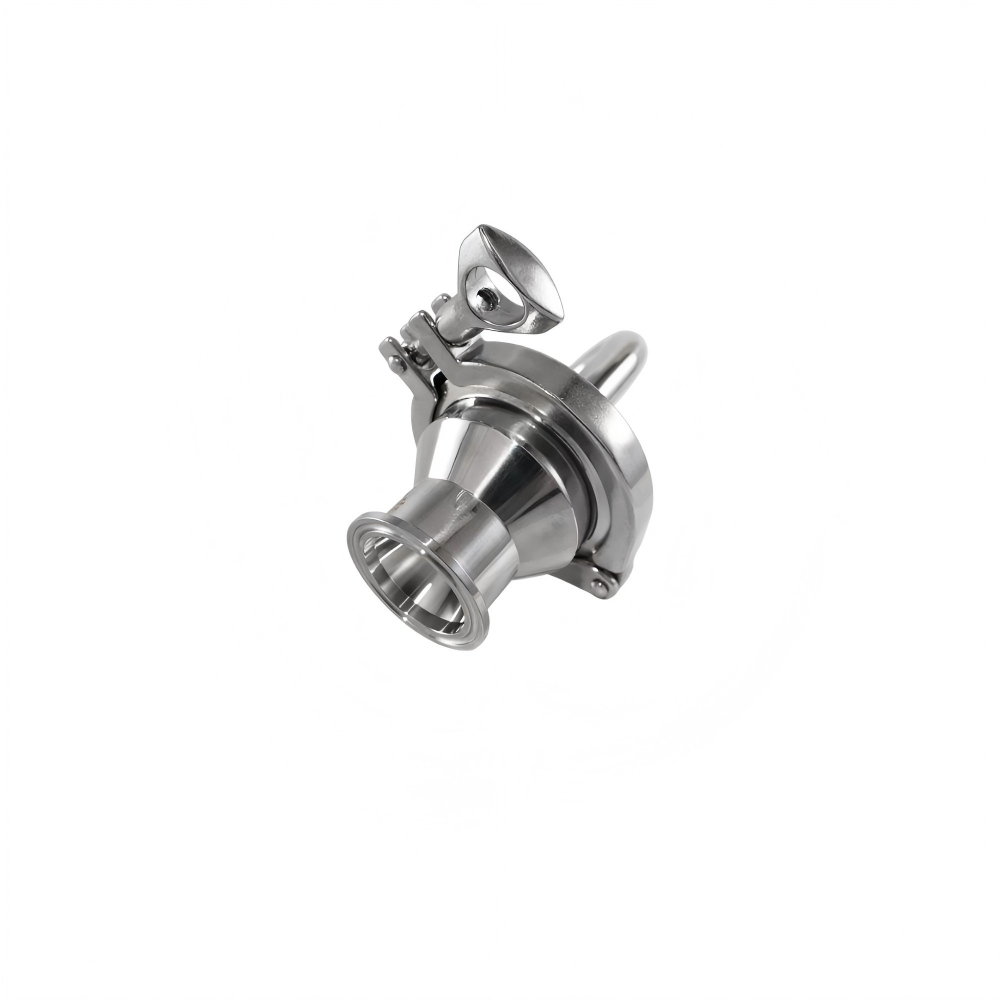

3A Automatic Sanitary Air Relief Valve for Pressure Control
KINGMAN 3A Automatic Sanitary Air Relief Valve for Pressure Control is a 3A certified hygienic pressure control component for process tanks and sanitary piping systems in food, beverage, dairy and biopharmaceutical industries. It adopts tri-clamp connection for quick assembly and disassembly. It automatically vents accumulated air and excess pressure inside tanks or pipelines, stabilizes system pressure and protects equipment. It complies with 3A sanitary standards and supports CIP online cleaning.
Specifications
| Parameter | Value |
|---|---|
| Product Name | 3A Automatic Sanitary Air Relief Valve for Pressure Control |
| Material | AISI 304 or 316L |
| Ball | PP, PTFE |
| Sizes | 1″-2″, DN25-DN50 |
| Adjusting Range | 0.2-2.2Bar,1.1-3.2Bar |
| Seal | EPDM, Silicon, Viton |
| Working Pressure | 10bar |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- With 3A sanitary certification, the valve fully meets the strict hygienic requirements of food, beverage and pharmaceutical production, complying with international sanitary design specifications for fluid processing.
- Adopts highly polished stainless steel body. The smooth internal cavity is designed without dead corners or stagnant zones, which effectively avoids medium residue and reduces risks of bacterial growth and cross-contamination.
- Features standard tri-clamp connection design. It can be quickly disassembled without cutting pipelines for internal visual inspection, component maintenance and thorough CIP online cleaning.
- Built-in automatic pressure sensing structure. It will automatically open to discharge trapped air and overpressure once the system pressure exceeds the preset threshold, and automatically close to stop venting when pressure falls back to the normal working range.
- Equipped with specially curved discharge spout, which can effectively prevent liquid backflow and reduce splashing contamination during pressure relief and exhaust.
- Adopts food-grade sealing materials. It shows good compatibility with hot water, saturated steam and common sanitary cleaning agents, and can withstand repeated CIP/SIP cycles.
- Compact overall structure, lightweight and space-saving. It supports simple installation on tank top or sanitary process pipelines.
Working Principle
3A Automatic Sanitary Air Relief Valve for Pressure Control: When gas accumulates continuously or internal pressure rises above the preset threshold inside the tank or sanitary pipeline, the upward medium pressure overcomes the spring preload and lifts the internal sealing assembly away from the precision-machined valve seat. The valve opens automatically to discharge trapped air, non-condensable gas and excess overpressure, so as to protect the tank and piping system from overpressure damage. Once the internal pressure drops back to the normal preset operating range, the spring force pushes the sealing assembly downward to reset and press tightly against the valve seat, forming a reliable hygienic seal to stop venting immediately. The tri-clamp port forms a hygienic sealed joint matched with pipeline ferrules and gaskets. It enables quick disassembly for internal inspection, component replacement and thorough CIP cleaning, and meets 3A sanitary requirements for food, beverage and biopharmaceutical production.
