Level Gauge with Sampling Valve

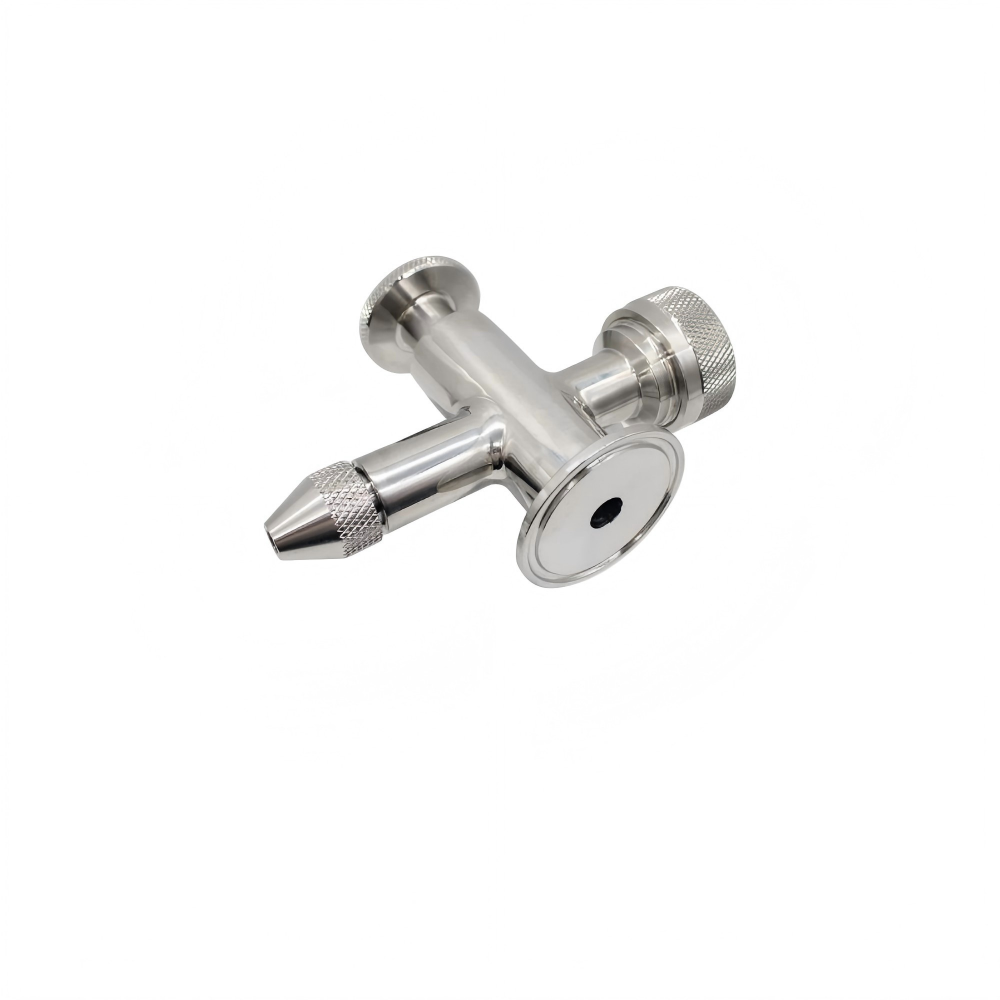

KINGMAN Level Gauge with Sampling Valve adopts high-quality SS304/SS316L stainless steel construction for reliable side-mounted installation on sanitary process pipelines. Equipped with multiple removable sampling nozzles, this unit integrates independent ports for sampling, steam sterilization and drainage, enabling complete cavity SIP sterilization and one-step hygienic sampling procedures. Designed with a knurled anti-slip knob, it ensures stable, precise and slip-free manual operation during frequent sampling cycles. Effectively eliminating medium residue and batch-to-batch cross-contamination, it is ideally suited for hygienic and aseptic sampling applications on pharmaceutical, biotech and bioreactor process pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Name | Sanitary Sampling Valve |
| Size Range | DN15–DN50 (approx. 1/2"–2") |
| Body & Disc Material | 316L stainless steel |
| Seal Material | PTFE |
| Working Temperature | 150 °C |
| Max. Working Pressure | 0~10bar |
| Connection Standard | 3A / SMS / DIN / ISO |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange |
| Sampling port & Connection type | Tri-Clamp / Weld / Hose barb |
| Sampling Type | Horizontal type / 45° angle type / 35° angle type |
| Surface | Inner surface: Ra ≤0.375μm (SF4) , Outer surface:Ra ≤0.8μm |
| Operation Type | Manual handle / Pneumatic actuator |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Dimensions
Features
- Original integrated 4-way cross structure integrates sampling, steam sterilization and drainage functions in one unit without extra accessories, completing full sampling and cavity sterilization procedures with a single valve.
- 2. Adopts detachable independent sampling nozzles that can be replaced separately after wear or contamination without disassembling the entire valve body, improving maintenance efficiency and reducing replacement costs.
- 3. Independent multi-channel layout ensures no interference between sampling and sterilization passages, enabling thorough dual-direction steam purging before and after sampling for higher aseptic standards.
- 4. Knurled anti-slip manual knob provides strong grip friction, preventing slipping in humid and clean workshop environments with accurate and stable sampling flow control.
- 5. Full mirror-polished dead-leg-free flow path with PTFE sanitary seal resists high-temperature steam and acid-base cleaners, supporting repeated CIP cleaning and SIP in-situ sterilization.
- 6. Modular split structure with independently controllable functional ports adapts to various aseptic production conditions, solving the incomplete sterilization residue problem of traditional single-port sampling valves.
Working Principle
Sanitary Level Gauge with Sampling Valve uses the top knurled knob to drive axial plug movement and switch the on-off state between the main pipeline and sampling passage. When closed, the plug fits tightly with the sealing seat to block process medium completely without leakage. When opened, clean medium from the main pipeline enters the cross cavity and flows out through the dedicated sampling nozzle for sampling. Equipped with independent steam and drain ports, the valve supports comprehensive high-temperature steam purging before and after sampling to eliminate residual medium and form a closed-loop aseptic sampling process.
Why Choose KINGMAN
Assembly Support
Sanitary valves, fittings, strainers, sight glasses and piping components can be combined into customized assemblies, reducing separate component matching and giving your team a more installation-ready solution from one manufacturer.
100% Final Check
Every finished product passes a final inspection stage before shipment, ensuring specified quality checkpoints are completed regardless of whether your order contains standard products or customized components.
Flexible MOQ
Samples and smaller trial quantities are supported before larger purchasing commitments, making it easier to evaluate a new specification, supplier relationship or product opportunity before building additional inventory.
