Vacuum Blank Flange KF

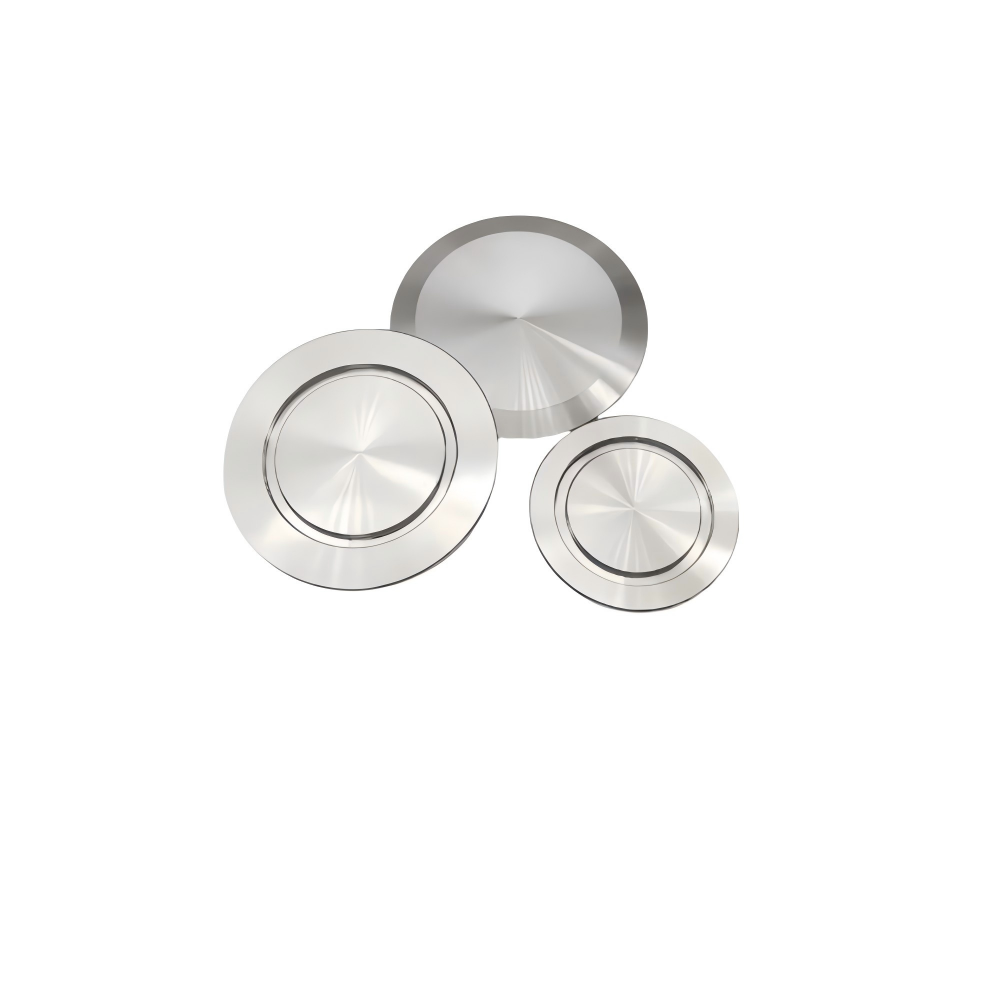

KINGMAN vacuum blank flange is a standard vacuum component for sealing vacuum pipeline ports. It is widely used in vacuum systems of semiconductor, coating, laboratory equipment, new energy and analytical instruments. It blocks pipeline openings to maintain vacuum tightness, for system isolation, testing and temporary closure. Our blank flanges are precision CNC machined from stainless steel, with flat sealing surface to ensure low leakage performance.
Specifications
| Parameter | Value |
|---|---|
| Product Name | KF Vacuum Fittings And Flanges |
| Product Type | Flanges,Nipples,Elbows,Tees,Crosses,Clamps and Seals |
| Material | AISI 304 or 316L |
| Sizes | NW10–NW50 (approx. 1/2"–2") Suface Finish Machining finish. Other finishes are also available |
| Seal | FKM (Viton),EPDM, Buna-N (NBR) Vacuum Range ≥10-8 Torr |
Dimensions
Vacuum Blank Flange
| Material Code | Flange size | A | B |
|---|---|---|---|
| KFBL0012010 | KF10 | 30.0 | 12.3 |
| KFBL0012016 | KF16 | 30.0 | 17.3 |
| KFBL0012025 | KF25 | 39.9 | 26.2 |
| KFBL0012040 | KF40 | 54.9 | 41.2 |
| KFBL0012050 | KF50 | 74.9 | 52.3 |
Features
- Ultra-low leak rate: Precisely turned flat sealing surface. Combined with KF clamp and gasket for reliable sealing, suitable for high vacuum working conditions.
- Quick KF standard connection: Compliant with KF vacuum standard. Fast locking with clamp, easy assembly and disassembly, no welding required.
- Premium stainless steel material: 304 / 316L stainless steel optional, anti-corrosion, resistant to high & low temperature, compatible with most gas environments.
- Mirror smooth end face: CNC precision turned, smooth surface without pores or scratches, reduces gas adsorption and easy to clean.
- Complete specifications: Full size range including KF10/KF16/KF25/KF40/KF50, aluminum version is also available.
- Robust & durable structure: One-piece machining, good rigidity, not easy to deform under pressure, long-term stable operation in vacuum system.
Working Principle
The vacuum blank flange achieves sealing by clamping the blank flange, flange and gasket together with a clamp. The flat end face of blank flange compresses the rubber gasket to fully seal the pipeline port. When the system is pumped to form negative pressure, the pressure difference between inside and outside further compresses the sealing interface, blocking outside air from entering the vacuum chamber and maintaining vacuum level. The blank flange physically closes the pipeline for equipment maintenance, segmented pumping or reserved spare ports.
Why Choose KINGMAN
100% Final Inspection
Every finished vacuum blank flange is checked before shipment, adding a final quality gate before it enters your vacuum system.
30+ Years of Stainless Steel Experience
More than 30 years of stainless steel manufacturing gives buyers an experienced source for repeat KF vacuum component purchasing.
One-Year International Warranty
Export orders include a 1-year warranty plus lifetime technical support for qualifying replacement, spare-part and troubleshooting needs.
