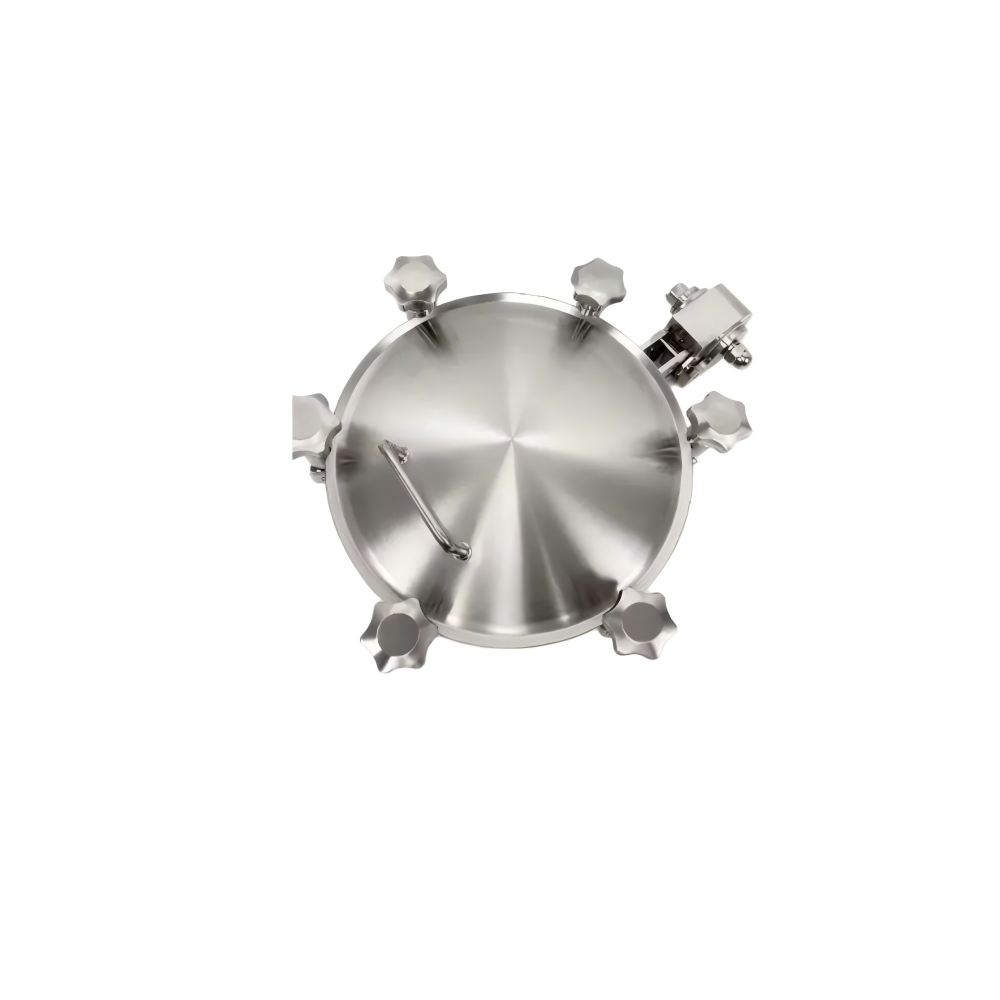

Pressure Round Manhole Cover (Manway)
KINGMAN Pressure Round Manhole Cover is a circular pressure-rated hygienic manway for pressurized process tanks. Made of high-quality stainless steel with mirror polishing, it adopts multi-handwheel bolt clamping structure to sustain internal tank pressure. The circular design distributes pressure evenly across the flange for superior mechanical strength. It serves as the main access port for tank inspection, maintenance and material access. It is commonly installed on pressure vessels in biopharma, food and fine chemical production.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Sanitary Pressure Round Manhole Cover (Manway) |
| Size Range | 200mm–800mm |
| Material | 304 / 316L stainless steel |
| Seal Material | EPDM / FKM (Viton) / Silicon / NBR |
| Surface | Inner surface: Ra ≤0.5μm , Outer surface:Ra ≤0.8μm Pressure rating 0 ~ 6 bar available Shape type Round, Square and Elliptical available |
| OEM | any special OEM services |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |

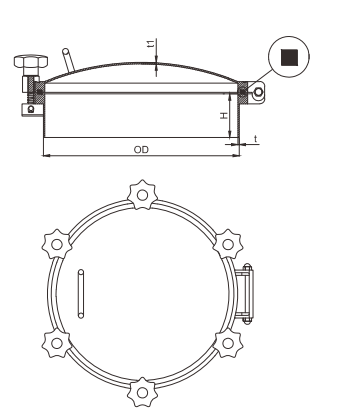

Dimensions
| Size | OD | H | t | t1 | Number of handwheels | Pres (Bar) |
|---|---|---|---|---|---|---|
| 150 | 156 | 100 | 3 | 2.5 | 4 | 1-3 |
| 200 | 206 | 100 | 3 | 2.5 | 4 | 1-3 |
| 250 | 256 | 100 | 3 | 2.5 | 4 | 1-3 |
| 300 | 306 | 100 | 3 | 2.5 | 4 | 1-3 |
| 350 | 356 | 100 | 3 | 2.5 | 5 | 1-3 |
| 400 | 406 | 100 | 3 | 2.5 | 6 | 1-3 |
| 430 | 436 | 100 | 3 | 3 | 6 | 1-3 |
| 450 | 456 | 100 | 3 | 3 | 6 | 1-3 |
| 500 | 506 | 100 | 3 | 3 | 6 | 1-3 |
| 600 | 606 | 100 | 3 | 3 | 8 | 1-3 |
Features
- 1. Standard circular pressure-bearing structure realizes 360° uniform stress distribution without stress concentration, providing superior pressure resistance and structural stability.
- 2. Surround multi-handwheel compression design ensures even circumferential force and consistent gasket compression, avoiding partial pressure relief and micro-leakage under high-pressure conditions.
- 3. Precisely mirror-polished contact surface and smooth inner wall eliminate gaps and material accumulation, perfectly suitable for high-purity medium production.
- 4. Thickened integrated stainless steel structure features high mechanical strength, excellent corrosion resistance and temperature stability, adapting to long-term high-pressure, steam and fluid flushing working conditions.
- 5. Compatible with CIP online cleaning and SIP high-temperature sterilization, maintaining stable performance without aging, deformation or leakage after repeated high-temperature disinfection.
- 6. Complete specifications and rich pressure grades are available for high-pressure reaction tanks, fermentation tanks and pressure storage tanks with wide industrial adaptability.
Working Principle
Based on the uniform stress characteristics of circular structure, the Pressure Round Manhole Cover forms a high-strength pressure-tight sealing layer by synchronous compression of surrounding handwheel bolts. It effectively offsets the outward tension of high-pressure medium inside the tank to achieve zero leakage and zero pressure relief during pressurized production. When maintenance and cleaning are required, the handwheels can be loosened evenly to remove the cover quickly for internal cleaning and upkeep, ensuring long-term safe, stable and closed operation of pressure vessels.
Why Choose KINGMAN
Pressure Requirements Reviewed
Share vessel pressure, opening size and material requirements before quotation so the sanitary pressure manway can be matched more closely to project conditions.
100% Final Inspection
Finished manways undergo final checks before shipment, supported by material, pressure, sealing and appearance verification across the production process.
Flexible Export Terms
EXW, FOB, CIF and CFR are available, with FCL, LCL and customer-appointed freight forwarders supported for international tank projects.
