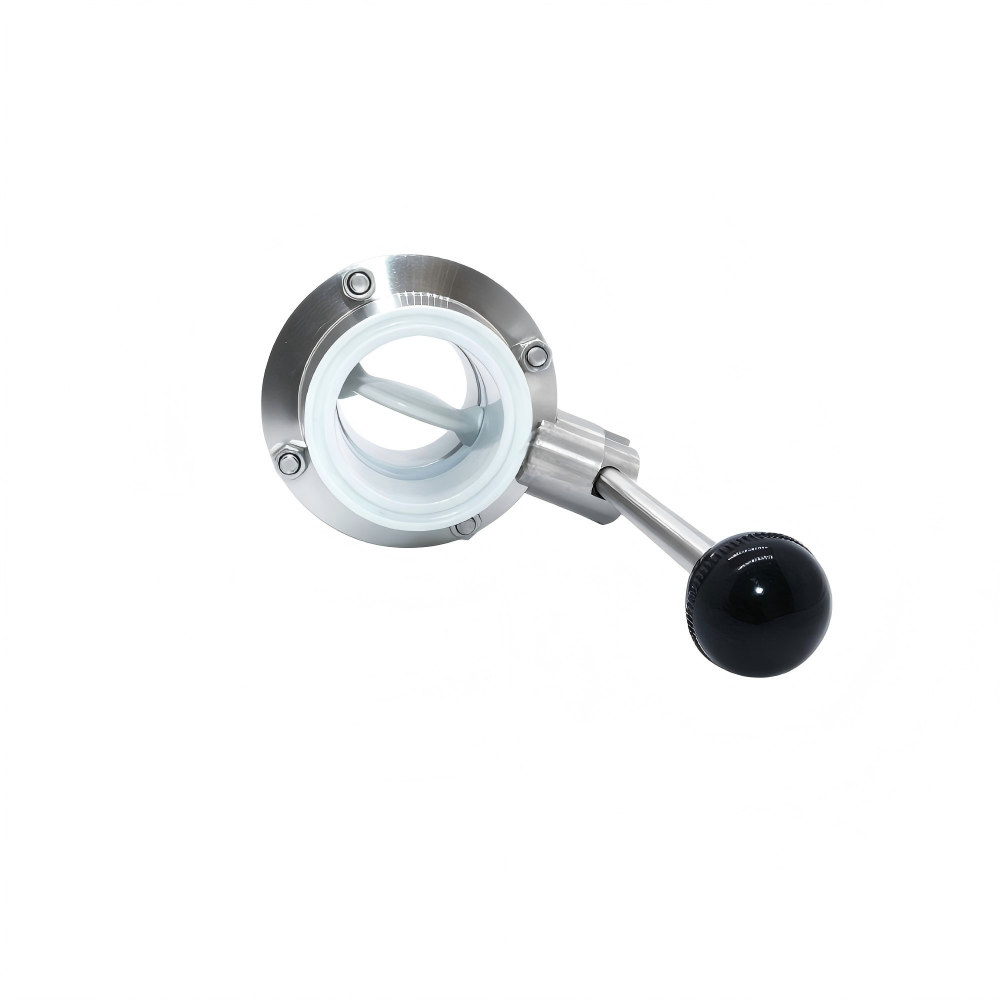

PFA Lined Fittings Butterfly valve
KINGMAN sanitary ined tri-clamp ball valve is a manual shut-off valve designed for corrosive hygienic pipelines. The valve body adopts high-quality 304/316L stainless steel. All medium-contact surfaces have two optional lining materials: PTFE lining or PFA lining. It uses sanitary tri-clamp quick connection for fast assembly and disassembly. PTFE lining delivers stable corrosion resistance and good cost performance for general corrosive working conditions. PFA lining has ultra-smooth inner surface, superior high-temperature resistance and non-stick property, suitable for high-temperature, high-purity and strict cleaning scenarios. Both lining materials can resist strong acid, strong alkali and various corrosive chemical media, and comply with CIP/SIP cleaning and sterilization standards. It is widely used in pharmaceutical, food and beverage, fine chemical, new energy and environmental protection industries for on-off control of corrosive fluid pipelines.
Specifications
| Parameter | Value |
|---|---|
| Product Name | PFA Lined Valves |
| Product Type | PFA Lined Ball Valve / PFA Lined Diapharagm Valve / PFA Lined butterfly valve |
| Material | 304/316L+PFA,304/316L+FEP,304/316L+PTFE |
| Sizes | 1“~4” |
| Connection Standard | 3A / DIN / ISO / BPE |
| Connection Type | Clamp / Flange Non-standard products can be customized in accordance with customer requirements. |
Features
- Double lining optional (PTFE / PFA), wide working condition coverage. The valve provides two independent lining solutions. PTFE lining delivers stable anti-corrosion performance and high cost performance for conventional acid-base media. PFA lining has ultra-high surface smoothness, better high-temperature resistance and anti-adhesion performance, solving the problems of material sticking and high-temperature aging, suitable for high-purity and high-temperature corrosive environments.
- Full fluorine-lined wetted parts, comprehensive anti-corrosion ability. The valve plate and valve body sealing surface are fully lined with fluorine material. The stainless steel body is completely isolated from corrosive media, effectively avoiding chemical erosion, oxidation and rust. It greatly improves the service life of the valve in harsh chemical pipelines.
- Ultra-smooth inner wall, compliant with hygienic CIP/SIP standards. Both PTFE and PFA linings feature low friction coefficient and non-residue performance. The smooth flow surface prevents medium adhesion, scaling and dead-angle accumulation. It can be thoroughly cleaned during online cleaning, fully meeting hygienic production and sterile sterilization requirements.
- Standard sanitary tri-clamp quick connection, easy installation and maintenance. Adopts universal sanitary quick-clamp interface without welding. It can be quickly installed and disassembled on site, perfectly compatible with standard sanitary pipe fittings. It is convenient for pipeline upgrading, equipment debugging and daily maintenance.
- Compact streamline structure, low flow resistance. Optimized butterfly plate streamline design reduces fluid turbulence and pressure loss during operation. The valve opens smoothly with large flow rate, ensuring stable and efficient fluid delivery without affecting pipeline flow efficiency.
- Integrated lining molding process, firm and durable. PTFE or PFA lining is integrally molded and closely combined with the stainless steel substrate. No peeling, bubbling or falling off under normal and high-temperature working cycles. The overall structure is stable and durable for long-term continuous operation.
Working Principle
This sanitary PTFE/PFA lined tri-clamp butterfly valve relies on manual handle rotation to drive the internal fluorine-lined butterfly plate to rotate synchronously. When the handle rotates 90 degrees to make the fluorine-lined butterfly plate parallel to the fluid direction, the flow channel is fully opened, and the corrosive medium smoothly passes through the PTFE or PFA lined inner wall of the sanitary lined butterfly valve. When the handle rotates reversely by 90 degrees, the butterfly plate is perpendicular to the pipeline direction, and the fluorine-lined plate tightly presses against the fluorine-lined sealing surface of the valve body. Relying on the flexible fitting performance of the fluorine material, the flow passage is completely blocked, realizing reliable shut-off and effective isolation of corrosive media.
Why Choose KINGMAN
PTFE and PFA Lining Options
Choose the lining around corrosive media, temperature and purity requirements instead of being limited to one fluoropolymer solution.
Custom Valves in 7–15 Days
Non-standard PFA lined ball valves typically require 7–15 working days after specifications are approved, giving chemical projects a clearer sourcing schedule.
3A, DIN, ISO and BPE Options
Connection and dimensional requirements can be matched around common hygienic standards for pharmaceutical, fine-chemical and high-purity piping projects.
