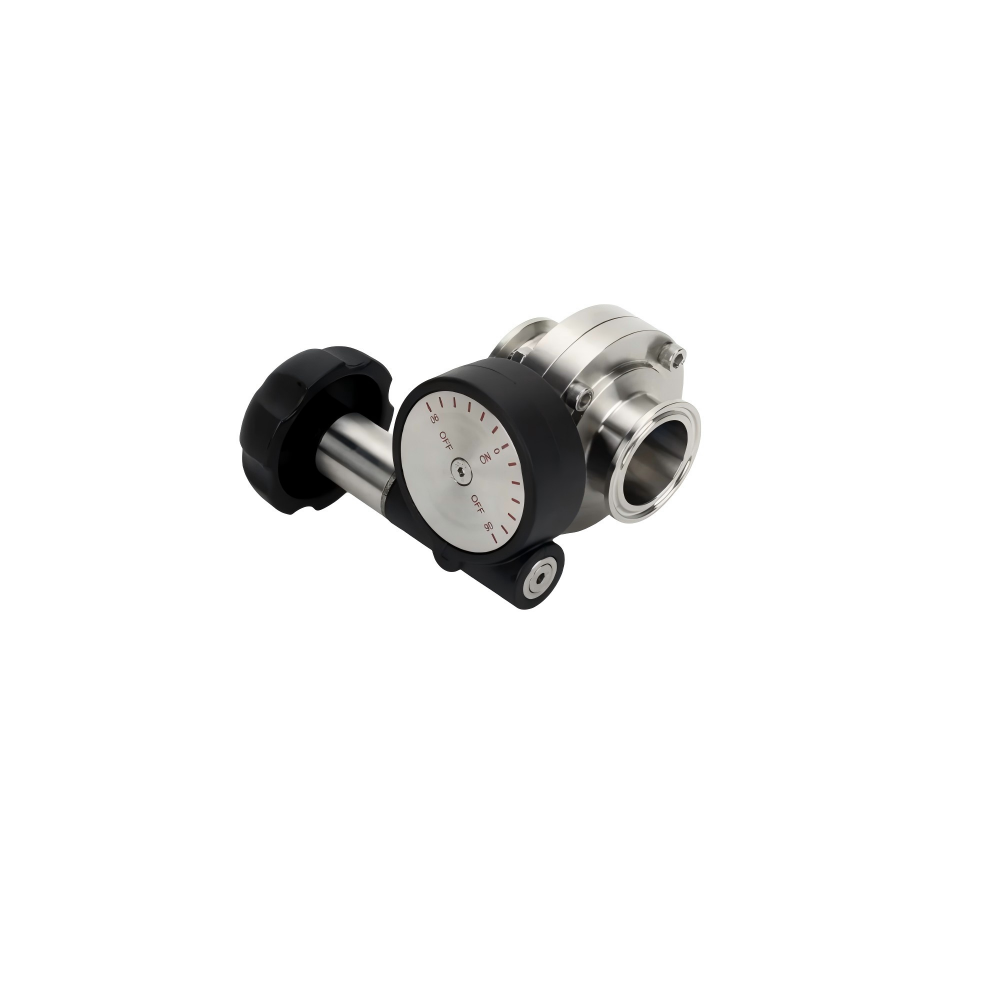

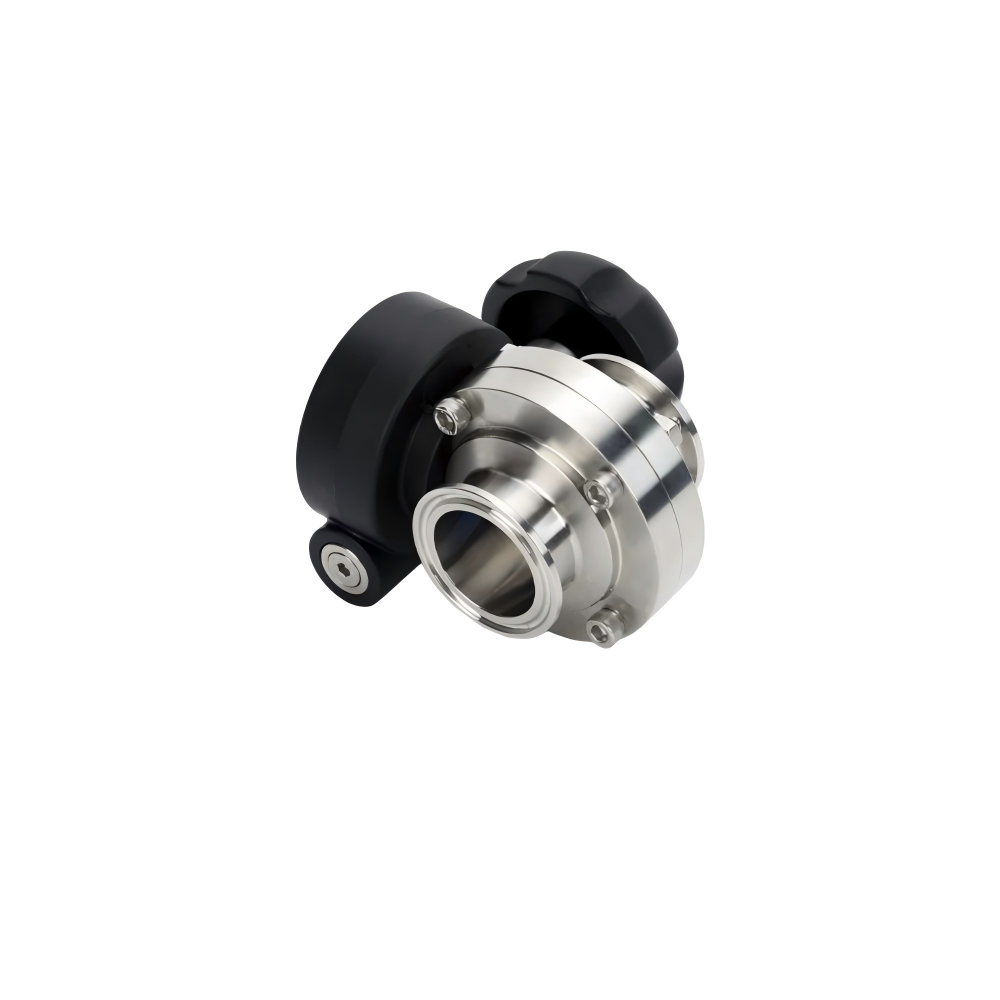

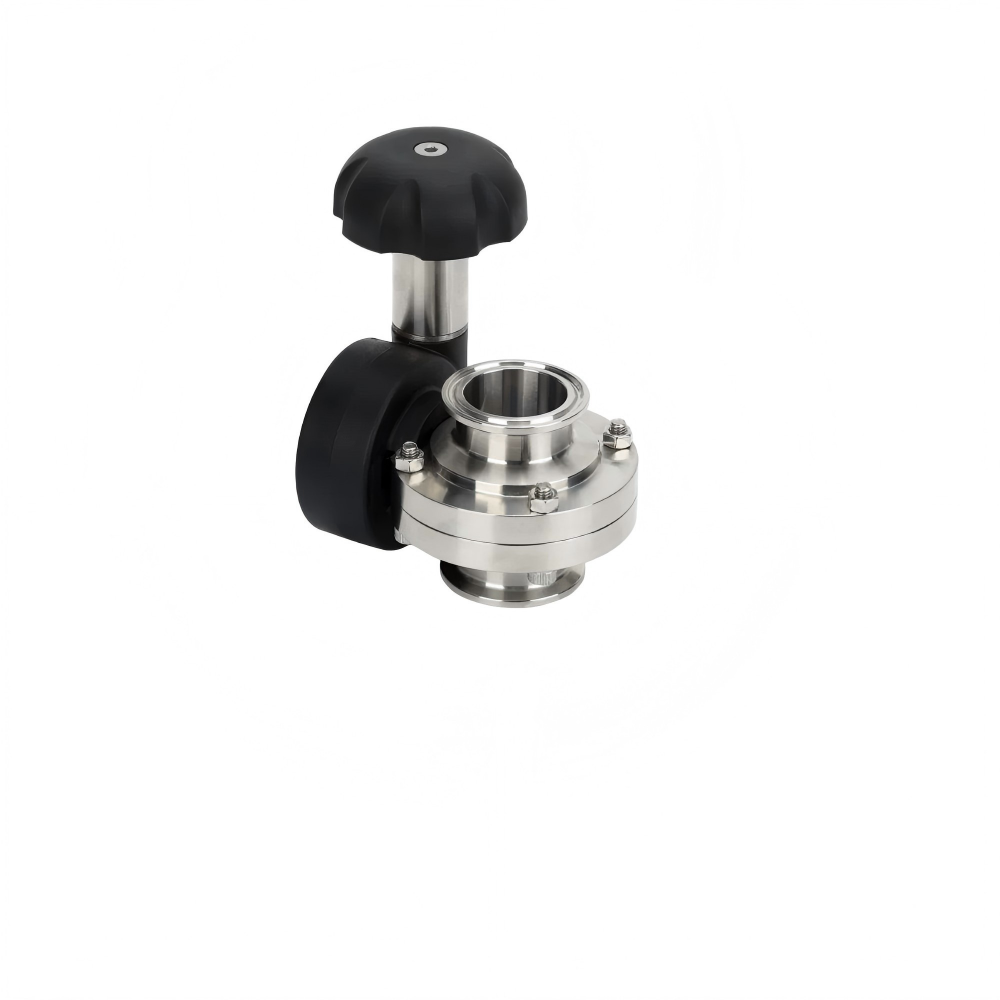

Fine Adjustment Butterfly Valve
KINGMAN sanitary Fine Adjustment Butterfly Valve is widely used in food, beverage, dairy, biopharmaceutical and fine chemical sanitary piping systems. It adopts tri-clamp quick connection for easy installation and disassembly. Equipped with manual fine-adjustment handwheel, it can realize precise flow regulation and on-off control. The polished stainless steel body meets high hygienic standards and supports CIP online cleaning.
Specifications
| Parameter | Value |
|---|---|
| Product Type | Fine Adjustment Butterfly Valve |
| Size Range | DN15–DN200 (approx. 1/2"–8") |
| Body & Disc Material | 304 / 316L stainless steel (AL6XN, Hastelloy, Alloy 22 available on request) |
| Seal Material | EPDM (standard); PTFE / FKM (Viton) / Silicon (optional — please confirm) |
| Working Temperature | 130 °C |
| Max. Working Pressure | 1000 kPa (10 Bar) for DN15–DN100; 800 kPa (8 Bar) for DN125–DN150 |
| Min. Working Pressure | Full vacuum (with EPDM seal) |
| Connection Standard | 3A / SMS / DIN / ISO / RJT / IDF /ASME BPE |
| Connection Type | Tri-Clamp / Weld / Threaded / Flange (please confirm) |
| Certification | ISO 9001, 3A,CE,EAC,health wading license |
Features
- Manual fine-adjustment handwheel design, can lock butterfly plate angle stably for continuous flow control.
- Sanitary polished stainless steel valve body, smooth surface, less residue, easy cleaning.
- Tri-clamp quick connection structure, convenient for disassembly, inspection and maintenance.
- Food-grade hygienic sealing ring, good compression resistance, suitable for medium such as water, liquid and dilute slurry.
- Simple flow channel, low fluid resistance, compact structure and small occupied space.
- Wide working temperature range, compatible with hot water and cleaning fluid for CIP process.
Working Principle
Sanitary Fine-adjustment Tri-clamp Butterfly Valve: Rotate the top handwheel to drive valve stem and butterfly plate to rotate within 0~90°. When butterfly plate is parallel to pipeline, the valve is fully open for maximum flow. When butterfly plate rotates perpendicular to pipeline, the valve is fully closed to cut off medium. The fine-adjustment mechanism can fix butterfly plate at any intermediate angle to adjust flow rate. The sanitary sealing ring closely fits butterfly plate to prevent medium leakage. Tri-clamp ends form hygienic sealed joints with pipeline ferrules and gaskets.
Why Choose KINGMAN
Fine-Control Configuration
Fine adjustment butterfly valves can be matched to required sizes, sanitary connections and operating layouts, supporting process lines where manual flow setting matters more than simple open-close isolation.
Fast Drawing Validation
For non-standard requirements, drawings can move into prototype review within 72 hours, giving engineering teams an earlier check on dimensions before committing to larger quantities.
100% Final Inspection
Every completed valve receives final inspection before shipment, adding a defined quality checkpoint for buyers sourcing fine adjustment sanitary butterfly valves for controlled process applications.
